Appendix B. Accessories VFD-EL-W
201

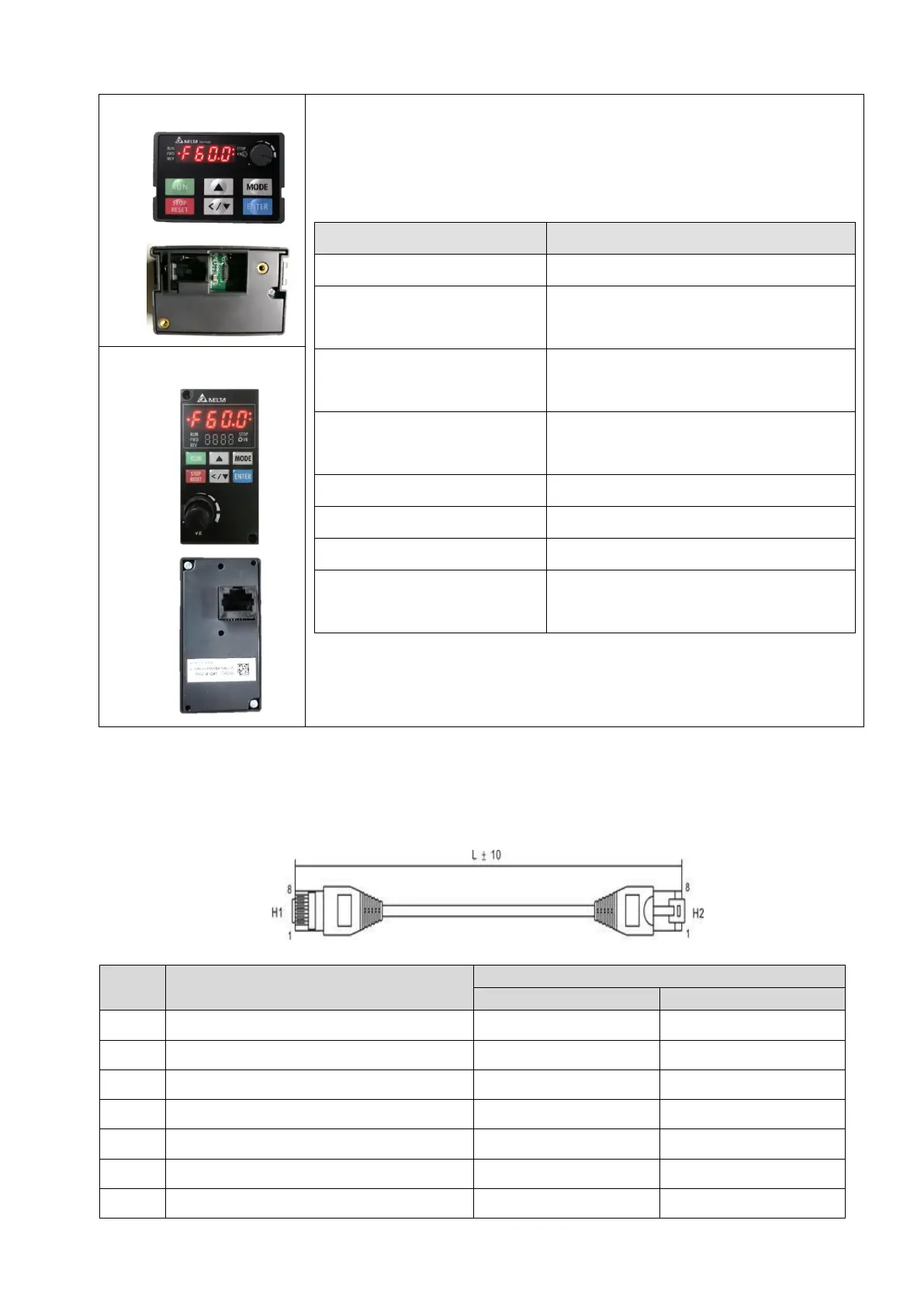

VFD-PU08 / VFD-PU08V Specification
VFD-PU08
Items
Description
Applicable VFD series
ME300 and VFD-EL-W
Communication Interface
RS485 (exclusive mode), the host cannot
use this interface when occupying.
Installation
VFD-PU08 fixed by plastic hook or screw.
VFD-PU08V fixed by screws.
IP Level
Front panel: IP20.
Back panel: IP00.
Connector
RJ45
Max. length of extension cable
5m
Panel Display
4-digits display with decimal point
Core Functionality
Read and Write, status display, operation
instruction via RS485.
VFD-PU08V
NOTE:
The VFD-PU08 does not include the extension cord. Please choose the suitable extension cords as
needed. (Refer to the table below)
Communication cable
No.
Model Name
L
mm
inch
1
UC-CMC003-01A
300
11.8
2
UC-CMC005-01A
500
19.6
3
UC-CMC010-01A
1000
39.0
4
UC-CMC015-01A
1500
59.0
5
UC-CMC020-01A
2000
78.7
6
UC-CMC030-01A
3000
118.1
7
UC-CMC050-01A
5000
196.8
