Delta VFD110VL43A-J User Manual

A-8

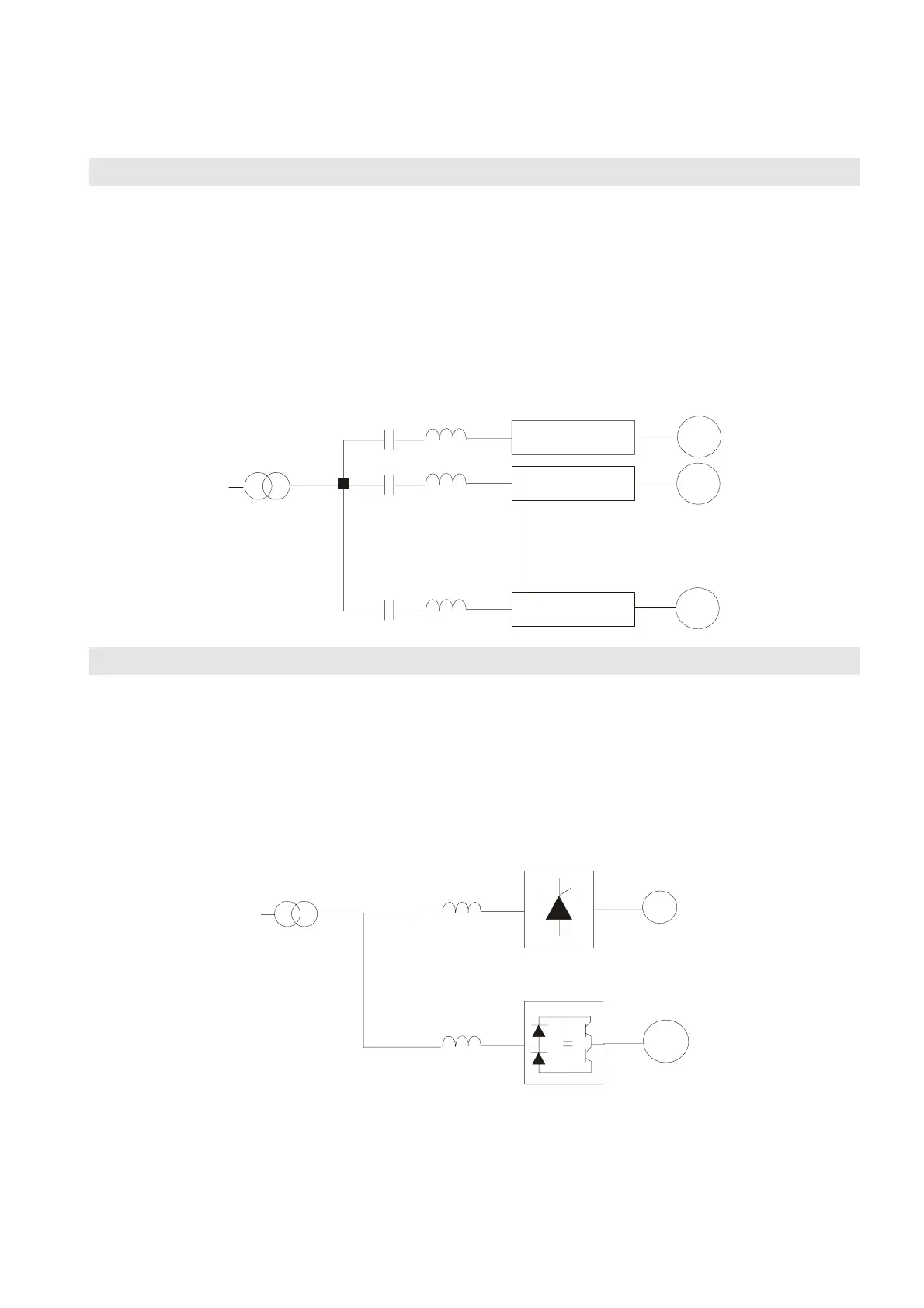

Application Example of AC Reactor
Connected in input circuit
Application 1
When more than one Hybrid servo drive is connected to the same mains power and one of them is ON
during operation.
Problem: When applying power to one of the Hybrid servo drive, the charge current of the capacitors
may cause voltage dip. The Hybrid servo drive may be damaged when over current occurs
during operation.
Correct wiring:
M1
M2
Mn
reactor
motor
motor
motor
Hybrid servo drive
Hybrid servo drive
Hybrid servo drive
Application 2
Silicon rectifier and Hybrid servo drive are connected to the same power.
Problem: Switching spikes will be generated when the silicon rectifier switches ON/OFF. These spikes
may damage the mains circuit.
Correct wiring:
DC
power
reactor
reactor
motor
silicon rectifier
Hybrid servo drive
