Delta VFD110VL43A-J User Manual

A-16

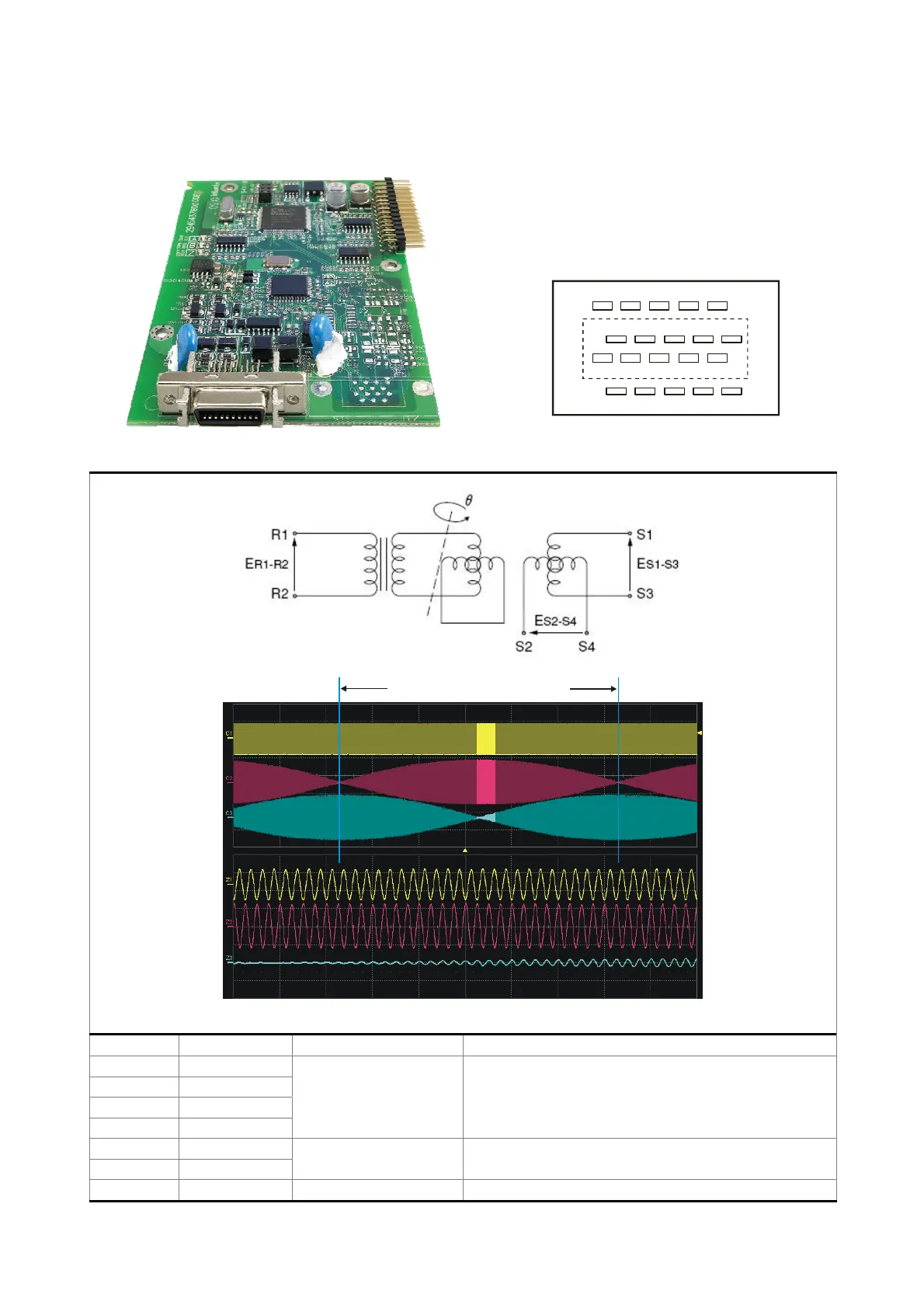

A-6 Speed Feedback PG Card Selection
EMVJ-PG01R/PG02R
11
2
1
12
10
9
8
20
19
Layout of J1 Drive Connector
Function of J1 Terminal
360
0
Pictures of (top-down) C1 “E
R1-R2
”, C2 “E
S1-S3
”, C3 “E
S2-S4
”
Pin No Terminal Mark Function, Description Specifications
4 SIN- (S4)
5 SIN+ (S2)
7 COS+ (S1)
9 COS- (S3)
Resolver Signal Output 3.5±0.175Vrms, 10kHz
14,16 REF+ (R1)
13,15 REF- (R2)
Resolver Power Input 7Vrms, 10kHz
Shield Shield

Delta VFD110VL43A-J Specifications

General

Brand	Delta
Model	VFD110VL43A-J
Category	Servo Drives
Language	English
