Delta VFD110VL43A-J User Manual

1-12

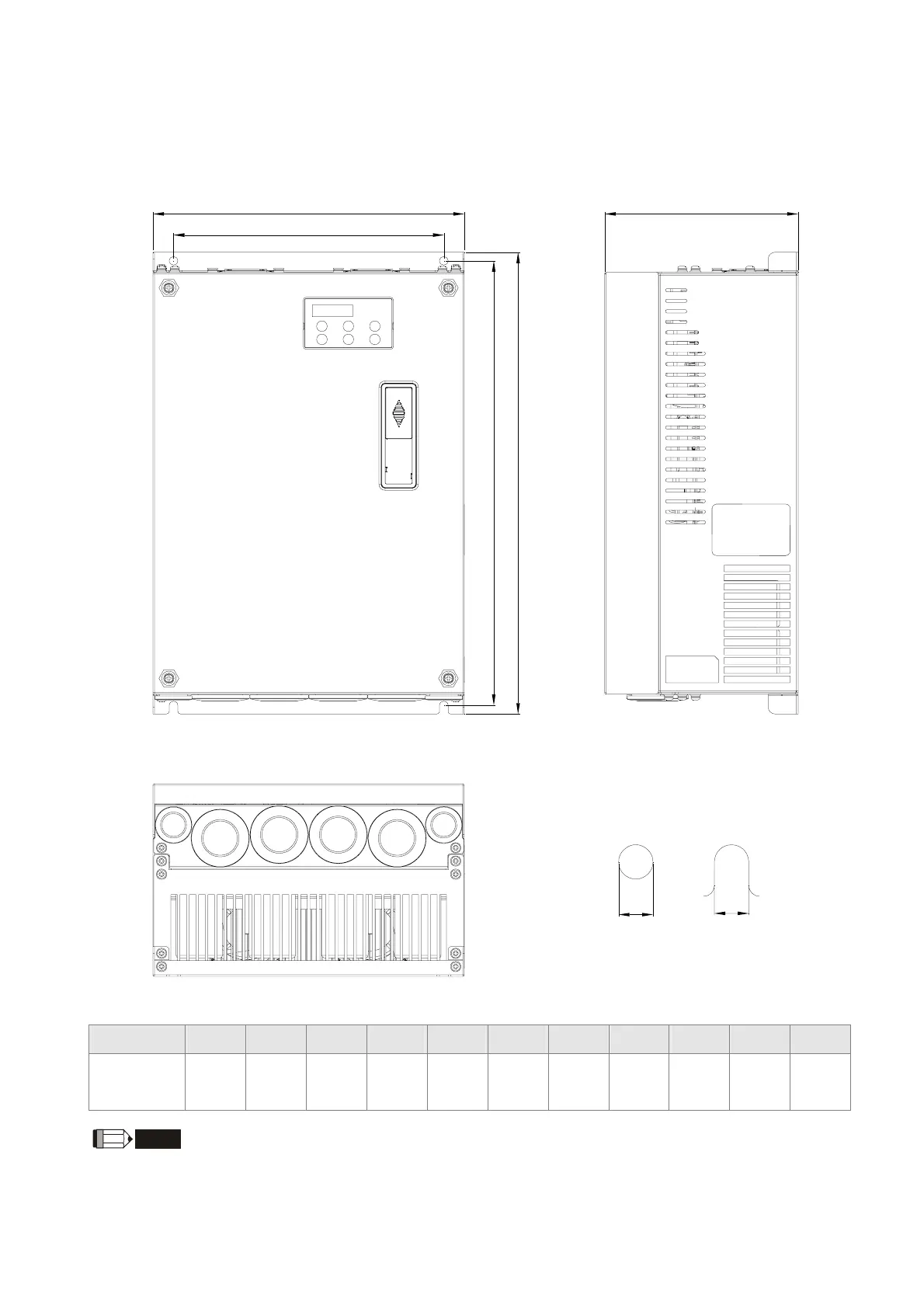

1-5 Product Dimensions
Frame No. C
W
W1
H1
H
D
S1
S1
Unit: mm [inch]
Frame No. W W1 H H1 H2 H3 D Ø Ø1 Ø2 Ø3
C
235
[9.25]
204
[8.03]
350
[13.78]
337
[13.27]
320
[12.60]
-
136
[5.35]
6.5
[0.26]
-
34
[1.34]
22
[0.87]
NOTE
Frame No. C: VFD055VL23A/43A-J, VFD075VL23A/43A-J, VFD110VL23A/43A-J,

Delta VFD110VL43A-J Specifications

General

Brand	Delta
Model	VFD110VL43A-J
Category	Servo Drives
Language	English
