3-1 Description of Control Panel

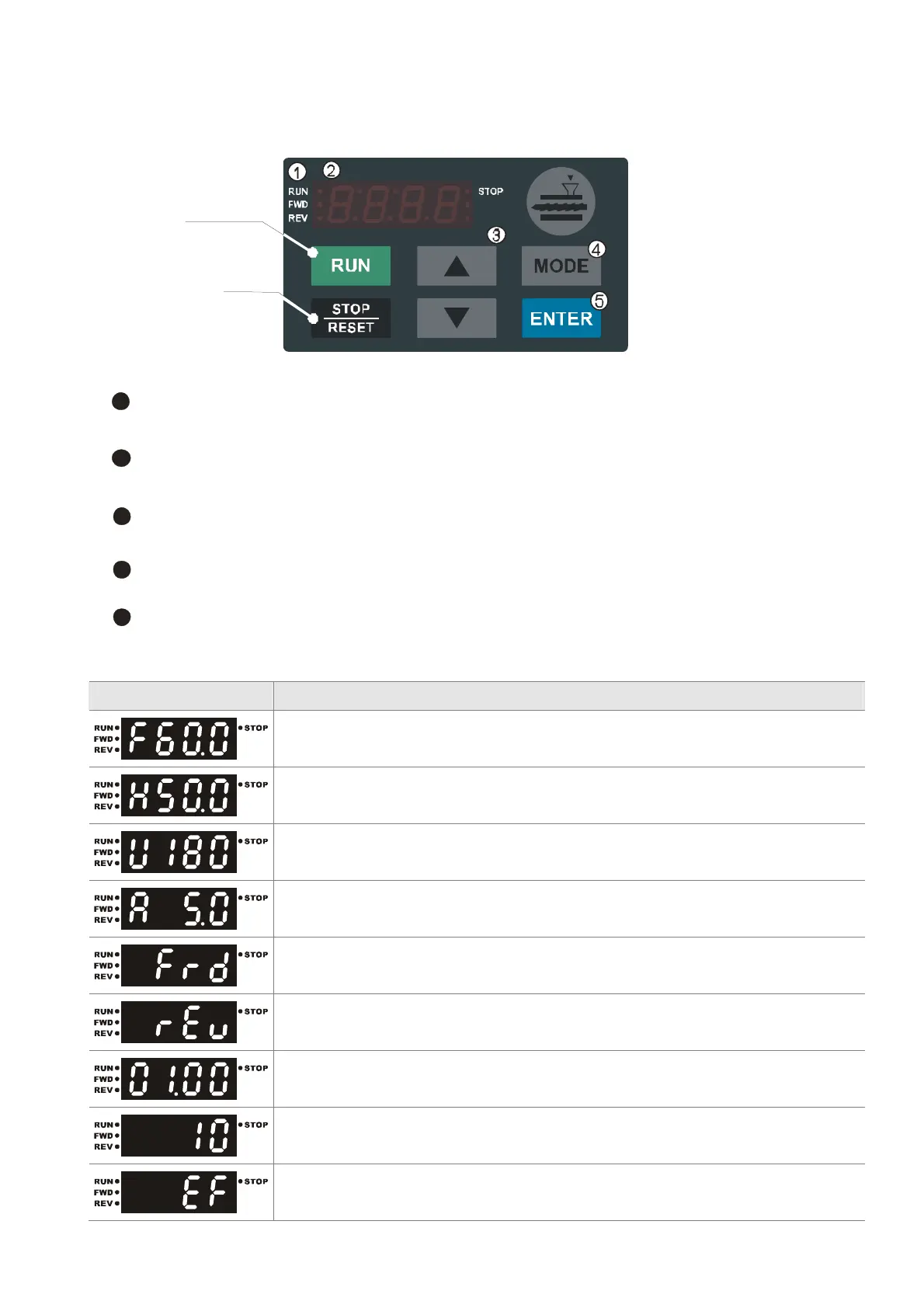

Appearance of Keypad Control Panel KPVJ-LE01
LED Display
Indicates frequency, voltage, current, user defined units and etc.
Status Display
Display the driver’s current status.
Stop/Reset key
Stop driver operation
and reset in case of
anomaly
Run key
start AC drive
operation
UP and DOWN Key
Set the parameter number and changes the numerical data, such as Master Frequenc
1
2
3
MODE
Change between different display mode.
ENTER
Used to enter/modify programming parameters.
4
5
Description of Displayed Function Items
Displayed Item Description
The current frequency set for the Hybrid servo drive
The frequency Hybrid servo drive actually delivers to the motor
The user-defined physical quantity (Parameter 00-04)
Load current
Forward command
Reverse command
Displays the selected parameter
Display the parameter value
Display the external fault
To Next Page
