Delta VFD110VL43A-J User Manual

1. Use and Installation
1-7

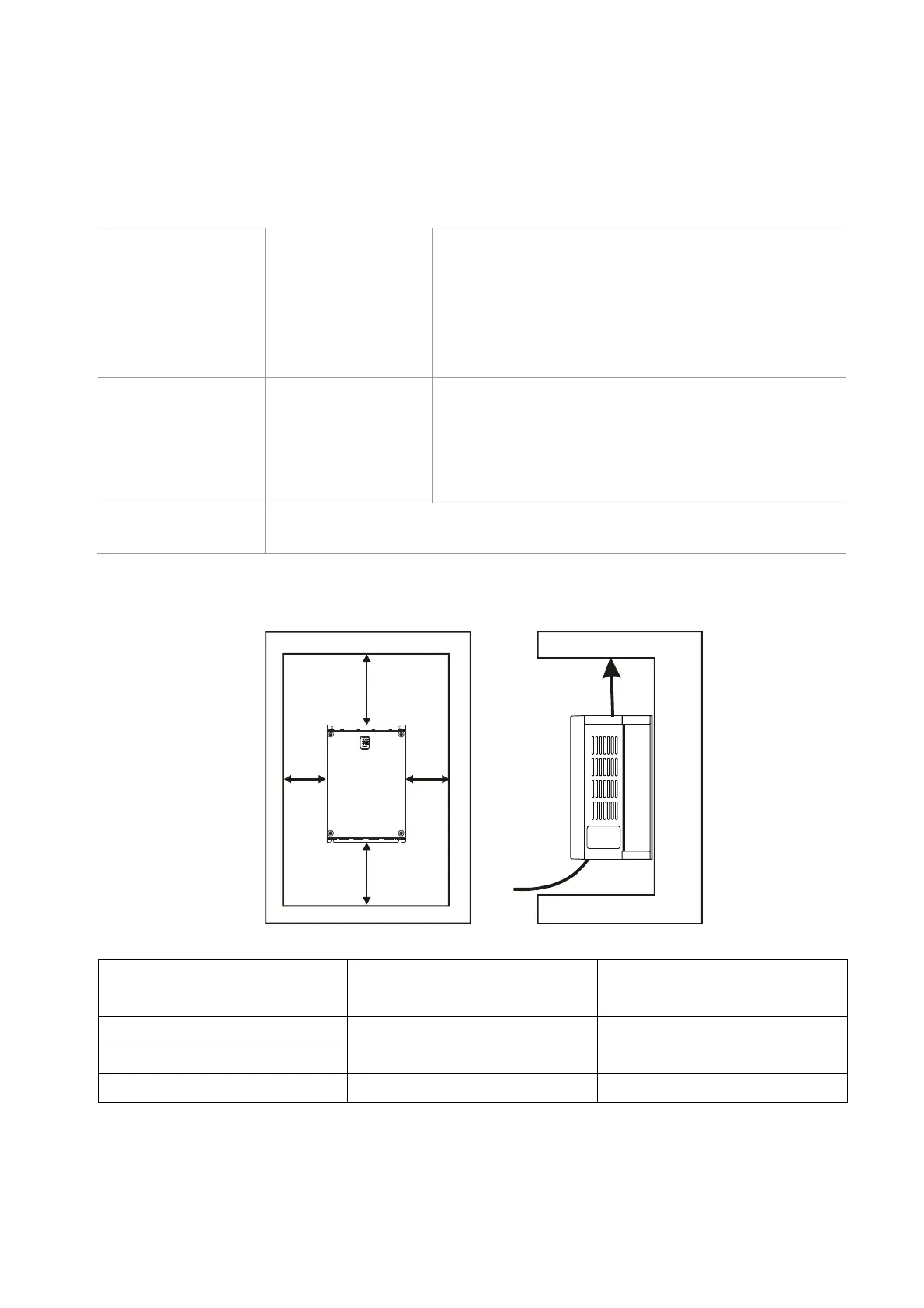

1-4 Product Installation
Please install the Hybrid servo drive under the following environmental conditions to ensure safety of
use:
Environmental
Condition for
Operation
Ambient temperature
Relative Humidity
Pressure
Installation Altitude
Vibration
-10
°
C~ +45
°
C
<90% (non-condensing)
86 ~ 106 kPa
<1000m
<20Hz: 9.80 m/s
2
(1G) max; 20~50H:5.88 m/s
2
(0.6G)
max
Environmental
Condition for Storage
and Transportation
Ambient temperature
Relative Humidity
Pressure
Vibration
-20
°
C~ +60
°
C (-4°F ~ 140°F)
<90% (non-condensing)
86 ~ 106 kPa
<20Hz: 9.80 m/s
2
(1G) max; 20 ~ 50Hz: 5.88 m/s
2
(0.6G) max
Contamination
Protection Level
Level 2: Applicable to factory environment with low-to-medium contamination
Space for Installation
H
Air Flow
H
W
W
HP
W
mm (inch)
H
mm (inch)
7.5-20HP
75 (3) 175 (7)
25-75HP
75 (3) 200 (8)
100HP
75 (3) 250 (10)
1. Mount the Hybrid servo drive vertically on a flat vertical surface object by screws. Other directions are
not allowed.
2. The Hybrid servo drive will generate heat during operation. Allow sufficient space around the unit for
heat dissipation.
