Delta VFD110VL43A-J User Manual

1. Use and Installation
1-13

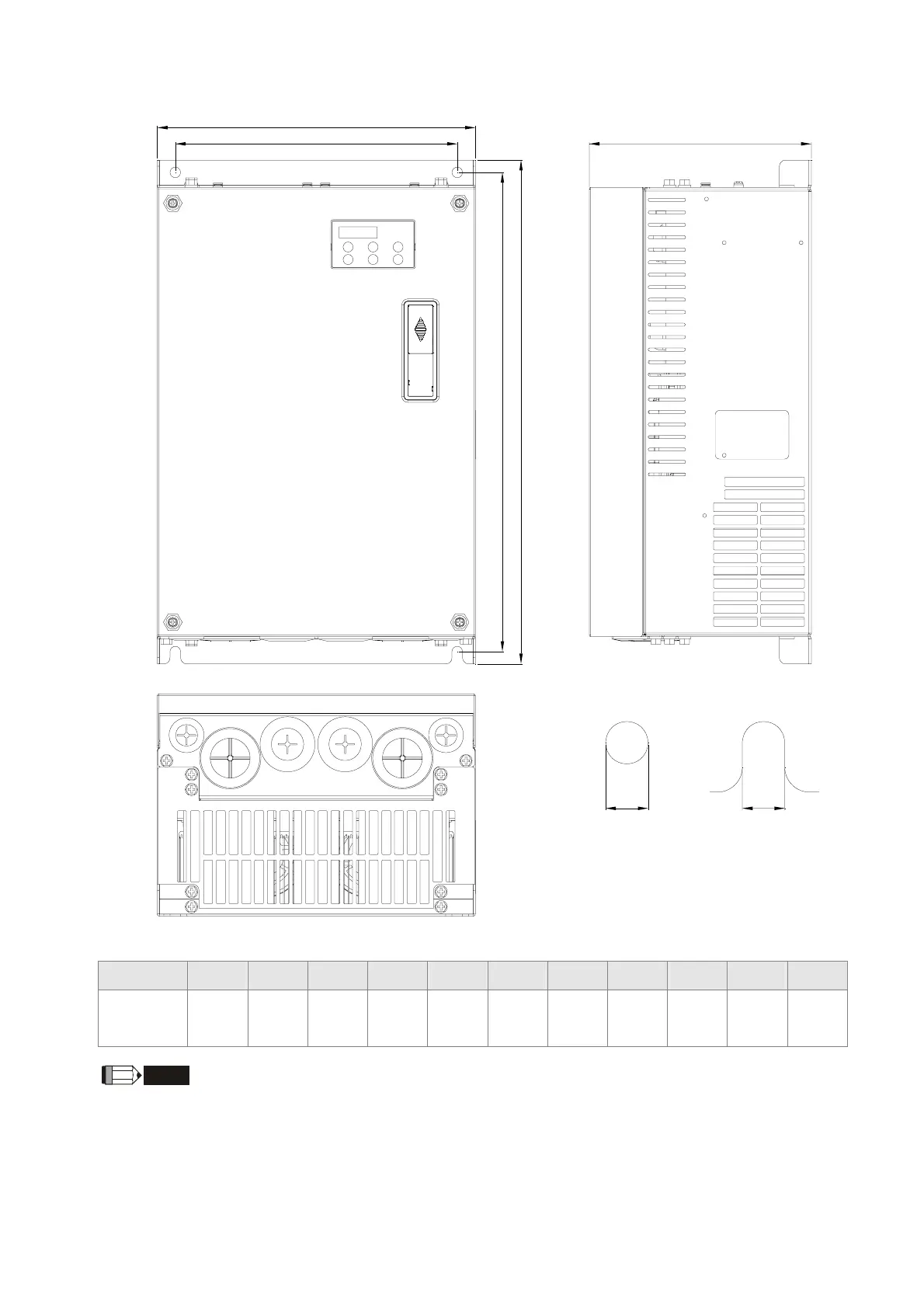

Frame No. D
DW1
W
H1
H
S1S1
Unit: mm [inch]
Frame No. W W1 H H1 H2 H3 D Ø Ø1 Ø2 Ø3
D
255.0
[10.04]
226.0
[8.90]
403.8
[15.90]
384.0
[15.12]
360.0
[14.17]
21.9
[0.86]
168.0
[6.61]
8.5
[0.33]
44
[1.73]
34
[1.34]
22
[0.87]
NOTE
Frame No. D: VFD150VL23A/43A-J, VFD185VL23A/43A-J, VFD220VL23A/43A-J,
