Delta VFD110VL43A-J User Manual

2. Wiring
2-9

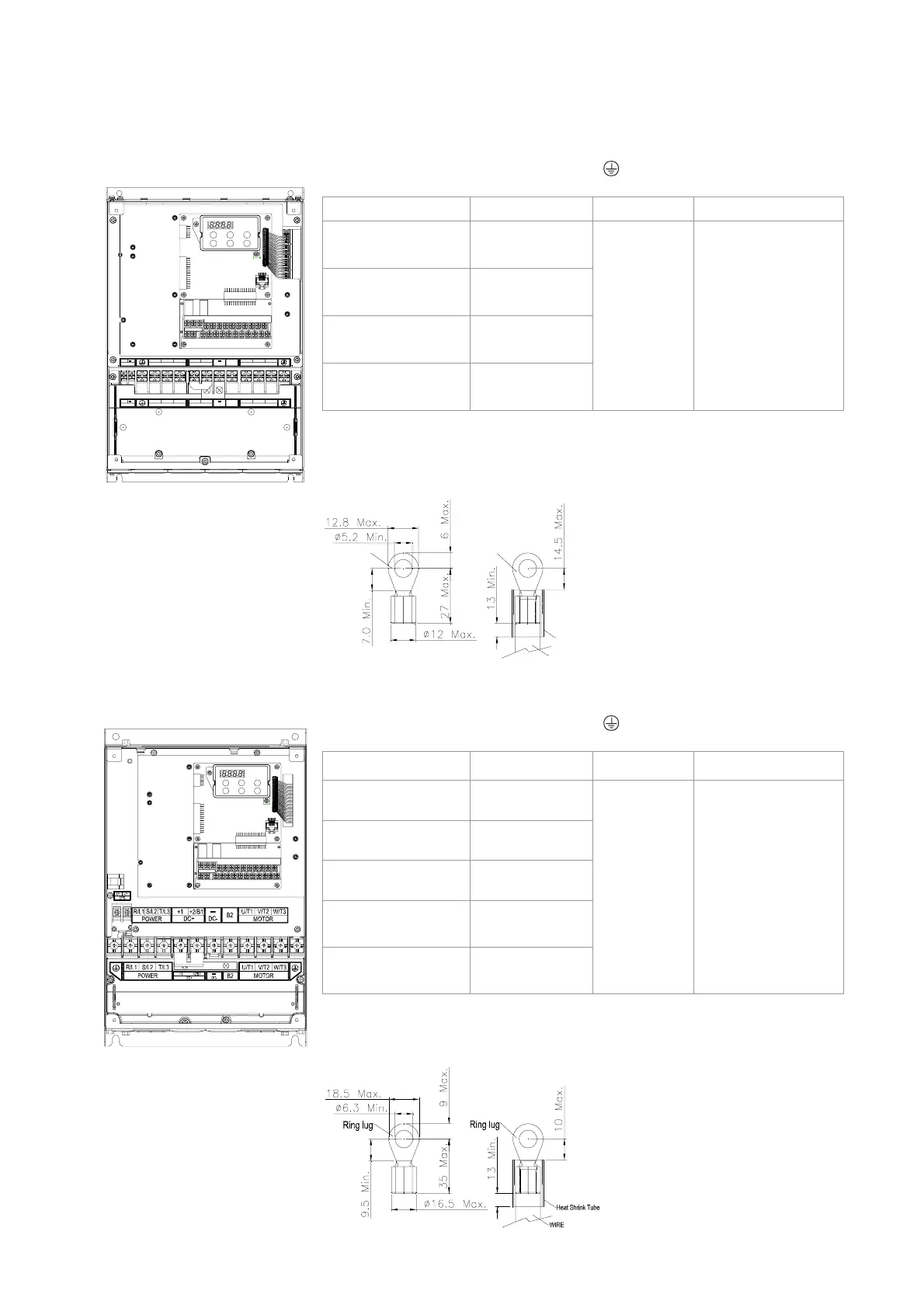

Specifications of the Terminals on the Main Circuit
Frame No. C
+/~ R/ L1 S/L2 T/L3
B2
+1
DC+ DC-
EPS
/~ U/T1
V/T2
W/T3
POWER
MOTOR
+2/B1
+/~ R/ L1 S/L2 T/L3
B2
+1
DC+
DC-
EPS
/~ U/T1 V/T2 W/T3
POWER MOTOR
+2/B1
Terminals on the main circuit:
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
, +1, +2/B1, -, B2
Model Wire Diameter Torque Wire Type
VFD055VL23A-J
VFD110VL43A-J
10-6 AWG.
(5.3-13.3mm
2
)
VFD055VL43A-J
VFD075VL43A-J
12-6 AWG.
(3.3-13.3mm
2
)
VFD110VL23A-J
6 AWG.
(13.3mm
2
)
VFD075VL23A-J
8-6 AWG.
(8.4-13.3mm
2
)
30kgf-cm
(26in-lbf)
Stranded copper
only，75°C
Wire Type: Stranded copper only, 75°C
The right figure below shows the specifications of the UL certified insulation heat
shrink tubing which can withstand 600V, YDPU2.
WIRE
Heat Shrink Tube
Ring lug
Ring lug
Frame No. D
Terminals on the main circuit:
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
, +1, +2, -
Model Wire Diameter Torque Wire Type
VFD150VL43A-J
VFD185VL43A-J
8-2 AWG.
(8.4-33.6mm
2
)
VFD150VL23A-J
4-2 AWG.
(21.1-33.6mm
2
)
VFD185VL23A-J
3-2 AWG.
(26.7-33.6mm
2
)
VFD220VL43A-J
6-2AWG
(13.3-33.6mm
2
)
VFD220VL23A-J
3-2AWG
(26.7-33.6mm
2
)
50Kgf-cm
(43.4 lbf-in)
Stranded copper
only，75°C
Wire Type: Stranded copper only, 75°C
The right figure below shows the specifications of the UL certified insulation heat
shrink tubing which can withstand 600V, YDPU2.
