11
ENGLISH
Connecting Other Sources
ENGLISH

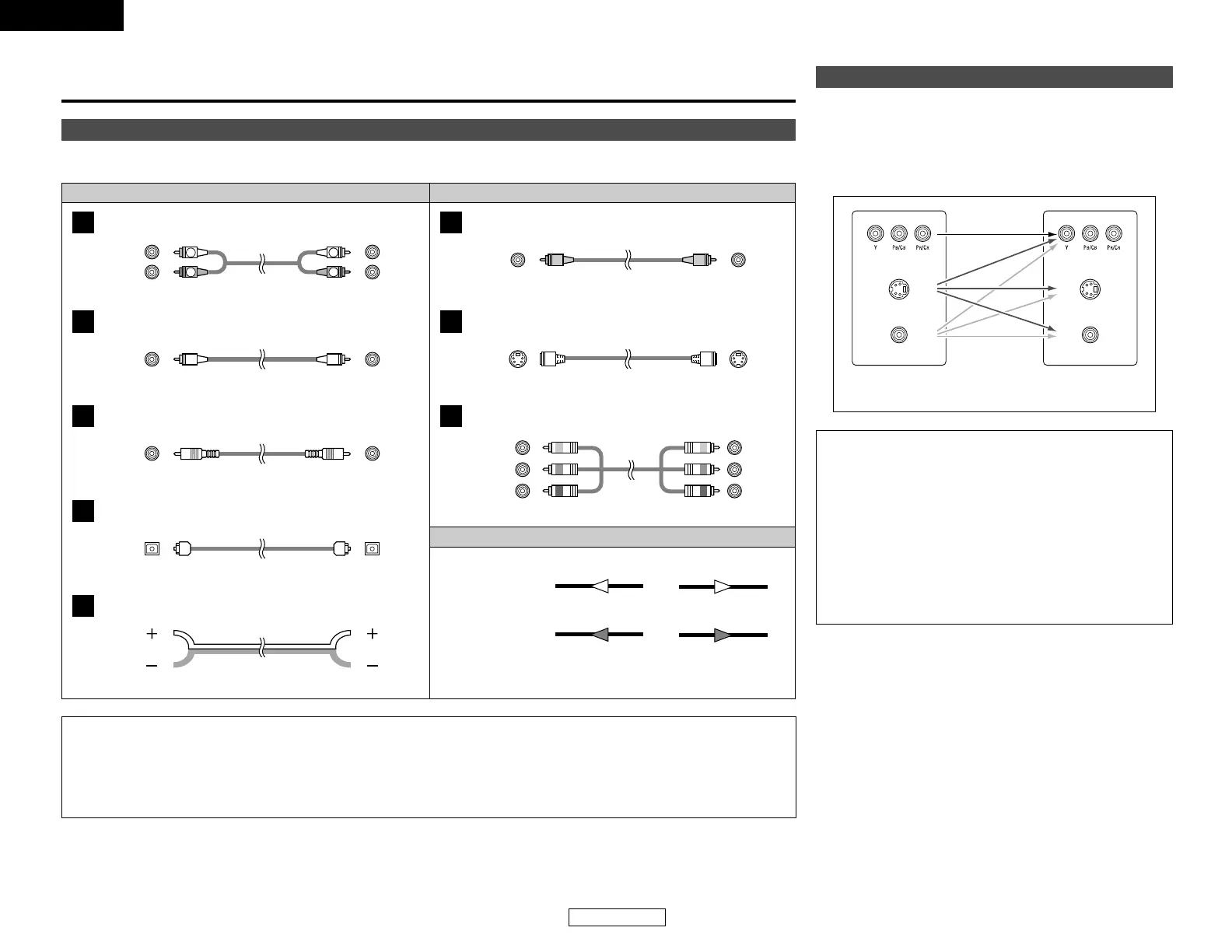

Cable indications
Signal direction
The hookup diagrams on the subsequent pages assume the use of the following optional connection cables (not supplied).
Video cableAudio cable
NOTE:
• Do not plug in the power supply cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Note that binding pin-plug cables together with power supply cords or placing them near a power transformer will result in hum
or other noise.
Analog terminal (Stereo)
A
(Orange)
Pin-plug cable
Analog terminal (Monaural, for subwoofer)
B
Pin-plug cable
Digital terminal (Coaxial)
C
Coaxial cable (75 Ω/ohm pin-plug cable)
Digital terminal (Optical)
D
Optical cable (Optical fiber cable)
Speaker terminal
E
Speaker cable
Video terminal
F
Video cable (75 Ω/ohm video pin-plug cable)
S-Video terminal
G
S-Video cable
(Yellow)
Audio signal
Video signal
(White)
(Red)
Component video terminal
H
Component video cable
(Y)
(P
B/CB
)
(P
R/CR)
(Green)
(Blue)
(Red)
IN OUT OUT IN
IN OUT OUT IN
Connecting Other Sources
With the AVR-1706, the Video signal and the S-Video signal which
were inputted are mutually converted. And also the Video signal
and the S-Video signal which were inputted are converted into a
higher quality.
The flow of the video signals.
This unit’s input
terminals
This unit’s output
terminals
(S-Video terminal)
(Video terminal)
The video conversion function
(Component video
terminals)
(Component video
terminals)
(S-Video terminal)
(Video terminal)
Cautions on the video conversion function:
When the component video terminals are used to connect the
AVR-1706 with a TV (or monitor, projector, etc.) and the video
(yellow) or S-Video terminals are used to connect the AVR-
1706 with a VTR, depending on the combination of the TV and
VTR the picture may flicker in the horizontal direction, be
distorted, be out of sync not display at all when playing video
tapes.
If this happens, connect a commercially available video
stabilizer, etc., with a TBC (time base corrector) function
between the AVR-1706 and the VTR, or if your VTR has a TBC
function, turn it on.
To Next Page
