Denon AVR-1706 Operating Instructions

ENGLISH
ENGLISH
15
Connecting Other Sources Connecting Other Sources
• When the power amplifier is assigned to the ZONE2 output channel at “Power Amp
Assignment”, the surround back speaker terminals can be used as the ZONE2 speaker out
terminals ( page 35).
• The connections diagram below is an example for when the surround back speaker is assigned
to the ZONE2 stereo 2 channel.
In this case, surround back speaker out can not be used for MAIN ZONE.

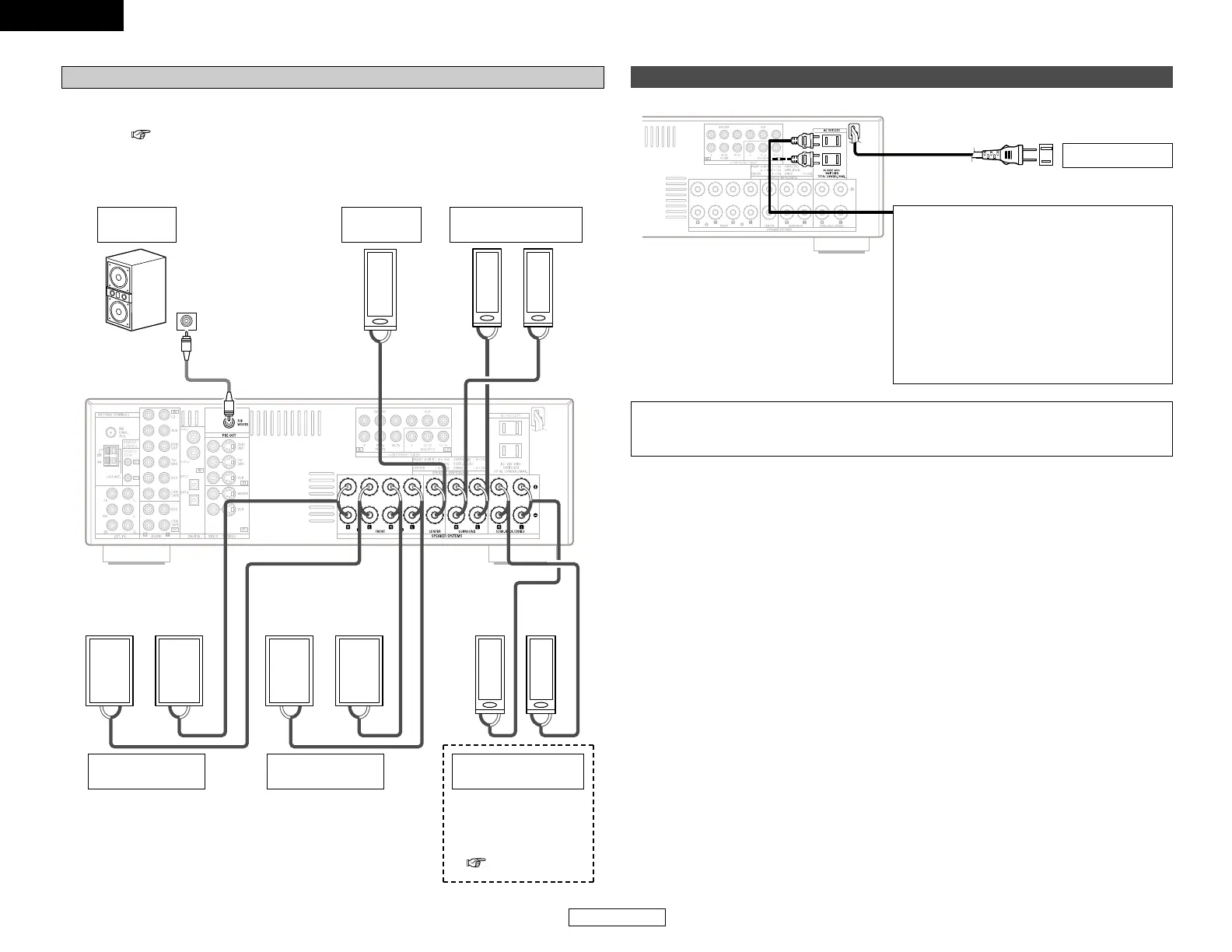

ZONE2 speaker out connections
><<>><<>
><
><><
><><
IN
(
L
) (
R
)
(
L
) (
R
)
(
L
) (
R
) (
L
) (
R
)
Connection terminal
for subwoofer with
built-in amplifier
(subwoofer), etc.
Surround speaker
systems
Subwoofer
Front speaker
systems (B)
Front speaker
systems (A)
Center
speaker
ZONE2 speaker
systems
NOTE:
• The settings must be
changed to use this
speaker for ZONE2
( page 43).
Connecting the power supply cord
AC 120 V, 60 Hz
AC outlet (Wall)
NOTE:
• Only use the AC OUTLETS for connecting audio equipment. Never use it for hair driers, TVs
or other electrical appliances.
AC OUTLETS
• SWITCHED (total capacity – 120 W (1 A.))
The power to this outlet is turned on and off
in conjunction with the POWER switch on the
main unit, and when the power is switched
between on and standby from the remote
control unit.
No power is supplied from this outlet when
this unit’s power is at standby. Never connect
equipment whose total power consumption
exceeds 120 W (1 A.).

Denon AVR-1706 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Composite video out	2
Component video (YPbPr/YCbCr) out	1
AC (power) in	Yes
Composite video in	4
Component video (YPbPr/YCbCr) in	3
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz
Optical drive included	No
Product color	Black
Audio decoders	DTS 96/24, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital EX, Dolby Pro Logic IIx
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	11.3 g
