Denon AVR-1706 Operating Instructions

13
ENGLISH
ENGLISH

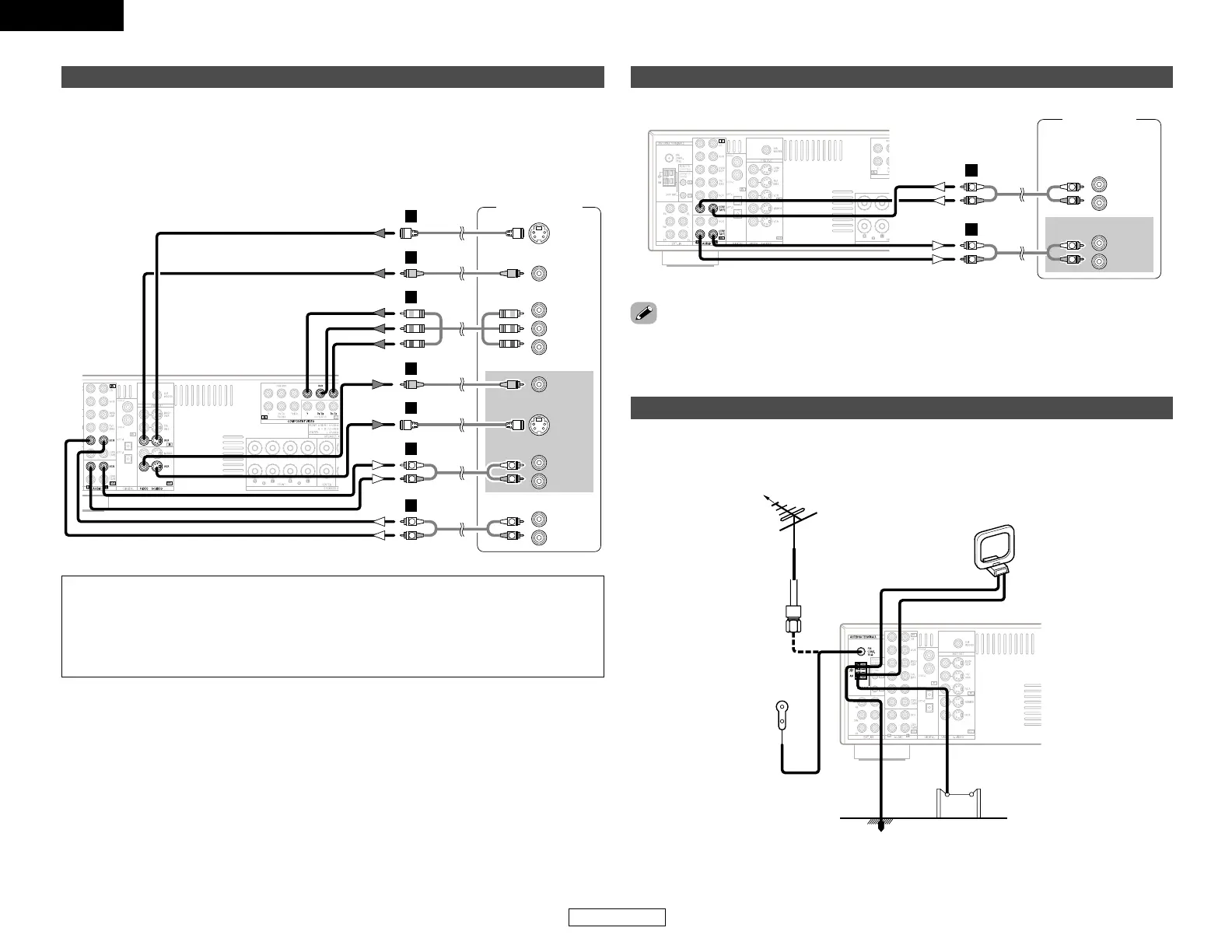

Connecting Other Sources Connecting Other Sources
Connecting a VCR
Video deck
S VIDEO
OUT
S VIDEO
IN
R
L
AUDIO IN
R
L
AUDIO OUT
VIDEO
OUT
VIDEO
IN
R
L
R
L
F
F
G
G
A
R
L
R
L
A
COMPONENT VIDEO OUT
Y
P
B
PR
H
• For best picture quality choose the component video connection to your VCR. S-Video and
composite video outputs are also provided.
• If you wish to perform analog dubbing from a digital source, such as a DVD recorder to an analog
recorder such as a cassette deck, you will need to connect the analog inputs and outputs as
shown below, in addition to the digital audio connections.
NOTE:
• When recording to a VCR recorder, it is necessary that the type of cable used with the
playback source equipment be the same type that is connected to the AVR-1706 VCR
OUTPUT terminal.
Example: VCR IN → S-Video cable : VCR OUT → S-Video cable
VCR IN → Video cable : VCR OUT → Video cable
Connecting a tape deck, CD recorder or MD recorder
R
L
AUDIO OUT
R
L
AUDIO IN
Tape deck /
CD recorder /
MD recorder
R
L
R
L
A
R
L
R
L
A
• If humming noise is generated, move the tape deck further away from the source of such noise.
Direction of broadcasting
station
75 Ω/ohm
COAXIAL cable
FM antenna
FM indoor antenna
(Supplied)
AM loop antenna
(Supplied)
AM outdoor antenna
Ground
An FM antenna cable plug can be connected directly to the unit.
Connecting the antenna terminals

Denon AVR-1706 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Composite video out	2
Component video (YPbPr/YCbCr) out	1
AC (power) in	Yes
Composite video in	4
Component video (YPbPr/YCbCr) in	3
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz
Optical drive included	No
Product color	Black
Audio decoders	DTS 96/24, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital EX, Dolby Pro Logic IIx
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	11.3 g
