Denon AVR-1706 Operating Instructions

21
ENGLISH

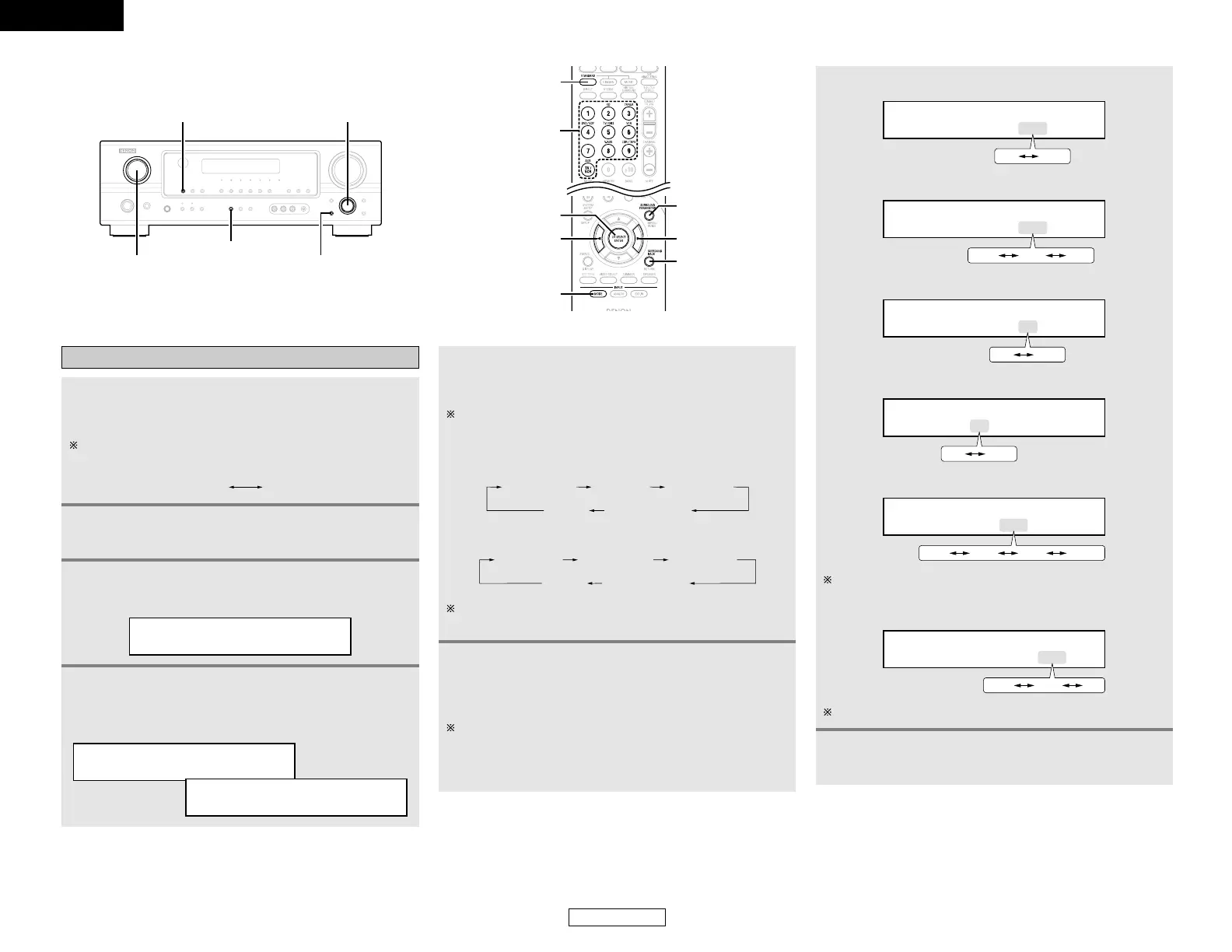

Basic Operation Basic Operation
ENGLISH
STANDARD
INPUT SELECTOR
SURROUND PARAMETER
INPUT MODE SELECT
ENTER
STANDARD
INPUT MODE
SURROUND
BACK
SURROUND
PARAMETER
INPUT
SELECTOR
CURSOR
F
CURSOR G
DTS NEO:6 mode
1
Press the STANDARD button to select the DTS
NEO:6 mode.
The mode switches as shown below each time the button
is pressed.
DTS NEO:6DOLBY PLIIx
Play a program source.
2
5
Press the SURROUND PARAMETER button to
select the various parameters.
The mode switches as shown below each time the button is
pressed.
• When the Cinema mode:
If you do want the bass and treble to be adjusted, turn off
the tone defeat mode.
MODE CINEMA
CINEMA EQ
DEFAULT
SURROUND BACK
TONE DEFEAT
MODE MUSIC
CENTER IMAGE
SURROUND BACK
TONE DEFEAT
DEFAULT
• When the Music mode:
6
Turn the SELECT knob, and press the CURSOR
FF
or
GG
button to set the various surround
parameters.
When the surround parameters are set using the buttons on
the main unit, stop operating the buttons after completing
the settings. The settings are automatically finalized and the
normal display reappears after several seconds.
• TONE DEFEAT setting
TONE DEF. ON
ON OFF
• SURROUND BACK SPEAKER setting
SB : ON
ON OFF
• D. COMP. setting
D.COMP. OFF
OFF LOW MID HIGH
DEFAULT Y/N
YES Y/N NO
This parameter is displayed during DOLBY DIGITAL playback.
• DEFAULT setting
Select “YES” to reset to the factory defaults.
7
Press the ENTER button to finish the surround
parameter mode.
• CENTER IMAGE setting
C.IMAGE 0.3
0.0 0.3 1.0
4
Turn the SELECT knob, and press the CURSOR
FF
or
GG
button to select the optimum mode for
the source.
MODE cinema
MODE music
3
Press the SURROUND PARAMETER button to
select the surround parameter mode.
MODE cinema
• CINEMA EQ setting:
CINEMA EQ OFF
ON OFF

Denon AVR-1706 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Composite video out	2
Component video (YPbPr/YCbCr) out	1
AC (power) in	Yes
Composite video in	4
Component video (YPbPr/YCbCr) in	3
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz
Optical drive included	No
Product color	Black
Audio decoders	DTS 96/24, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital EX, Dolby Pro Logic IIx
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	11.3 g
