Denon AVR-1706 Operating Instructions

12
ENGLISH
ENGLISH
Connecting Other Sources Connecting Other Sources

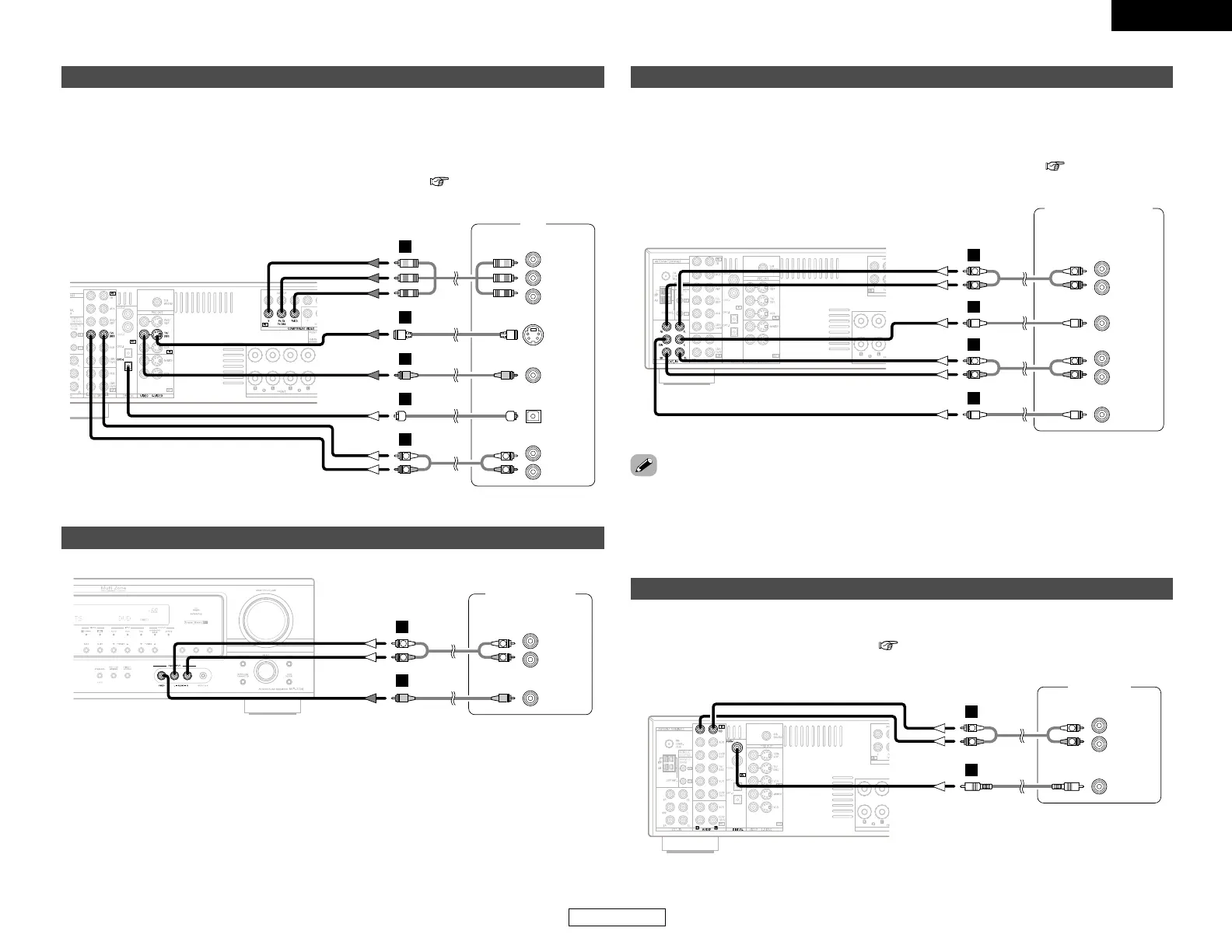

Connecting a TV/DBS tuner
F
G
A
TV
S VIDEO
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P
B
PR
OPTICAL
OUT
R
L
R
L
H
D
• For best picture quality choose the component video connection to your TV or DBS tuner. S-Video
and composite video inputs are also provided if your TV or DBS tuner does not have component
video outputs.
• To connect the digital audio output from the TV or DBS tuner, you can choose from either the
coaxial or optical connections. If you choose to use the coaxial connection, it needs to be
assigned. For more information about Digital Input Assignment ( page 42).
Connecting a video camera or video game
Video camera /
Video game
R
L
AUDIO OUT
VIDEO
OUT
R
L
R
L
A
F
Connecting the external inputs (EXT. IN) terminals
DVD Audio-Video /
Super Audio CD player /
External decoder
R
FRONT
L
5.1ch AUDIO OUT
CENTER
R
SURROUND
L
SUB-
WOOFER
L
R
L
R
B
A
B
R
L
R
L
A
• These terminals are for inputting multi-channel audio signals from an external decoder, or a
component with a different type of multi-channel decoder, such as a DVD Audio player, a multi-
channel Super Audio CD player, or another future multi-channel sound format decoder.
• The video signal connection is the same as that for a DVD player.
• For instructions on playback using the external input (EXT. IN) terminals ( page 16).
• With discs on which special copyright protection measures have been taken, the digital signals
may not be output from the DVD player. In this case, connect the DVD player’s analog multi-
channel output to the AVR-1706’s EXT. IN terminals for playback. Also refer to your DVD player’s
operating instructions.
Connecting a CD player
R
L
AUDIO OUT
CD player
COAXIAL
OUT
R
L
R
L
A
C
To connect the digital audio output from the CD player, you can choose either coaxial or optical
connection. If you choose to use the optical connection, it needs to be assigned. For more
information about Digital Input Assignment ( page 42).
