l When making connections, also refer to the operating instructions of the other components.
l The signals input to the color difference (component) video jacks are not output from the VIDEO output jack (yellow) or the S-Video output jack.
In addition, the video signals input to the VIDEO input (yellow) and S-Video input jacks are not output to the color difference (component) video
jacks.
l Some video sources with component video outputs are labeled Y, CB, CR, or Y, Pb, Pr, or Y, R-Y, B-Y. These terms all refer to component video
color difference output.
l At SYSTEM SETUP, the component video input terminal can be asslgned for the input sources to which you want to connect AV devices. (For
details, see page 25.)

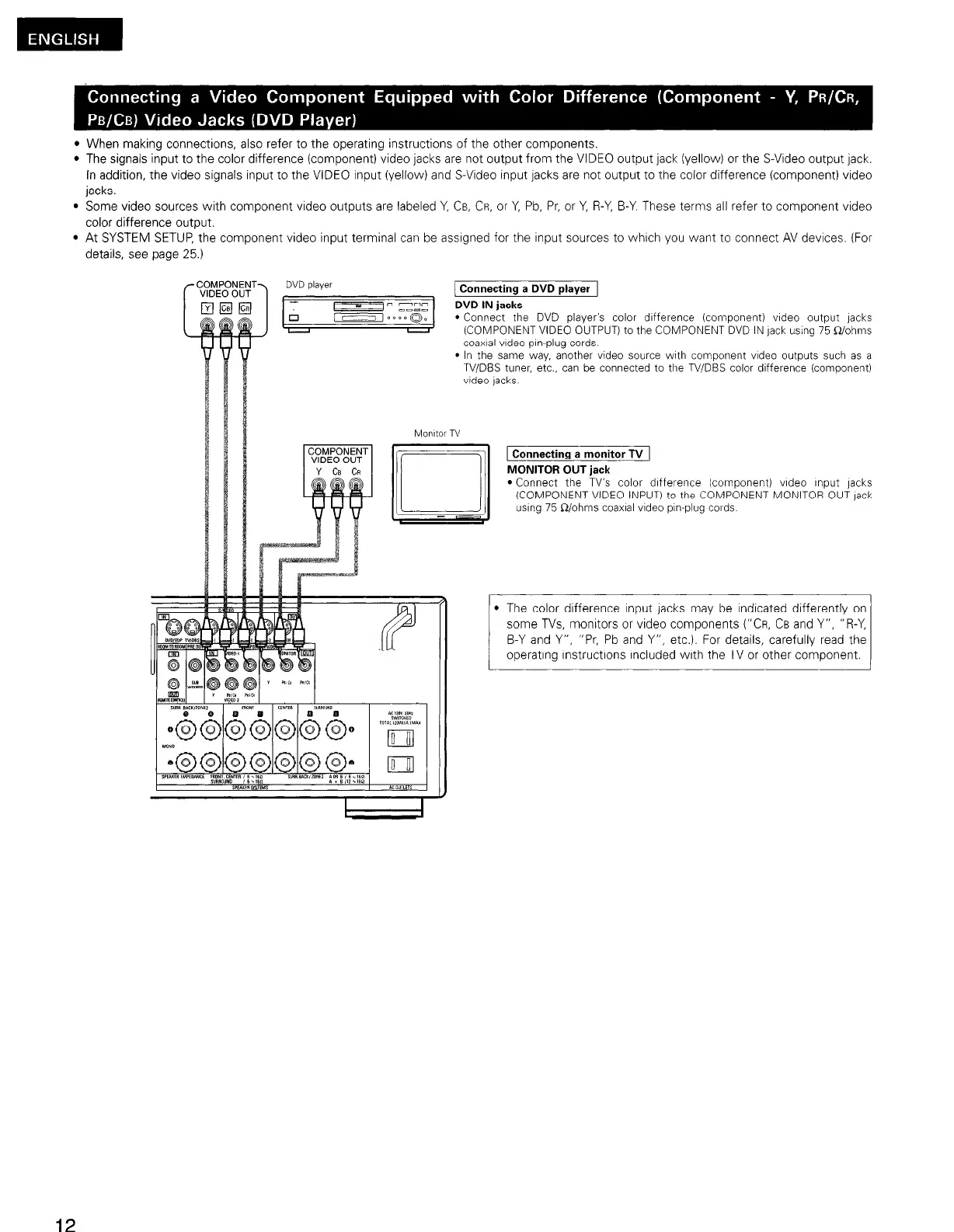

color difference (component) wdeo output jacks
(COMPONENTVIDEO OUTPUT) to the COMPONENT DVD IN jack using 75 Q/ohms
coaxial video pin-plug cords.
l
In the same way. another video source with component video outputs such as a
TV/DBS tuner, etc., can be connected to the TV/DBS color difference (component)
video lacks
Monm TV
1 Connecting a monitor TV 1
MONITOR OUT jack
l
Connect the TV’s color difference (component) video Input jacks
(COMPONENT VIDEO INPUT) to the COMPONENT MONITOR OUT lack
using 75 Q/ohms coaxial video pin-plug cords
l The color difference input jacks may be indicated differently on
some TVs, monitors or video components (“CR, CB and Y”, “R-Y,
B-Y and Y”, “Pr, Pb and Y”, etc.). For details, carefully read the
operating instructions included with the TV or other component.
