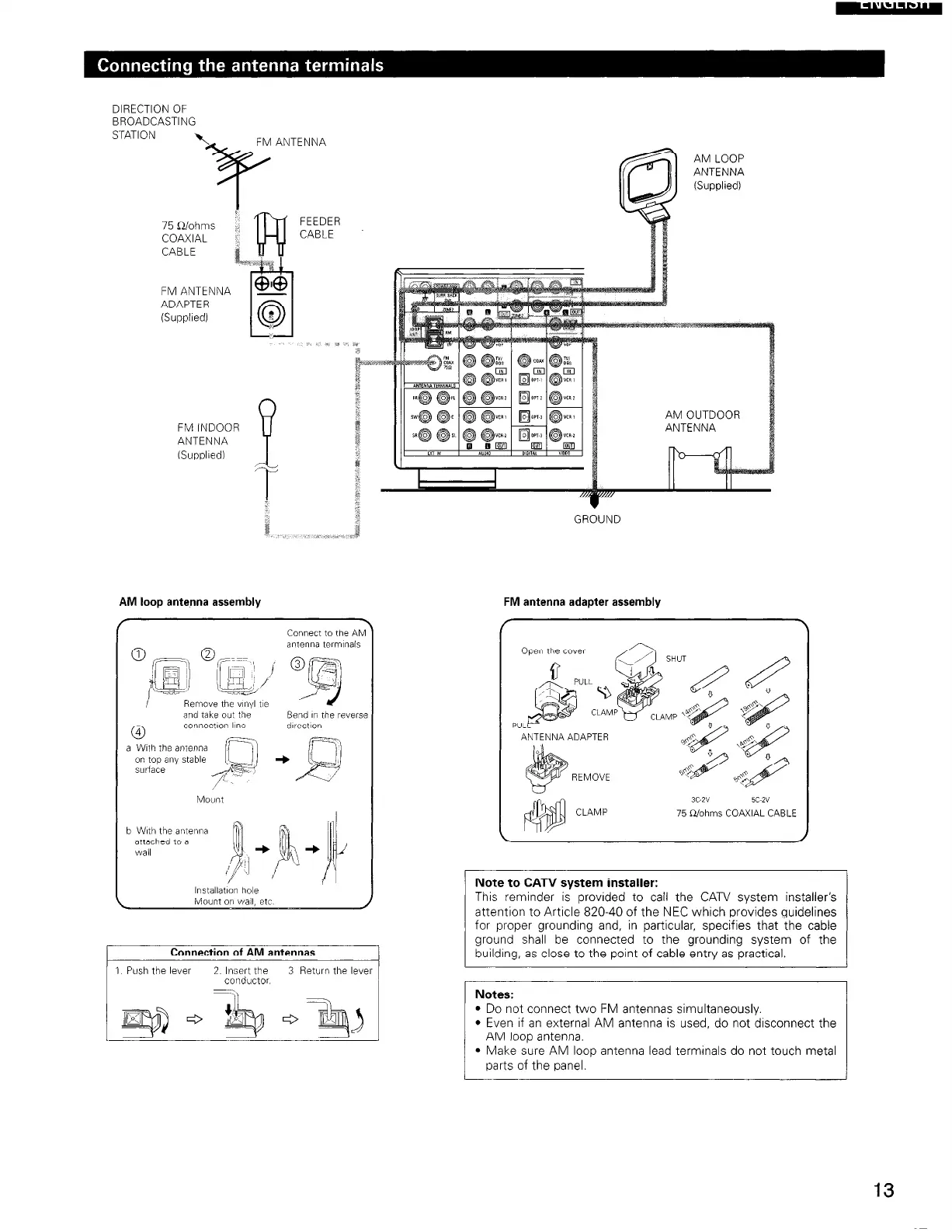

Denon AVR-1803 User Manual

DIRECTION OF
BROADCASTING
STATION
FM ANTENNA
75 Q/ohms
COAXIAL
CABLE
FM ANTENNA
ADAPTER
FM INDOOR
ANTENNA
(Supplied)
P
I
.1
‘”
AM loop antenna assembly
/
Connect to the AM
\
and take out the
AM LOOP
ANTENNA
(Supplied)
AM OUTDOOR
ANTENNA
b With the anfenna
attached to a
wall
lnstallatfon hole
Mount on wall, etc
Connection of AM antennas
1 Push the lever 2 Insert the 3 Return the lever
conductor.
M 44
v
GROUND
FM antenna adapter assembly
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC which provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
buildrng, as close to the point of cable entry as practical.
Notes:
l Do not connect two FM antennas simultaneously.
l Even if an external AM antenna is used, do not drsconnect the
AM loop antenna.
l Make sure AM loop antenna lead terminals do not touch metal
parts of the panel.
13

Denon AVR-1803 Specifications

General

Channels	6.1
Dolby Digital	Yes
DTS	Yes
Dolby Pro Logic II	Yes
Component Video Switching	No
Digital Inputs	2 optical, 1 coaxial
Type	AV Receiver
Frequency Response	10Hz-100kHz (+1, -3dB)
Signal to Noise Ratio	100 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Width	17.1 inches
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Power Output	80 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Inputs	5 A/V
Outputs	1 digital optical
Total Harmonic Distortion	0.08%
Audio D/A Converter	24-bit/96kHz
