Denon AVR-1803 User Manual

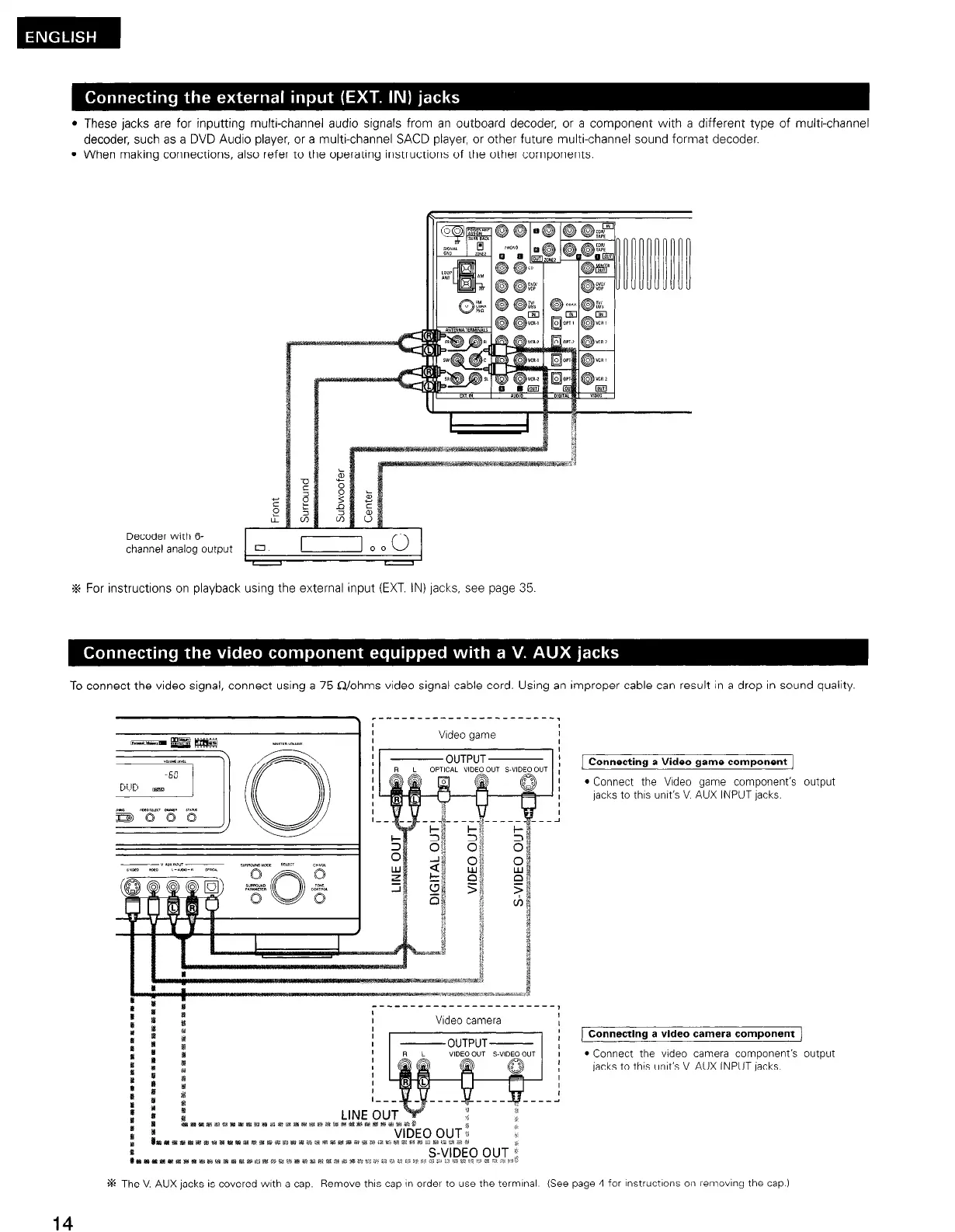

l These jacks are for inputting multi-channel audio signals from an outboard decoder, or a component with a different type of multi-channel
decoder, such as a DVD Audio player, or a multi-channel SACD player, or other future multi-channel sound format decoder.
l When making connections, also refer to the operating instructions of the other components.
.% For instructlons on playback
Decoder with 6-
channel analog output
0
-
-
usmg the external input (EXT. IN) lacks. see page 35
To connect the video signal, connect using a 75 Q/ohms video signal cable cord. Using an improper cable can result In a drop in sound quality
1 Connecting a Video game component 1
l Connect the Video game component’s output
lacks to this unit’s V AUX INPUT jacks.
) Connecting a video camera component 1
l Connect the video camera component’s output
lacks to this unit’s V AUX INPUT lacks.
I The V. AUX jacks is covered with a cap. Remove this cap in order to use the terminal
(See page 4 for lnstrucrlons on removing the cap.)
14

Denon AVR-1803 Specifications

General

Channels	6.1
Dolby Digital	Yes
DTS	Yes
Dolby Pro Logic II	Yes
Component Video Switching	No
Digital Inputs	2 optical, 1 coaxial
Type	AV Receiver
Frequency Response	10Hz-100kHz (+1, -3dB)
Signal to Noise Ratio	100 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Width	17.1 inches
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Power Output	80 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Inputs	5 A/V
Outputs	1 digital optical
Total Harmonic Distortion	0.08%
Audio D/A Converter	24-bit/96kHz
