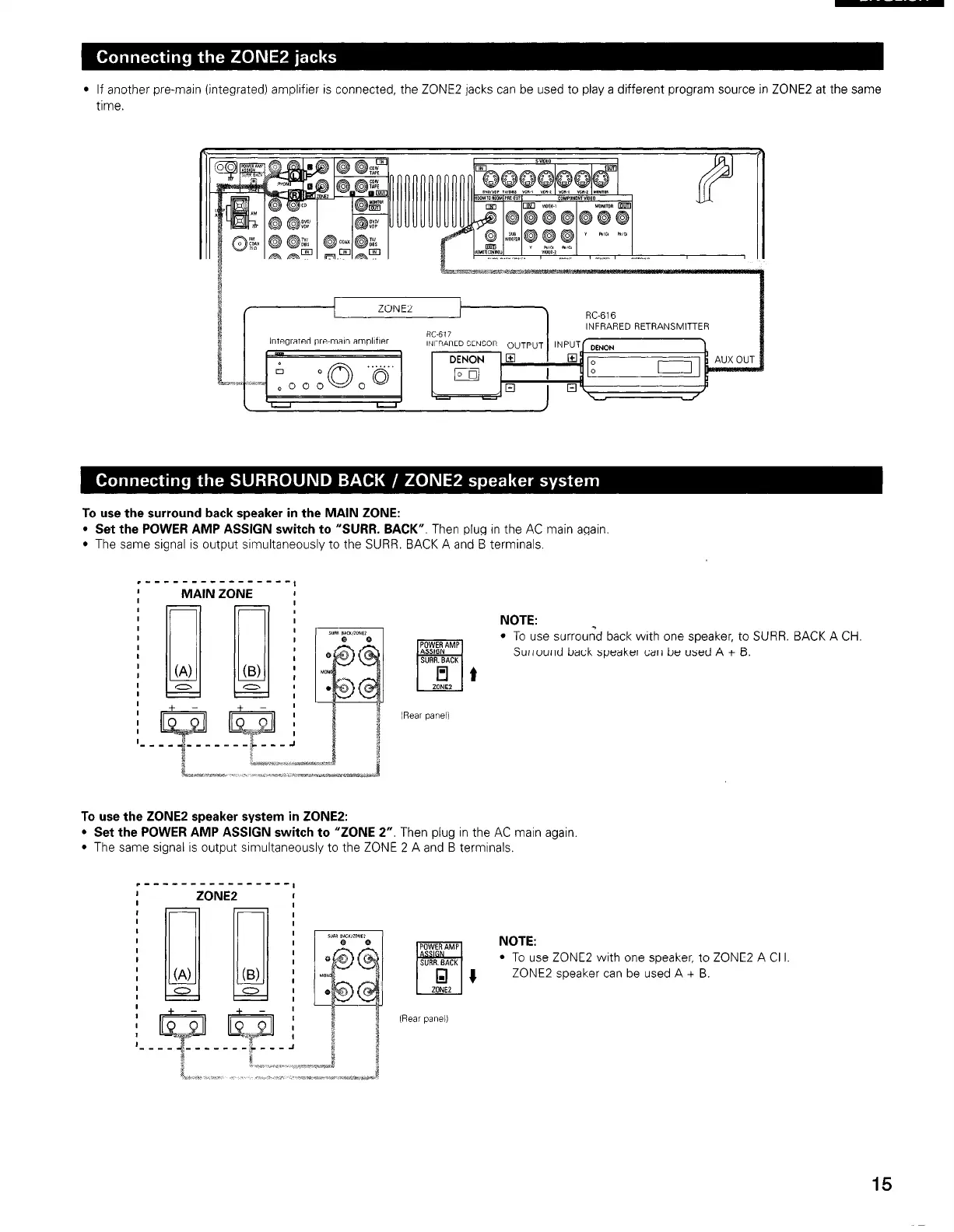

l If another pre-main (integrated) amplifier is connected, the ZONE2 jacks can be used to play a different program source in ZONE:! at the same
time.
3
I
1 c
ZONE2
RC-616
INFRARED RETRANSMITTER
To use the surround back speaker in the MAIN ZONE:
l Set the POWER AMP ASSIGN switch to “SURR. BACK” Then plug In the AC main again
l The same signal is output simultaneously to the SURR. BACK A and B terminals.
*-------‘--------,
I
I
MAINZONE :
(Rear panel)
NOTE: _)
3
l To use surround back with one speaker, to SURR. BACK A CH.
: t
Surround back speaker can be used A + B.
To use the ZONE2 speaker system in ZONEZ:
l Set the POWER AMP ASSIGN switch to “ZONE 2”. Then plug in the AC main again
l The same signal is output srmultaneously to the ZONE 2 A and B terminals,
I
I
I
I
I
--
--- -‘g---J
I
NOTE:
l To use ZONE2 with one speaker, to ZONE2 A CH
ZONE2 speaker can be used A + B.
15

Denon AVR-1803 Specifications

General

Channels	6.1
Dolby Digital	Yes
DTS	Yes
Dolby Pro Logic II	Yes
Component Video Switching	No
Digital Inputs	2 optical, 1 coaxial
Type	AV Receiver
Frequency Response	10Hz-100kHz (+1, -3dB)
Signal to Noise Ratio	100 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Built-in Decoders	Dolby Digital, DTS, Dolby Pro Logic II
Width	17.1 inches
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Power Output	80 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Inputs	5 A/V
Outputs	1 digital optical
Total Harmonic Distortion	0.08%
Audio D/A Converter	24-bit/96kHz
