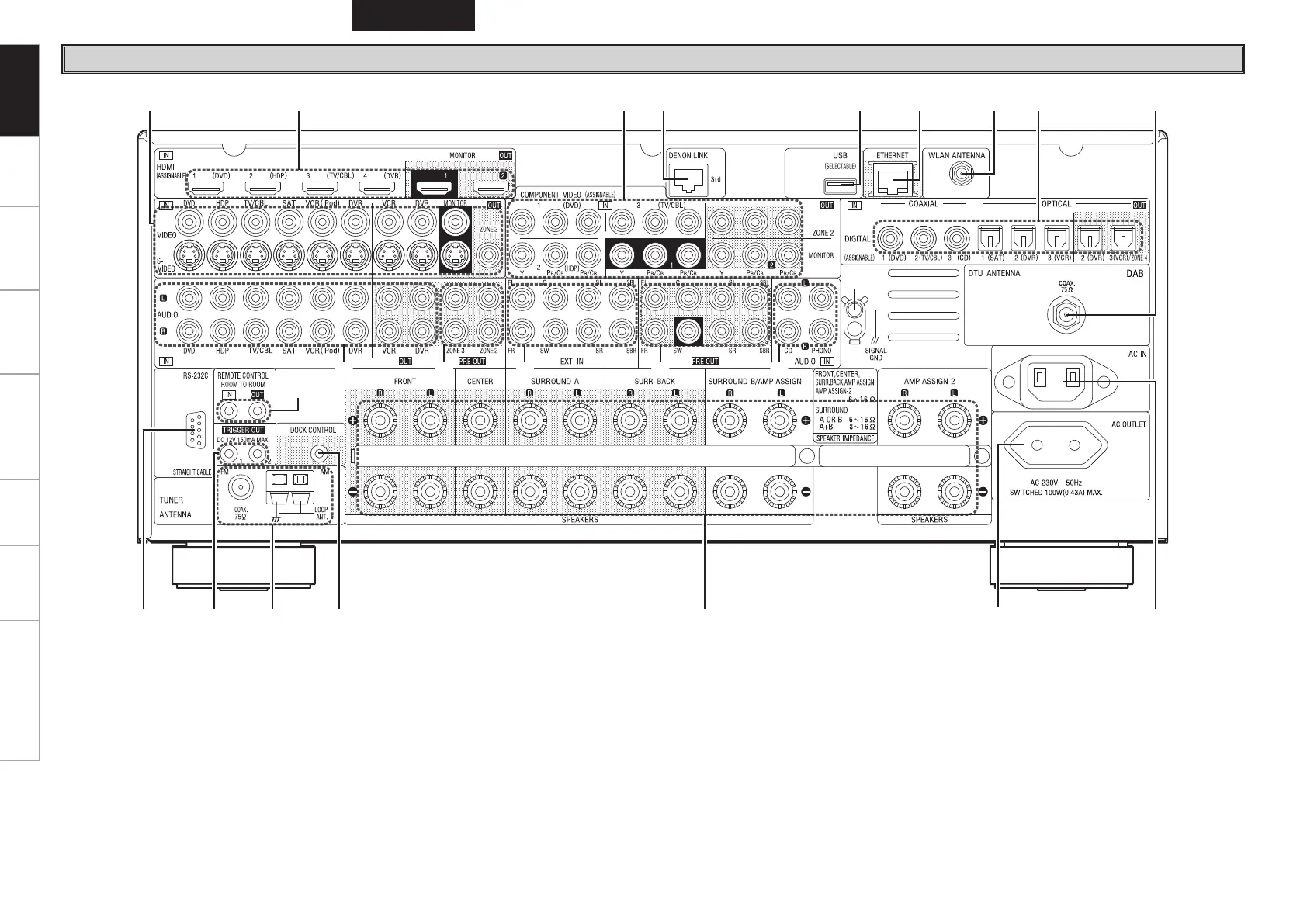

q Conector RS-232C ············································(22)
w Conectores TRIGGER OUT ·······························(22)
e Terminales de antena FM/AM
(TUNER ANTENNA) ··········································(20)
r Conector DOCK CONTROL ······························(14)
t Terminales de altavoces (SPEAKERS) ············(10)
y Salida de CA (AC OUTLET) ······························(23)
u Toma de AC (AC IN) ··········································(23)
i Terminal de antena DAB
(DTU ANTENNA)
··············································(20)
o Conectores de audio digital
(OPTICAL / COAXIAL) ································(13, 15)
Q0 Terminal WLAN ANTENNA ······························(21)
Q1 Conector ETHERNET ········································(21)
Q2 Puerto USB ·······················································(19)
Q3 Conector DENON LINK ····································(17)
Q4 Conectores COMPONENT VIDEO ····················(13)
Q5 Conectores HDMI ·············································(12)
Q6 Conectores VIDEO / S-VIDEO ··························(13)
Q7 Conectores REMOTE CONTROL······················(22)
Q8 Conectores de audio analógico (AUDIO) ·······(13)
Q9 Conectores PRE OUT ·································(18, 22)
W0 Conectores EXT. IN ···········································(18)
W1 Terminal SIGNAL GND ·····································(14)
Panel trasero
Primeros pasos
5.AVR4308E2_SPA_p1~48_3.indd 6 2007/06/23 8:53:30
