Denon AVR-X3100W Service Manual

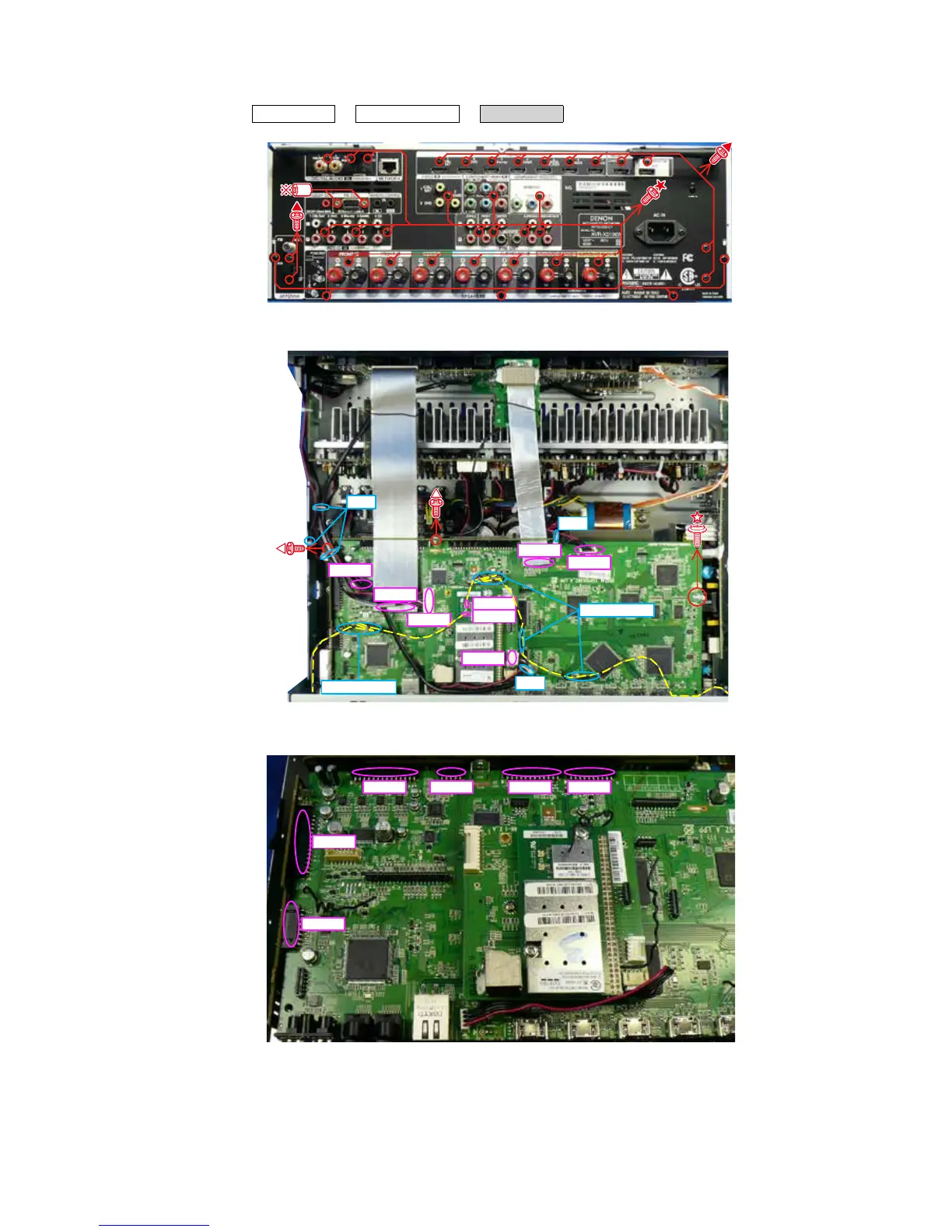

3. DIGITAL PCB
Proceeding : TOP COVER → BACK CHASSIS → DIGITAL PCB
(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector wires and FFC.
(3) Remove the connector wire.
FFC
CN903
FFC
CN914
CN916
CON1
CON2
CN704
STYLE PIN
CUT
CUT
STYLE PIN
CUT
Front side
BN24A BN25A BN21ABN26A
BN23A
BN27A
15

Denon AVR-X3100W Specifications

General

Receiver type	Surround
Speaker selector	A+B
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Remote control in	1
Composite video in	3
Multichannel audio input type	Terminals
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Supported radio bands	FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	10700 g
