Denon AVR-X3100W Service Manual

TECHNICAL SPECIFICATIONS
n
Audio section
• Power amplifier
Rated output
:
Front :
105W+105W(8Ω, 20Hz - 20kHz with 0.08% T.H.D.)
135W+135W(6Ω, 1kHz with 0.7% T.H.D)
Center :
105W(8Ω, 20Hz - 20kHz with 0.08% T.H.D.)
135W(6Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
105W+105W(8Ω, 20 Hz - 20 kHz with 0.08% T.H.D.)
135W+135W(6Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
105W+105W(8Ω, 20 Hz - 20 kHz with 0.08% T.H.D.)
135W+135W(6Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 4 - 16Ω
n
Analog section
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response : 10 Hz - 100 kHz — +1, -3 dB(Direct mode)
S/N : 100 dB(IHF-A weighted, Direct mode)
Distortion : 0.008 % (20 Hz – 20 kHz) (Direct mode)
Rated output : 1.2 V
n
Digital section
D/A output : Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input : Format — Digital audio interface
n
Video section
• Color component video connector
Input/output level and impedance : Y signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response : 5 Hz - 60 MHz — 0, -3 dB
n
Tuner section
Reception frequency range : FM 87.5 MHz - 107.9 MHz(for E3)
FM 87.5 MHz - 108.0 MHz(for E2, E1C)
AM 520 kHz - 1710 kHz(for E3)
AM 522 kHz - 1611 kHz(for E2, E1C)
Effective sensitivity : FM 1.2μV(12.8dBf)
AM 18 μV
50 dB sensitivity : MONO ― 2.8 μV (20.2 dBf)
S/N: MONO ― 70 dB (IHF-A weighted, Direct mode)
STEREO ― 67 dB (IHF-A weighted, Direct mode)
Distortion : MONO ― 0.7 % (1 kHz)
SRETEO ― 1.0 % (1 kHz)
n
Wireless LAN section
Network type
(wireless LAN standard): Conforming to Wi-Fi®z1
Security : WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency : 2.4 GHz
No. of channels : 1 - 11 ch (for E3)
1 - 13 ch (for E2, E1C)
z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product
Logo are registered trademarks of the Wi-Fi Alliance.
n
Bluetooth section
Communications system : Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power : Maximum 2.5 mW (Class 2)
Maximum communication range : Approx. 32.8 ft/10 m in line of sight
Frequency band : 2.4 GHz band
Modulation scheme : FHSS (Frequency-Hopping Spread Spectrum)
Supported proles : A2DP 1.2 (Advanced Audio Distribution Prole)
AVRCP 1.4 (Audio Video Remote Control Prole)
Corresponding codec : SBC, AAC
Transmission range (A2DP) : 20 Hz - 20,000 Hz
n
General
Power supply : (for E3) : AC 120 V, 60 Hz
(for E2) : AC 230 V, 50 Hz / 60Hz
(for E1C) : AC 220 V, 50 Hz
Power consumption : 600W
Power consumption in standby mode : 0.1W
Power consumption in CEC standby mode : 0.5W
Power consumption in network standby mode : 2.7W
For purposes of improvement, specications and design are subject to
change without notice.

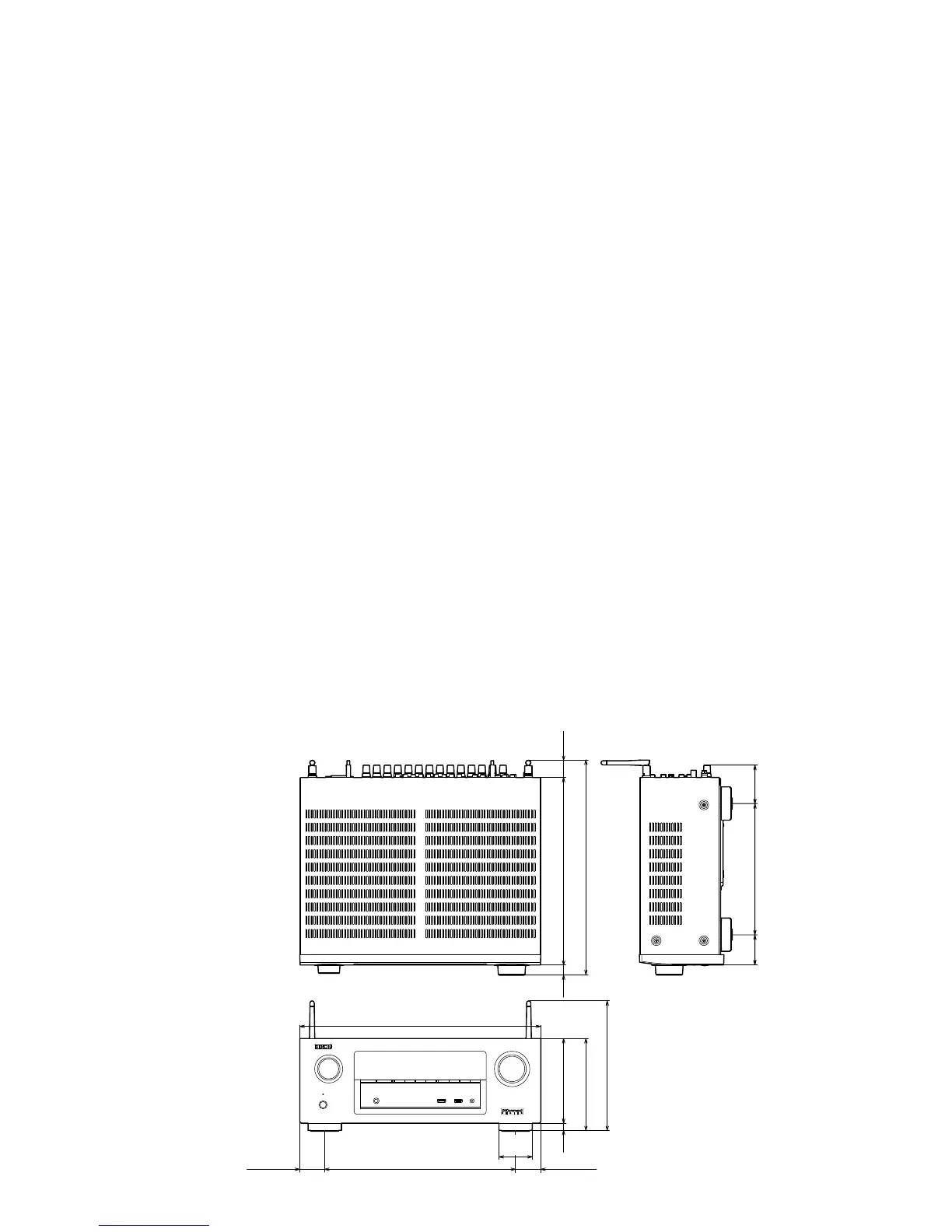

DIMENSION
Unit： in. (mm) Weight： 26 lb 4 oz (11.1 kg)
17 3/32 (434)
9 21/64 (237)
2 11/64
(55)
1 27/32
(47)
19/32
(15)
5 63/64 (152) 6 37/64 (167)
9 21/64 (237)
13 20/64 (338)
15 9/32 (388)
3/4
(19)
1 7/32
(31)
13 25/64 (340)
2 23/64
(60)
1 27/32 (47) 1 27/32 (47)
9

Denon AVR-X3100W Specifications

General

Receiver type	Surround
Speaker selector	A+B
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Remote control in	1
Composite video in	3
Multichannel audio input type	Terminals
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Supported radio bands	FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	10700 g
