Denon AVR-X3100W Service Manual

TERMINAL
I/O
PULL-
DOWN
5-V
TOLERANT
DESCRIPTION
NAME PIN
VOUT1+ 43 O No No Positive analog output from DAC1
VOUT1- 44 O No No Negative analog output from DAC1
RSV2 45 — — — Reserved, tied to analog ground
AGND2 46 — — — Analog ground 2
VCC2 47 — — — Analog power supply 2, +5 V
RSV2 48 — — — Reserved, tied to analog ground
(1) Open-drain conguration in out mode.

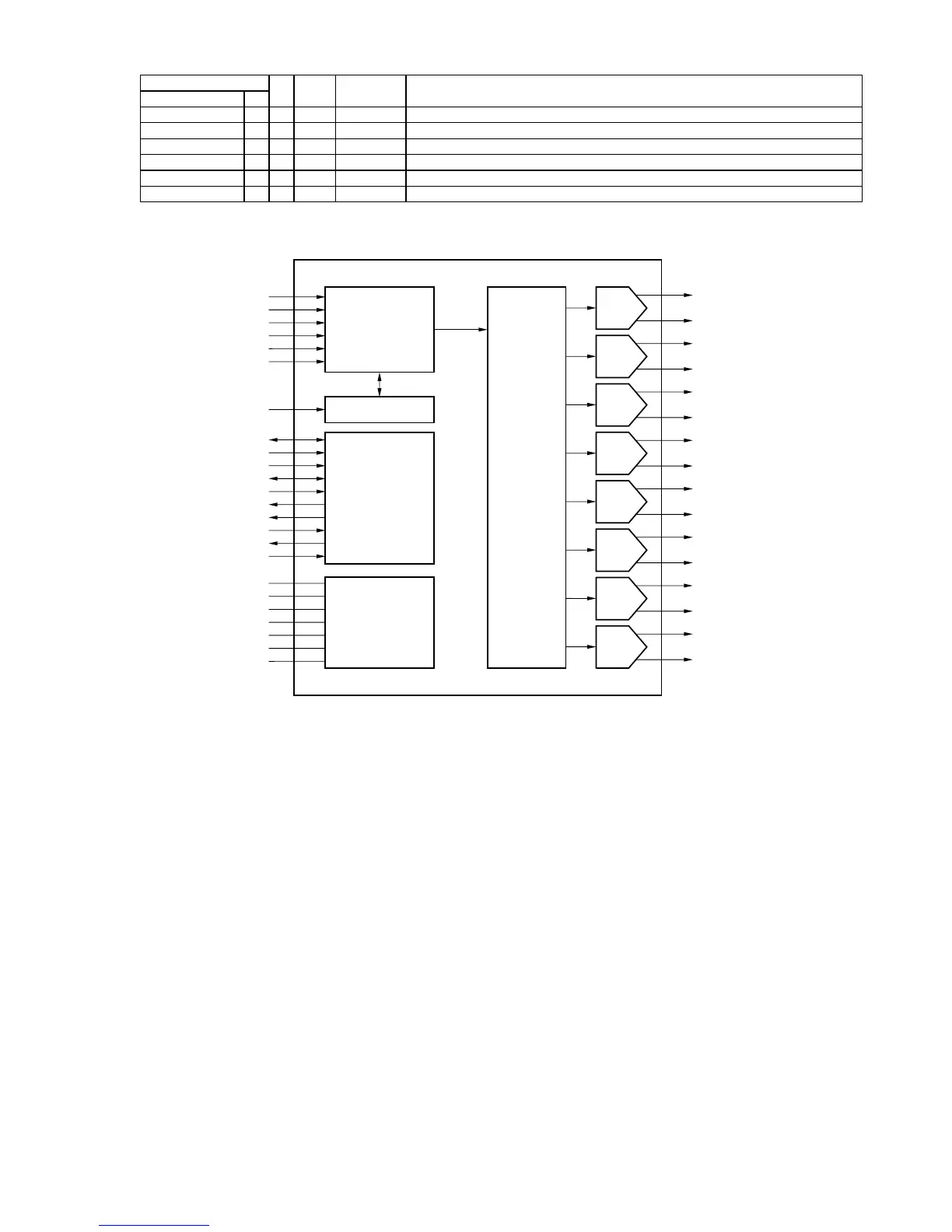

PCM1690 FUNCTIONAL BLOCK DIAGRAM
FUNCTIONAL BLOCK DIAGRAM
DAC
VOUT1+
VOUT1

DAC
VOUT2+
VOUT2

DAC
VOUT3+
VOUT3

DAC
VOUT4+
VOUT4

DAC
VOUT5+
VOUT5

DAC
VOUT6+
VOUT6

AGND2
VDD
DGND
VCOM
VCC1
AGND1
VCC2
DAC
VOUT7+
VOUT7

DAC
VOUT8+
VOUT8

DigitalFilter
and
Volume
PowerSupplyand
CommonVoltage
SCKI
SCKManager
RST
AMUTEO
AMUTEI
ZERO2
ZERO1
MODE
MD/SDA/DEMP
MC/SCL/FMT
MS/ADR0/RSV
TEST/ADR1/RSV
ControlInterface
(SPI/I C/HW)
2
LRCK
BCK
DIN4
DIN3
DIN2
DIN1
AudioInterface
PCM1690
SBAS448A– OCTOBER 2008–REVISED JANUARY 2009.............................................................................................................................................. www.ti.com
8 Submit Documentation Feedback Copyright © 2008–2009, Texas Instruments Incorporated
Product Folder Link(s): PCM1690
177

Denon AVR-X3100W Specifications

General

Receiver type	Surround
Speaker selector	A+B
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Remote control in	1
Composite video in	3
Multichannel audio input type	Terminals
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Supported radio bands	FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	10700 g
