Denon AVR-X3100W Service Manual

6. SPK PCB

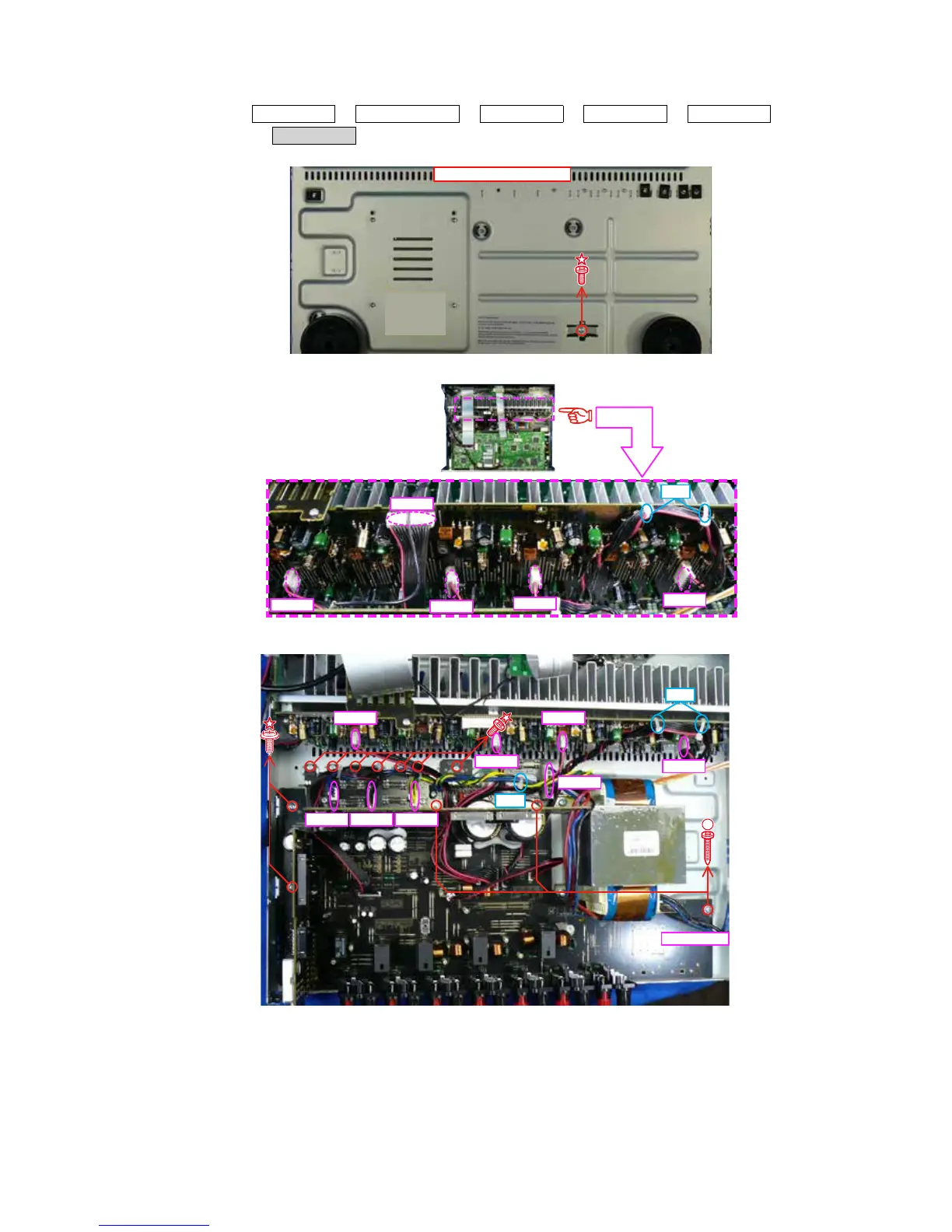

Proceeding : TOP COVER → BACK CHASSIS → DIGITAL PCB → VIDEO PCB → INPUT PCB
→ SPK PCB
(1) Remove the screws.
(2) Remove the connector wire.
(3) Remove the connector wire. Remove the screws.
View from the bottom
CN703
CN461
CN704
CN702
CN701
CUT
CN932 CN940CN941
CN701 CN702
CN704
CN703
CN971
TO CN902
CUT
CUT
17

Denon AVR-X3100W Specifications

General

Receiver type	Surround
Speaker selector	A+B
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Remote control in	1
Composite video in	3
Multichannel audio input type	Terminals
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Supported radio bands	FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	10700 g
