Denon AVR-X3100W Service Manual

SPECIAL MODE
Special Mode Conguration Buttons
b
No. 1 - 13 : Hold down buttons A, B and C at the same time and press the power button to turn on the power.
b
No. 14 ： Press the A and B buttons simultaneously while inserting the AC plug to turn the power on.

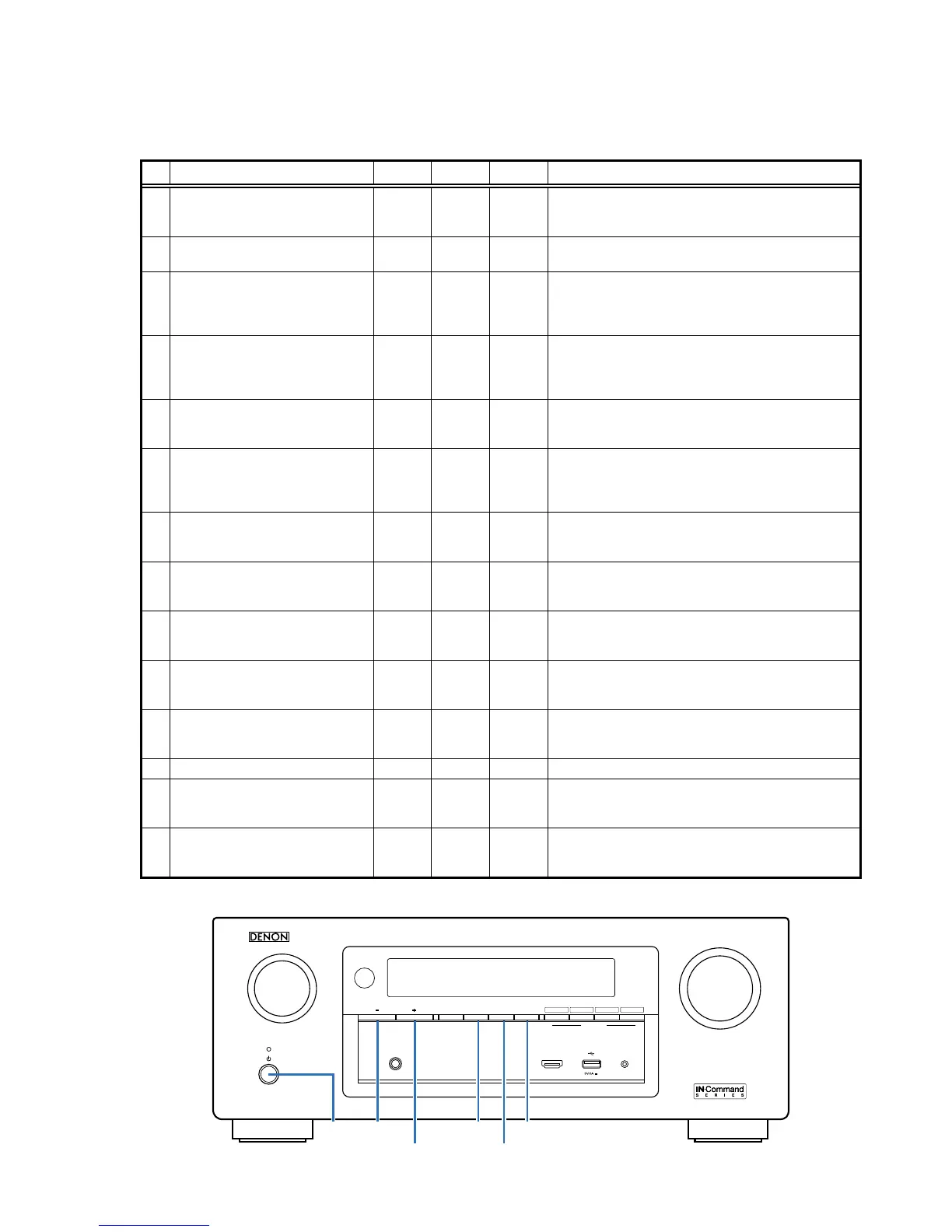

No. Mode Button A Button B Button C Contents
1
Version Display
(u-COM / DSP Error Display)
DIMMER STATUS -
Displays the version of rmware such as the main rm-
ware or DSP, etc. Errors that have occurred are displayed.
(See 20 page)
2 Protection History Display Mode
ZONE2
SOURCE
DIMMER STATUS
Displays the protection occurrence history.
(See 60 page)
3
Check the Video/Audio pass
Mode
↑ ↑ ↑
This is a special mode for service conrmation used dur-
ing repair work to simplify the conrmation work for the
Audio channel/video channel.
(See 28 page)
4 Remote ID Setup Mode ↑ ↑ ↑
If there are multiple DENON AV receivers in the same area,
this mode stops the other AV receivers from being oper-
ated concurrently with this device.
(See 64 page)
5 TUNER step ↑ ↑ ↑
Enables reception STEP of the ANALOG TUNER to be
changed.
(See 63 page)
6 Operation INFO ↑ ↑ ↑
Displays the total operating time of the set, number of
times the power was switched on, and number of occur-
rences of each protection.
(See 62 page)
7
User Initialization mode
(Settings for the Installer Setup are
not initialized.)
TUNER
PRESET
CH -
TUNER
PRESET
CH +
-
Initializes backup data.
(Settings for the Installer Setup are not initialized.)
8
Factory Initialization mode
(Initialization includes settings for the
Installer Setup.)
ZONE2
SOURCE
DIMMER -
Initializes backup data.
(Initialization includes settings for the Installer Setup.)
9
Mode for preventing remote
control acceptance
TUNER
PRESET
CH +
ZONE2
SOURCE
-
Start this unit in the PANEL/REMOTE LOCK selection mode
so that PANEL LOCK and Remote Lock can be selected as
ON or OFF. (See 24 page)
10
PANEL LOCK mode
(with Volume)
↑ ↑ -
This function prevents reception of all keys/encoders
(including VOLUME) other than the power supply button
on the Front Panel.
11
PANEL LOCK mode
(without Volume)
↑ ↑ -
This function prevents reception of all keys/encoders
other than the power supply button and VOLUME encoder
on the Front Panel.
12 Panel Lock Release ↑ ↑ - Function for Releasing the PANEL LOCK
13 Protection pass mode
TUNER
PRESET
CH +
ZONE2
SOURCE
STATUS
Enables the power to be turned on when protection de-
tection is in the stopped state.
(See 65 page)
14 Forced USB All Device Write Mode
TUNER
PRESET
CH -
STATUS -
Mode used when this unit cannot be recovered.
Forcibly switches this unit to USB update mode.
(See 72 page)
MASTER VOLUME
SOURCE SELECT
ONLINE
MEDIA
PLAYER
Blu-rayCB L /S A T
321 4
ZONE2
ON/OFF
ZONE2
SOURCE
DIMMER S T AT U S
TUNER
PRESET CH
SETUP MICAUX 1 - HDMI
PHONES
QUICK SELECT
DIMMER
STATUSTUNER
PRESET CH -
TUNER
PRESET CH +
X
ZONE2
SOURCE
19

Denon AVR-X3100W Specifications

General

Receiver type	Surround
Speaker selector	A+B
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Remote control in	1
Composite video in	3
Multichannel audio input type	Terminals
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Supported radio bands	FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	10700 g
