Denon AVR-X3100W Service Manual

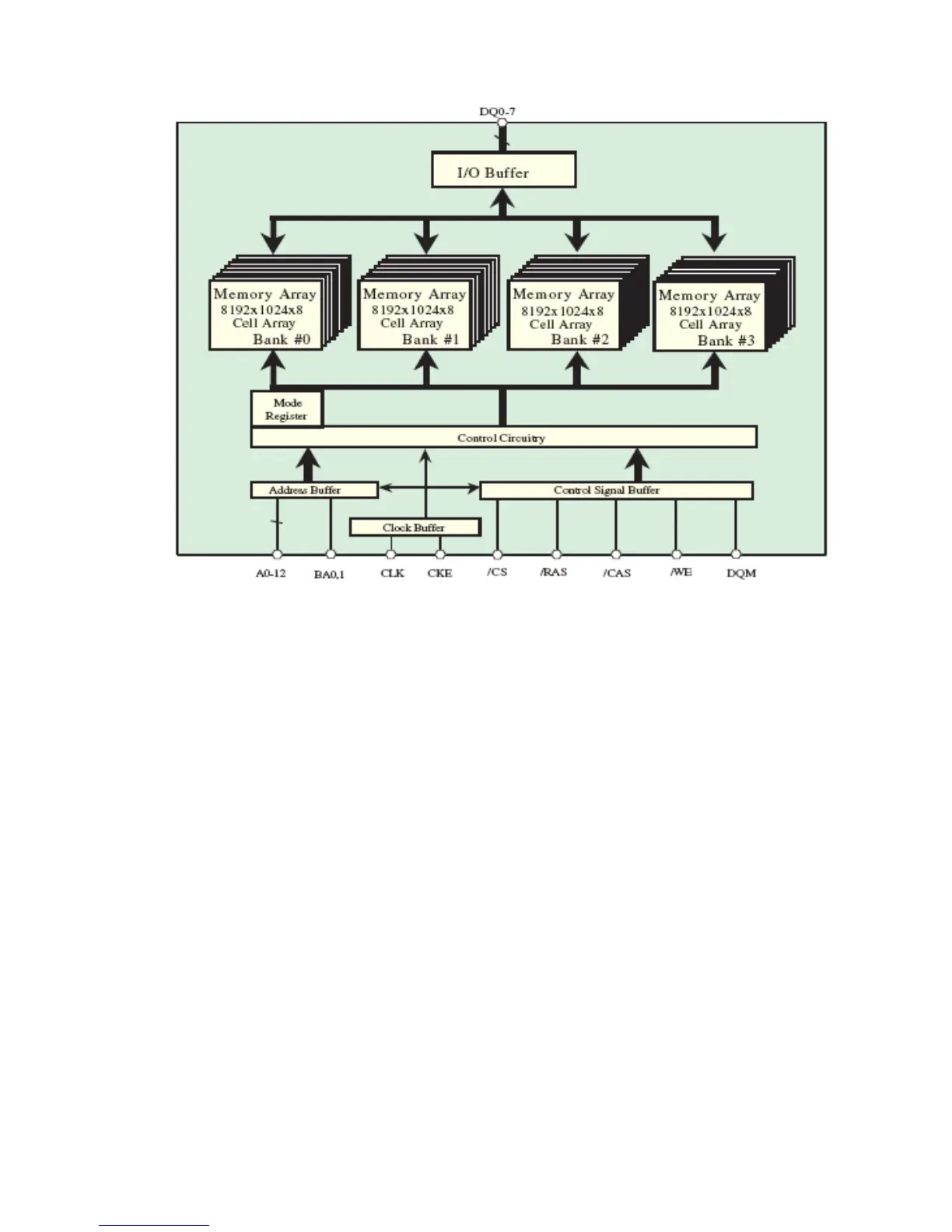

A3V64S40GTP-60 Block Diagram
A3V56S30FTP
A3V56S40FTP
256M Single Data Rate Synchronous DRAM
Revision 1.1 Mar., 2010
Page 3 / 39
Note:This figure shows the A3V56S30FTP
The A3V56S40FTP configuration is 8192x512x16 of cell array and DQ0-15
Type Designation Code
A 3Ｖ 56 Ｓ４０F ＴＰ－G6
Speed Grade 75： 133MHz@CL=3
7： 143MHz@CL=3
6： 166MHz@CL=3
G： Green
Package Type TP：TSOP (II)
Process Generation
Function Reserved for Future Use
Organization 2
n
3：x8, 4：x16
SDR Synchronous DRAM
Density 56：256M bits
Interface V：LVTTL
Memory Style (DRAM)
Zentel DRAM
173

Denon AVR-X3100W Specifications

General

Receiver type	Surround
Speaker selector	A+B
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Remote control in	1
Composite video in	3
Multichannel audio input type	Terminals
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Supported radio bands	FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	10700 g
