Denon AVR-X3100W Service Manual

Magnify schematic / printed circuit
board diagrams - 2
(Pan & Zoom function)
ThePan&Zoomfunctionletsyouseewhichpartof
amagnieddiagramisbeingshowninaseparate
window.
[Example using Adobe Reader X]
On the
"View"
menu, point to
"Zoom"
, and then click
"Pan & Zoom"
.
• The Pan & Zoom window appears on the screen.
[Example using Adobe Reader 9]
On the
"Tools"
menu, point to
"Select & Zoom"
, and
then click
"Pan & Zoom Window"
.

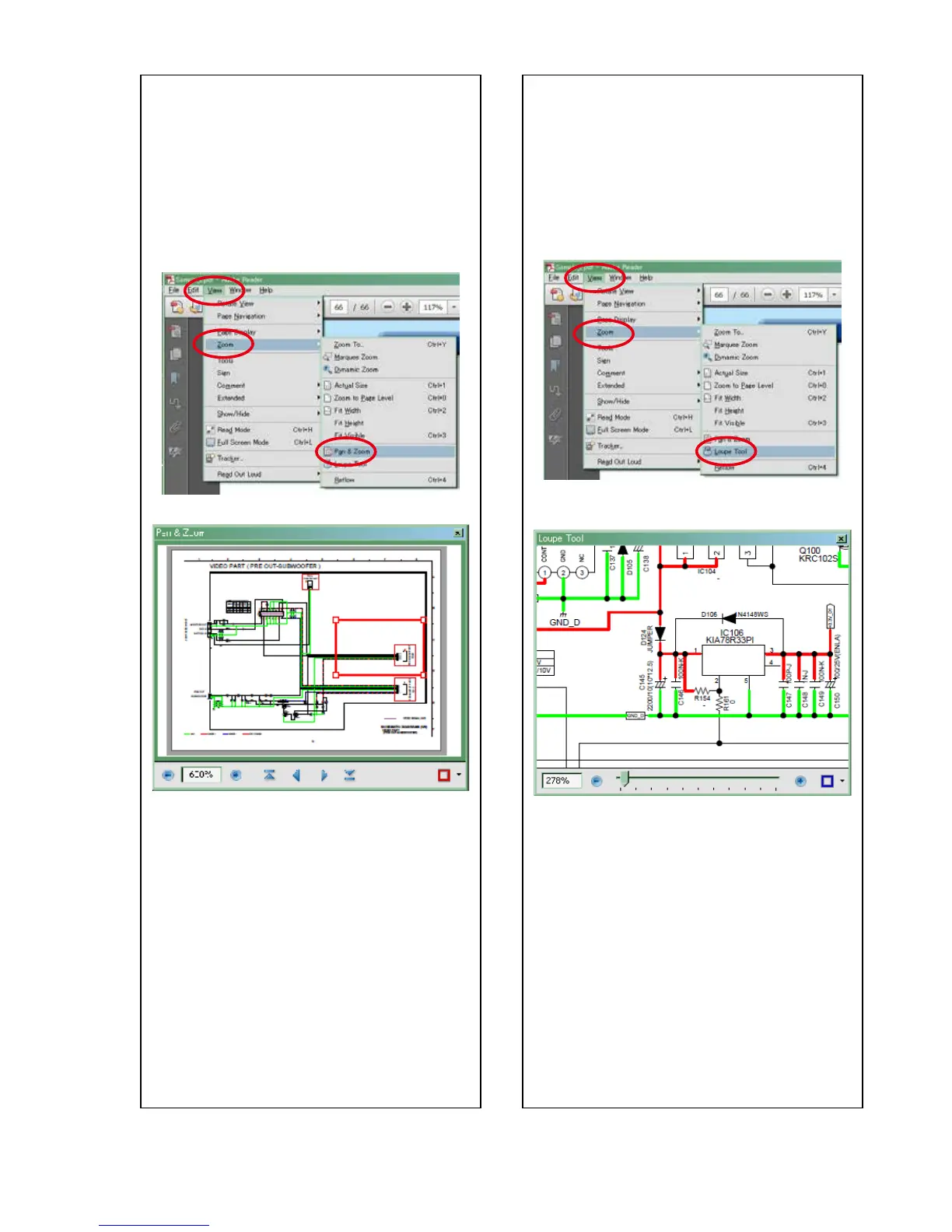

Magnify schematic / printed circuit
board diagrams - 3
(Loupe Tool function)
TheLoupeToolfunctionletsyoumagnifyaspecic
part of a diagram in a separate window.
[Example using Adobe Reader X]
On the
"View"
menu, point to
"Zoom"
, and then click
"Loupe Tool"
.
• The Loupe Tool window appears on the screen.
[Example using Adobe Reader 9]
On the
"Tools"
menu, point to
"Select & Zoom"
, and
then click
"Loupe Tool Window"
.
5

Denon AVR-X3100W Specifications

General

Receiver type	Surround
Speaker selector	A+B
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Remote control in	1
Composite video in	3
Multichannel audio input type	Terminals
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Supported radio bands	FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	10700 g
