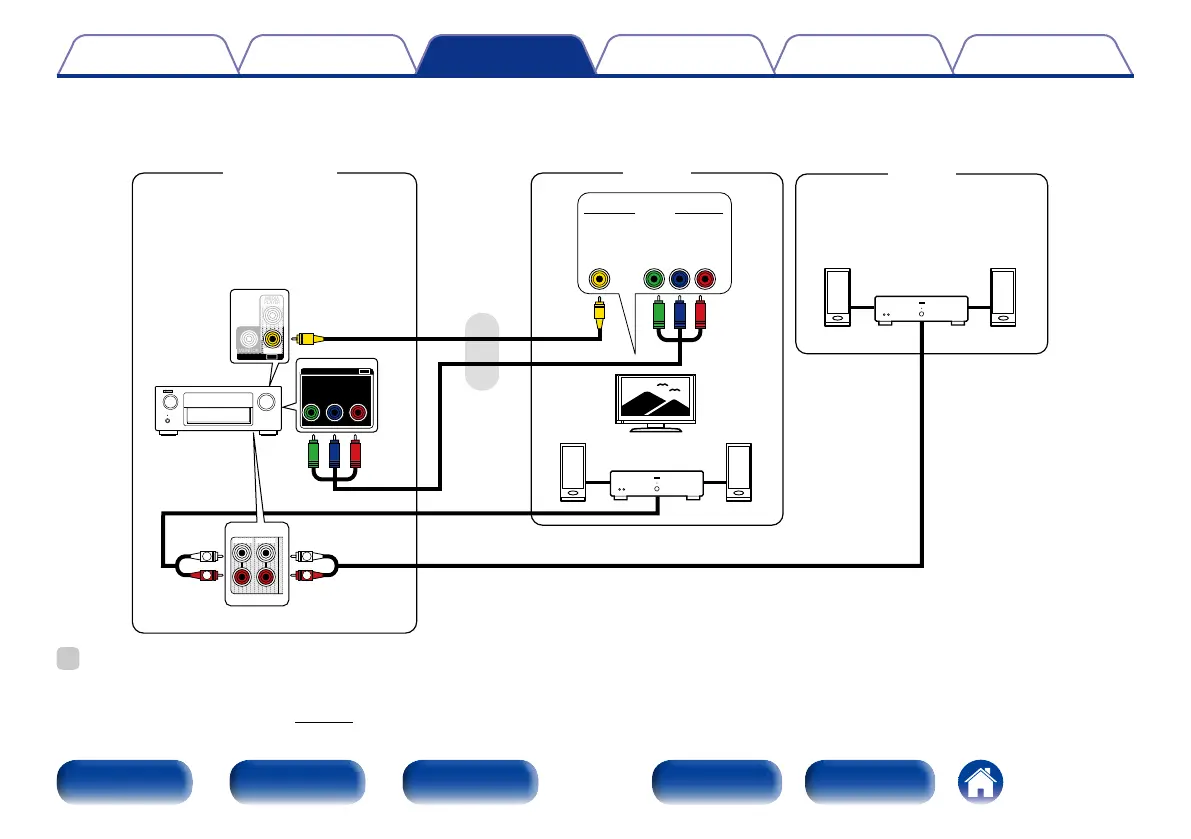

2 Connection 3 : Connection through the video output connector and external amp
The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are output to the ZONE2 and ZONE3 amplifiers and played on these
amplifiers.
R
L
R
L
IN
VIDEO
VIDEO
COMPONENT VIDEO
Y P
B PR
IN
ZONE2
MAIN ZONE
AUX IN
ZONE3
AUX IN
MEDIA
PLAYER
ZONE2
MONITOR
/
ZONE2
PR
/
CR
PB
/
CB
Y
MONITOR
COMPONENT VIDEO
VIDEO
OUT
OUT
ZONE2 ZONE3
This unit
Power
amplifiers
Power
amplifiers
or
%
•We recommend using high quality pin-plug (RCA type) cables for audio connections in order to prevent noise.
•If you select a same input source for MAIN ZONE and ZONE2, audio playback may be restricted.
•When “Component Video Out” (vpage164) in the menu is set to “ZONE2”, the component video output connector outputs the ZONE2 video.
•The menu screen is not output in ZONE2.
