2 Connecting 11.1-channel speakers

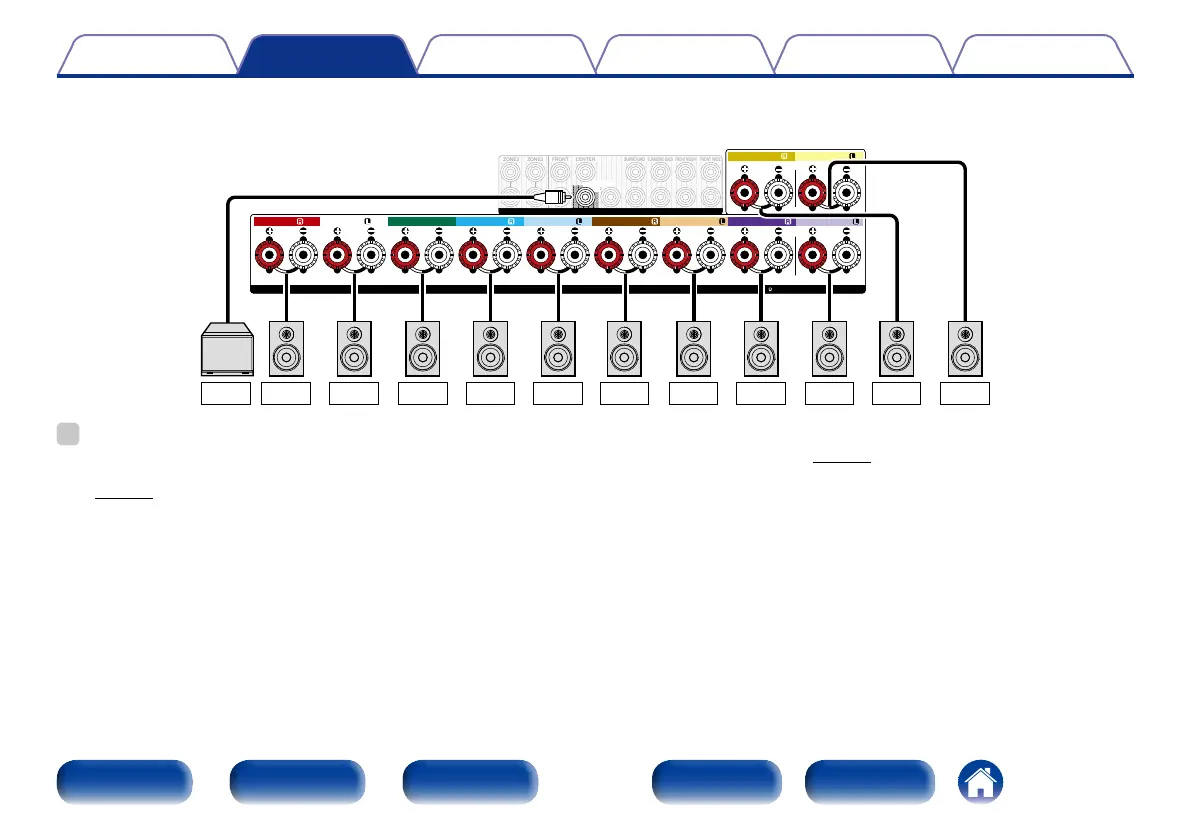

The illustrations shows a connection example for performing 11.1-channel playback using surround back speakers.
FRONT HEIGHT
FRONT HEIGHT
FRONT
FRONT
SURROUND
SURROUND
CENTER
SURROUND BACK
SURROUND BACK
SPEAKERS
IMPEDANCE : 6～16 Ω CLASS 2 WIRING
ASSIGNABLE
ZONE2 ZONE3 FRONT SURROUND FRONT HEIGHT FRONT WIDE CENTER SURROUND BACK
SUBWOOFER
1 2
PRE OUT
ASSIGNABLE
FRONT WIDE
FRONT WIDE
SW1
FLFR C SR SL SBR SBL FHR FHL FWR FWL
%
•When using this connection, also set “Assign Mode” in the menu to “7.1ch (SB/FH/FW)” and “9.1ch (SB/FH/FW)” (vpage181).
•When “Assign Mode” in the menu is set to “9.1ch(SB/FH/FW)”, use an external amp to connect the pre-out terminal to the channel specified in “Main Pre-amps”
(vpage182).
•When using a signal surround back speaker, connect it to the SURROUND BACK L terminal.
