ENGliSh
This section explains how to make connections for all of the
supported audio signals.
NOTE
•Do not plug in the power cord until all connections have been
completed.
•When making connections, also refer to the owner’s manual of the
other components.
•Be sure to connect the left and right channels properly (left with left,
right with right).
•Do not bundle power supply cords together with connection cables.
Doing so can result in humming or noise.

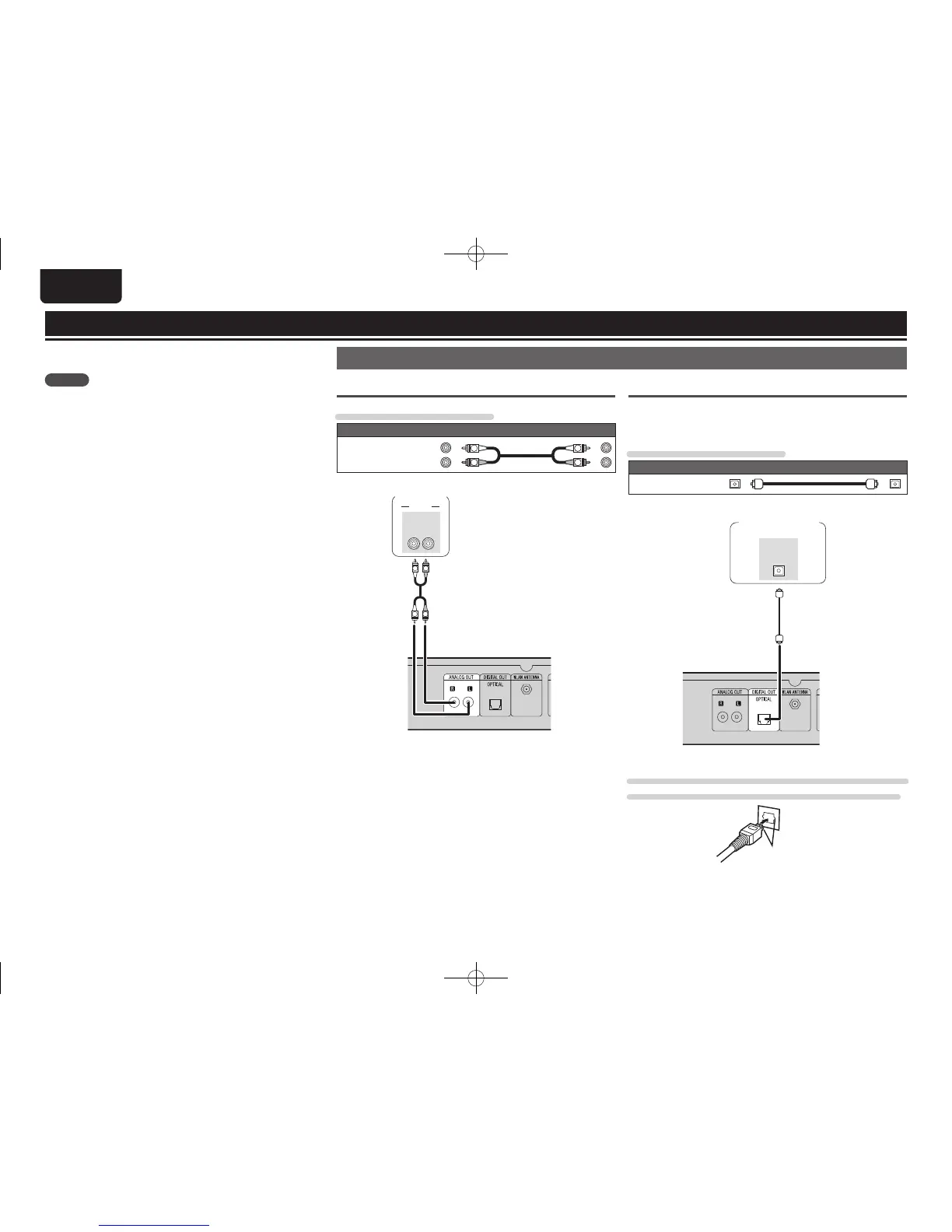

Connections
Analog connections
Cables used for connections
Audio cable (supplied)
Audio cable
R
L
R
L
(White)
(Red)
R
L
R
L
AUDIO
RL
IN
AUDIO
Amplifier
Digital connections
Connect digital devices such as AV receivers and D/A converters with
the unit to enjoy digital audio output from the unit.
When connecting, use a commercially available optical cable.
Cables used for connections
Audio cable (sold separately)
Optical cable
OPTICAL
IN
AV receivers /
D/A converters
When connecting the optical digital output connector
with an optical transmission cable (sold separately)
Match the shapes
Match the shapes then insert firmly.
Connecting the amplifier
