Denon RCD-M40 Service Manual

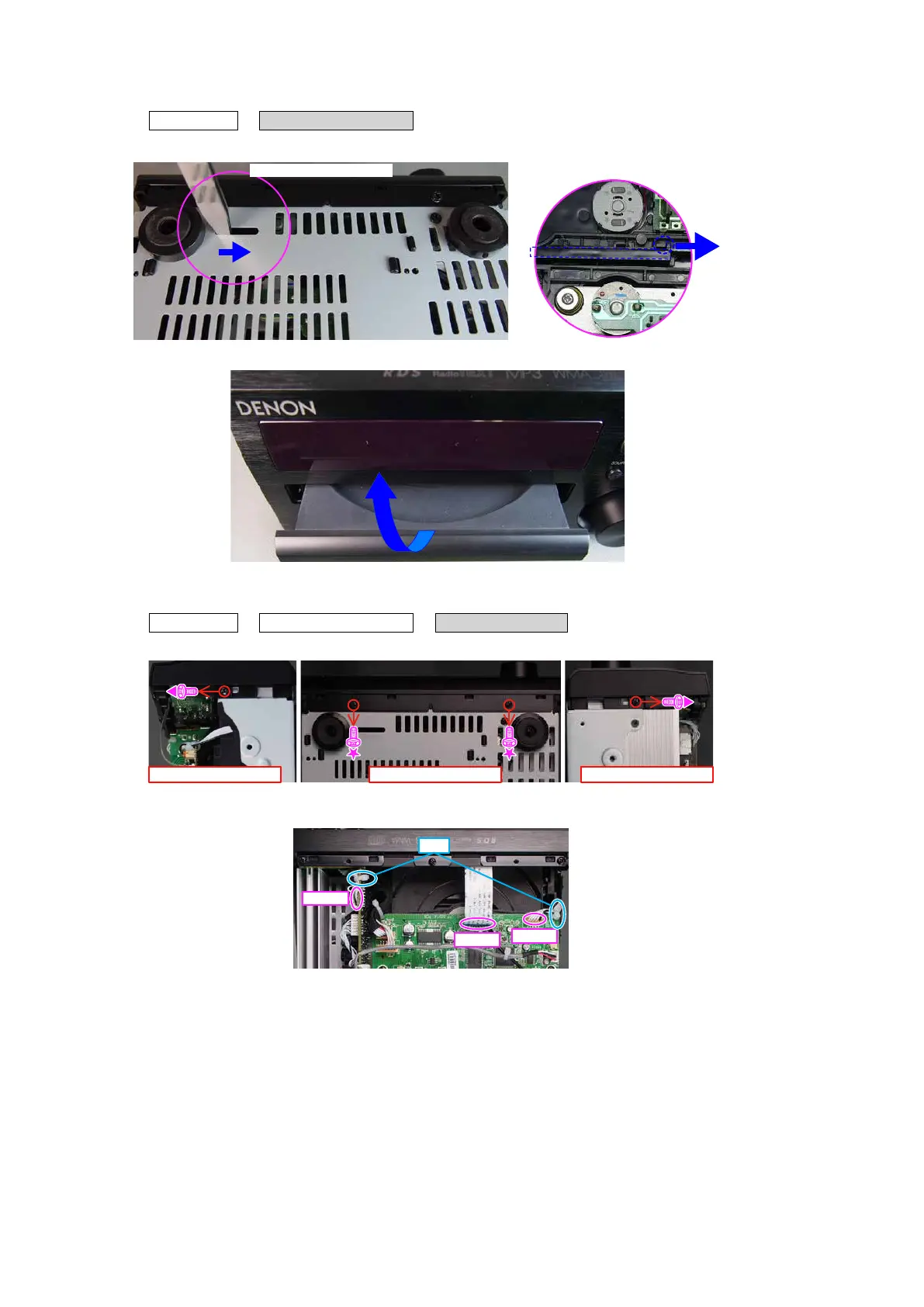

1. LOADER PANEL ASSY
Proceeding : TOP COVER
→
LOADER PANEL ASSY
(1) Tray is opened and CD DOOR is removed.
2. FRONT PANEL ASSY
Proceeding : TOP COVER
→
LOADER PANEL ASSY
→
FRONT PANEL ASSY
(1) Remove the screws.
(2) Cut the wire clamps, then remove the connector wires. Remove the FFC.
View from the bottom
View from the CD MECHA bottom
NOTE: Please remove slowly so as not to damage the hook of Tray and LOADER PANEL.
View from the bottomShooting direction: C Shooting direction: D
FFC
CN75
CN76
CUT
14
