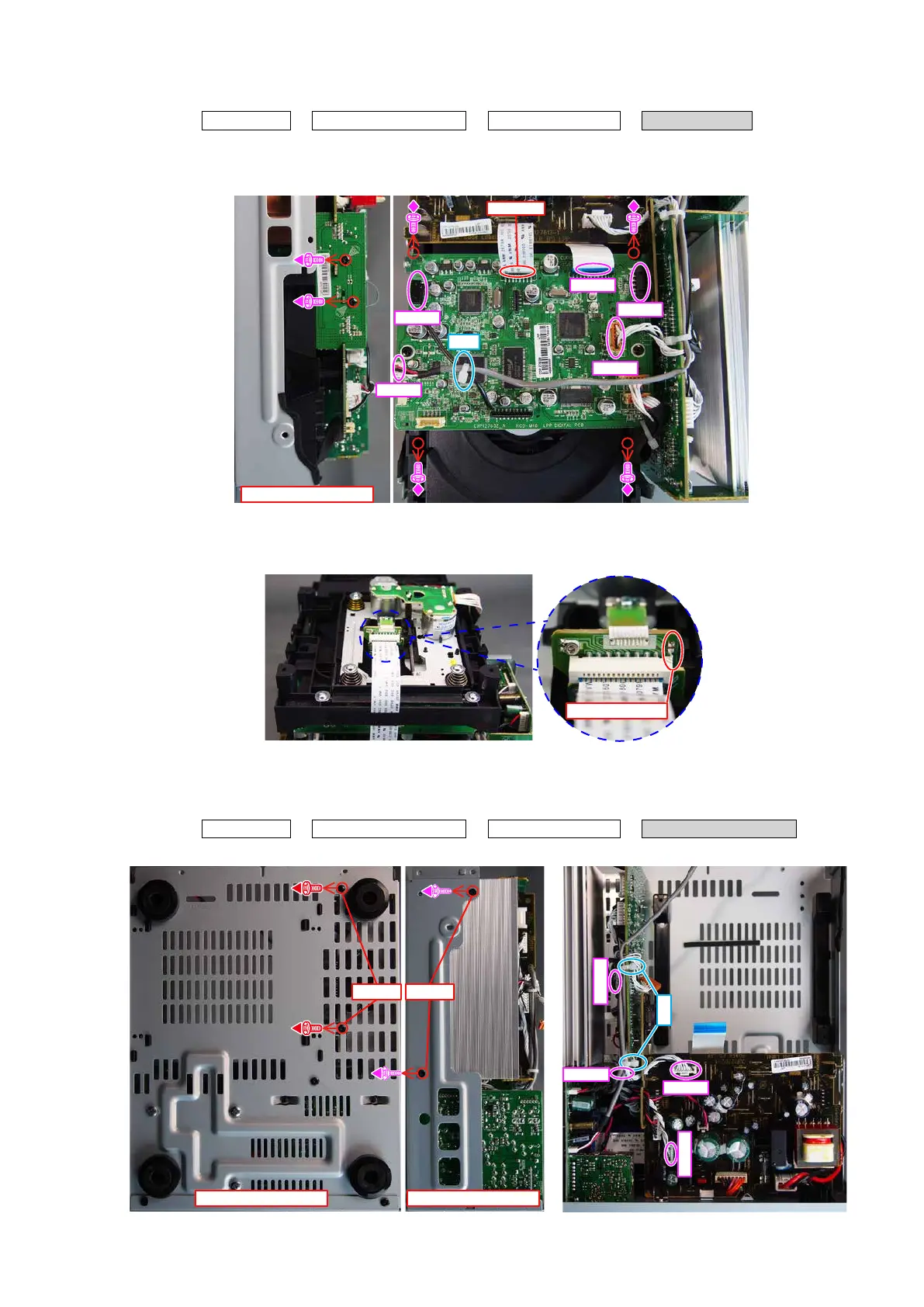

3. CD MECHA ASSY
Proceeding : TOP COVER
→
LOADER PANEL ASSY
→
FRONT PANEL ASSY
→
CD MECHA ASSY
(1) Remove the screws. Remove the connector wires.
Caution : Remove the FFC cable after the CD mecha's short circuit pattern for LD damage prevention has been short
circuited.
(2) Remove the FFC cable after the CD mecha's short circuit pattern for LD damage prevention has been short circuited.
Be sure to wear an earth band.
4. HEAT SINK SUB ASSY
Proceeding : TOP COVER
→
LOADER PANEL ASSY
→
FRONT PANEL ASSY
→
HEAT SINK SUB ASSY
(1) Remove the screws. Remove the connector wire.
Shooting direction: C
CUT
FFC
CN74
BN52
CN93
BN97
Caution
Soldering place
View from the bottom Shooting direction: D
STEP 1 STEP 2
CUT
CN95
CN71
BN73
CN72
15
To Next Page
