MB9AF316NA(DIGITAL:IC11)
10
FUJITSU SEMICONDUCTOR CONFIDENTIAL r2.0
DS706-00012-2v0-J
MB9A310Aシリーズ
端子配列図

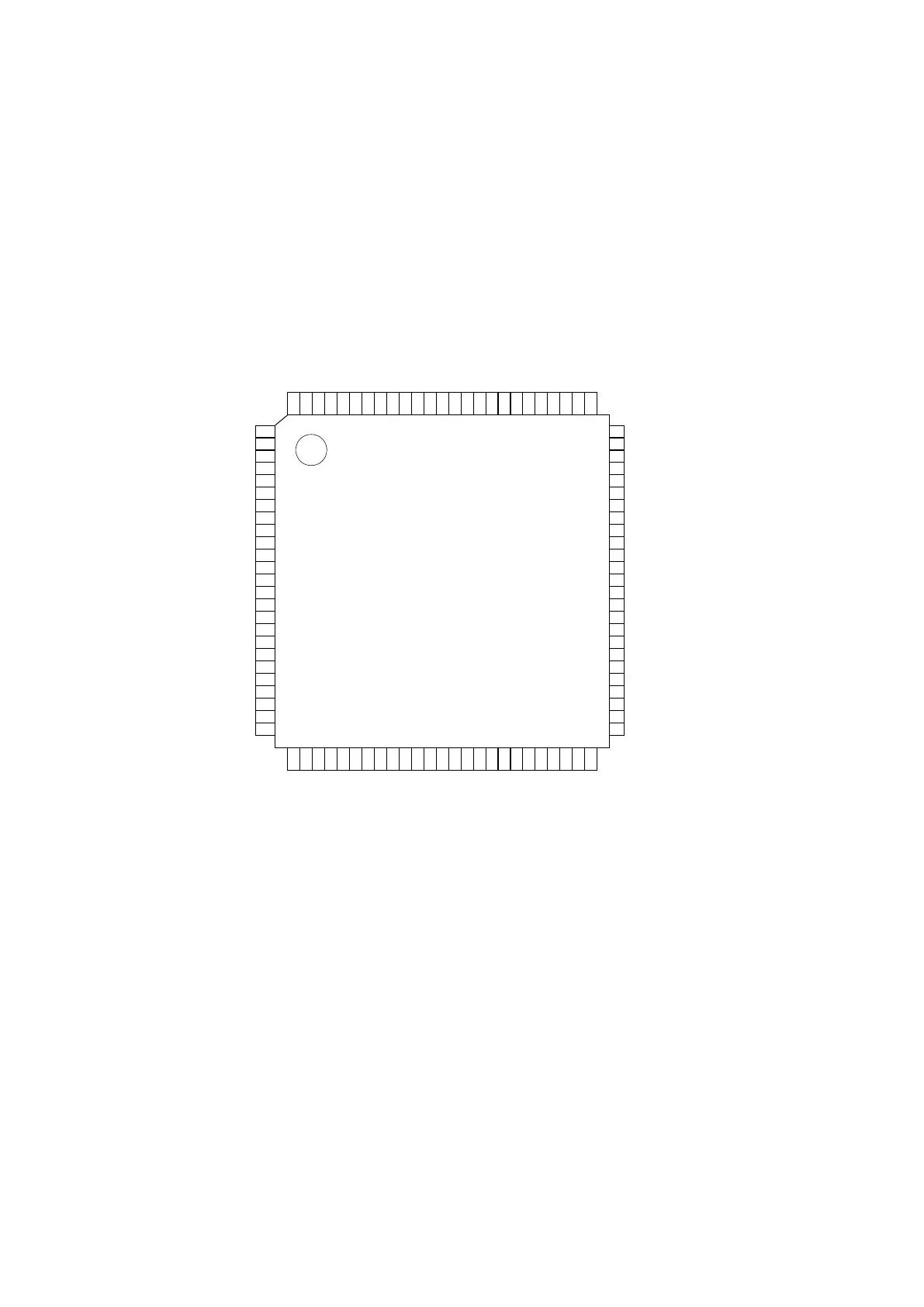

FPT-100P-M20/M23
(TOP VIEW)
VSS
P81/UDP0
P80/UDM0
USBVCC
P60/SIN5_0/TIOA2_2/INT15_1/MRDY_1
P61/SOT5_0/TIOB2_2/UHCONX
P62/SCK5_0/ADTG_3/MOEX_1
P63/INT03_0/MWEX_1
P0F/NMIX/CROUT_1
P0E/CTS4_0/TIOB3_2/IC13_0/MDQM1_1
P0D/RTS4_0/TIOA3_2/IC12_0/MDQM0_1
P0C/SCK4_0/TIOA6_1/IC11_0/MALE_1
P0B/SOT4_0/TIOB6_1/IC10_0/MCSX0_1
P0A/SIN4_0/INT00_2/FRCK1_0/MCSX1_1
P09/TRACECLK/TIOB0_2/RTS4_2/MCSX2_1
P08/TRACED3/TIOA0_2/CTS4_2/MCSX3_1
P07/TRACED2/ADTG_0/SCK4_2/MCLKOUT_1
P06/TRACED1/TIOB5_2/SOT4_2/INT01_1/MCSX4_1
P05/TRACED0/TIOA5_2/SIN4_2/INT00_1/MCSX5_1
P04/TDO/SWO
P03/TMS/SWDIO
P02/TDI/MCSX6_1
P01/TCK/SWCLK
P00/TRSTX/MCSX7_1
VCC
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
VCC 1 75 VSS
P50/INT00_0/AIN0_2/SIN3_1/RTO10_0/MADATA00_1 2 74 P20/INT05_0/CROUT_0/AIN1_1/MAD24_1
P51/INT01_0/BIN0_2/SOT3_1/RTO11_0/MADATA01_1 3 73 P21/SIN0_0/INT06_1/BIN1_1
P52/INT02_0/ZIN0_2/SCK3_1/RTO12_0/MADATA02_1 4 72 P22/SOT0_0/TIOB7_1/ZIN1_1
P53/SIN6_0/TIOA1_2/INT07_2/RTO13_0/MADATA03_1 5 71 P23/SCK0_0/TIOA7_1/RTO00_1
P54/SOT6_0/TIOB1_2/RTO14_0/MADATA04_1 6 70 P1F/AN15/ADTG_5/FRCK0_1/MAD23_1
P55/SCK6_0/ADTG_1/RTO15_0/MADATA05_1 7 69 P1E/AN14/RTS4_1/DTTI0X_1/MAD22_1
P56/INT08_2/DTTI1X_0/MADATA06_1 8 68 P1D/AN13/CTS4_1/IC03_1/MAD21_1
P30/AIN0_0/TIOB0_1/INT03_2/MADATA07_1 9 67 P1C/AN12/SCK4_1/IC02_1/MAD20_1
P31/BIN0_0/TIOB1_1/SCK6_1/INT04_2/MADATA08_1 10 66 P1B/AN11/SOT4_1/IC01_1/MAD19_1
P32/ZIN0_0/TIOB2_1/SOT6_1/INT05_2/MADATA09_1 11 65 P1A/AN10/SIN4_1/INT05_1/IC00_1/MAD18_1
P33/INT04_0/TIOB3_1/SIN6_1/ADTG_6/MADATA10_1 12 64 P19/AN09/SCK2_2/MAD17_1
P34/FRCK0_0/TIOB4_1/MADATA11_1 13 63 P18/AN08/SOT2_2/MAD16_1
P35/IC03_0/TIOB5_1/INT08_1/MADATA12_1 14 62 AVSS
P36/IC02_0/SIN5_2/INT09_1/MADATA13_1 15 61 AVRH
P37/IC01_0/SOT5_2/INT10_1/MADATA14_1 16 60 AVCC
P38/IC00_0/SCK5_2/INT11_1/MADATA15_1 17 59 P17/AN07/SIN2_2/INT04_1/MAD15_1
P39/DTTI0X_0/ADTG_2 18 58 P16/AN06/SCK0_1/MAD14_1
P3A/RTO00_0/TIOA0_1 19 57 P15/AN05/SOT0_1/IC03_2/MAD13_1
P3B/RTO01_0/TIOA1_1 20 56 P14/AN04/SIN0_1/INT03_1/IC02_2/MAD12_1
P3C/RTO02_0/TIOA2_1 21 55 P13/AN03/SCK1_1/IC01_2/MAD11_1
P3D/RTO03_0/TIOA3_1 22 54 P12/AN02/SOT1_1/IC00_2/MAD10_1
P3E/RTO04_0/TIOA4_1 23 53 P11/AN01/SIN1_1/INT02_1/FRCK0_2/MAD09_1
P3F/RTO05_0/TIOA5_1 24 52 P10/AN00
VSS 25 51 VCC
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
VCC
P40/TIOA0_0/RTO10_1/INT12_1
P41/TIOA1_0/RTO11_1/INT13_1
P42/TIOA2_0/RTO12_1
P43/TIOA3_0/RTO13_1/ADTG_7
P44/TIOA4_0/RTO14_1/MAD00_1
P45/TIOA5_0/RTO15_1/MAD01_1
C
VSS
VCC
P46/X0A
P47/X1A
INITX
P48/DTTI1X_1/INT14_1/SIN3_2/MAD02_1
P49/TIOB0_0/IC10_1/AIN0_1/SOT3_2/MAD03_1
P4A/TIOB1_0/IC11_1/BIN0_1/SCK3_2/MAD04_1
P4B/TIOB2_0/IC12_1/ZIN0_1/MAD05_1
P4C/TIOB3_0/IC13_1/SCK7_1/AIN1_2/MAD06_1
P4D/TIOB4_0/FRCK1_1/SOT7_1/BIN1_2/MAD07_1
P4E/TIOB5_0/INT06_2/SIN7_1/ZIN1_2/MAD08_1
PE0/MD1
MD0
PE2/X0
PE3/X1
VSS
LQFP - 100
(注意事項) XXX_1, XXX_2 のように「_ (アンダバー)」がついている端子の、「_」以降の数字はリロ
ケーションポート番号を示しています。
これらの端子は 1 つのチャネルに複数の同一機能の端子が用意されていますので、拡張
ポート機能レジスタ(EPFR)で使用する端子を選択してください。
