Denon RCD-M40

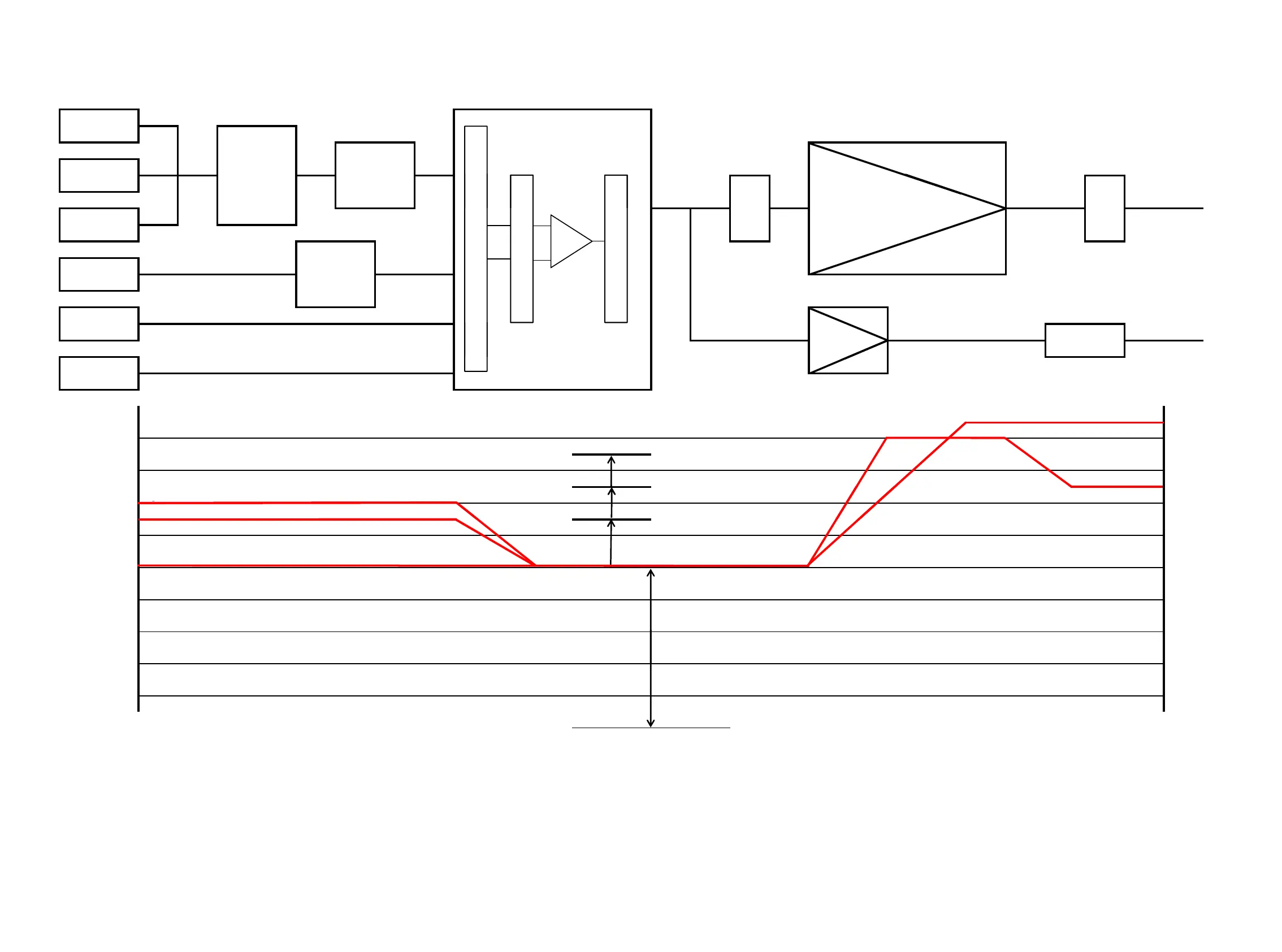

LEVEL DIAGRAM
INPUT SECTION NJW1194V
STK433-060N
POWER AMPLIFIER
RCD-M40 LEVEL DIAGRAM
DIR
PCM9211PTR
DAC
PCM5100
CD PCB
DAB PCB
(With FM)
FUNCTION SWITCH
RELAY
MUTE
SPK OUT
H/P OUT
DAC
PCM5100
MUTE
Digital_IN
USB PCB
Analog_IN
FUNCTION SWITCH
MASTER VOLUME
TONE CONTROL
H/P AMP
NJM8068G
+35dB SPK OUT
20dB NJW1194 MAX Out 4.2Vrms(12dB) 25W/6Ω
+26dB
H/P GAIN LOW
12.25V
10dB
SDB +8dB 1.65Vrms H/P OUT
0dB Dig IN/CD/USB 1kHz 0dB 1.0V/32Ω
MUTE
H/P OUT
Tuner PCB
0dB
Dig IN/CD/USB 1kHz 0dB
1.0V/32Ω
DAB 1kHz 0.7V Tone +10dB 0.65Vrms
-10dB
-20dB Ana IN 210mV (+50mV)
FM 30% MOD 200mV
-30dB
-40dB
S/N : 97dB typ
-50dB
-50dB
-60dB
Output Noise Level -117dBv typ
