16

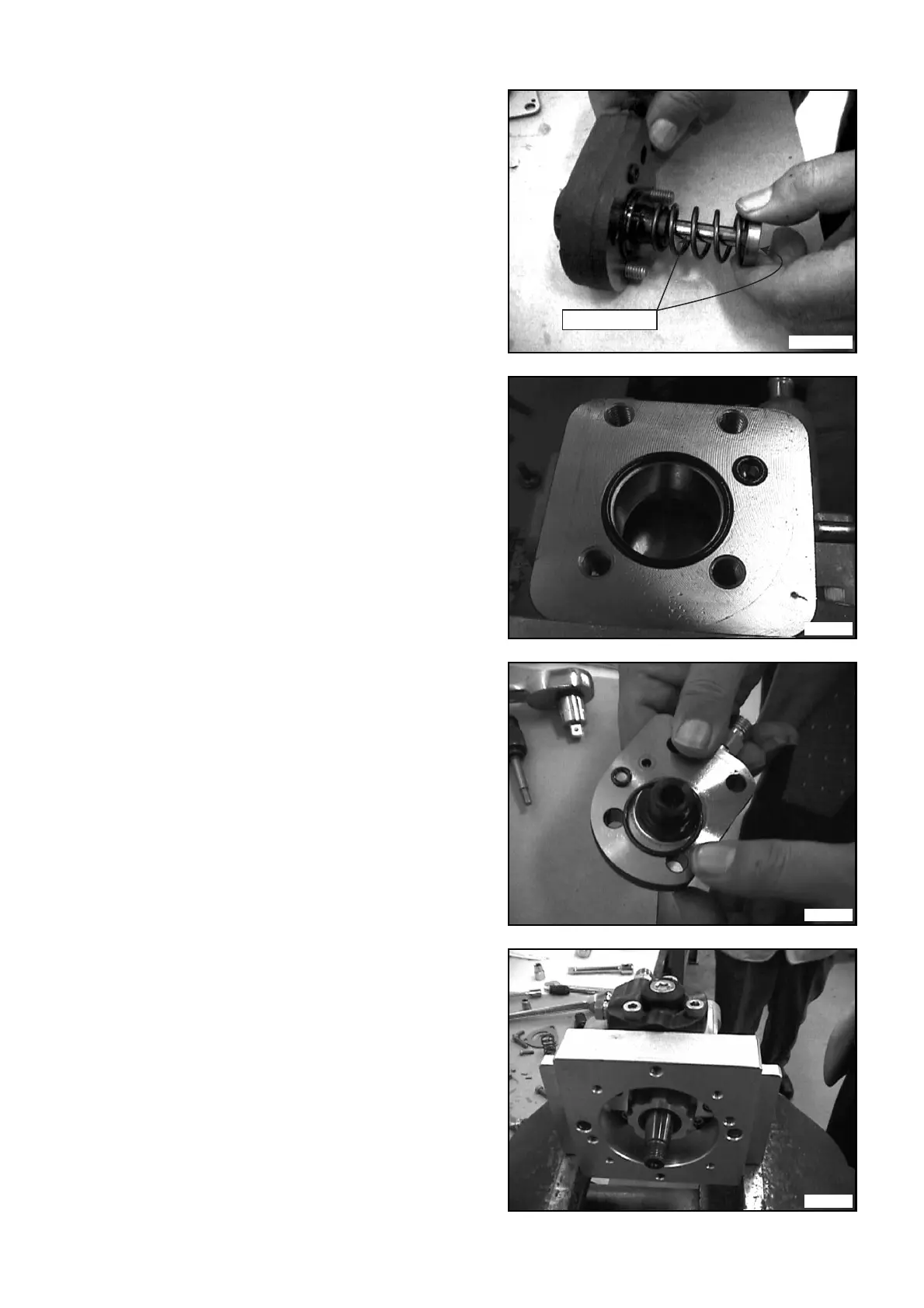

(5) Taking the plunger straight out of the element
sub-assembly, remove the plunger and the
spring.
NOTE:
As much as possible, avoid touching the
polished parts of the plungers and the surfaces
that contact the ring cam.
(6) Remove three O-rings from pump body (or from
the side of the element sub-assembly, if at-
tached).
NOTE:
When removing the O-ring, be careful not to
damage the part's O-ring groove. (Please do
not use sharp metal objects to remove.)
ADVICE:
The illustration on the right shows the element
sub-assembly with O-rings attached.
(7) Secure the pump as shown at right to remove
the element sub-assembly on the opposite
side.
Polished parts
Q000042E
QD0886
QD0887
QD0888
