8529-0637-2M Rev C DL Series Owner’s Manual
PRINTER, CONT.

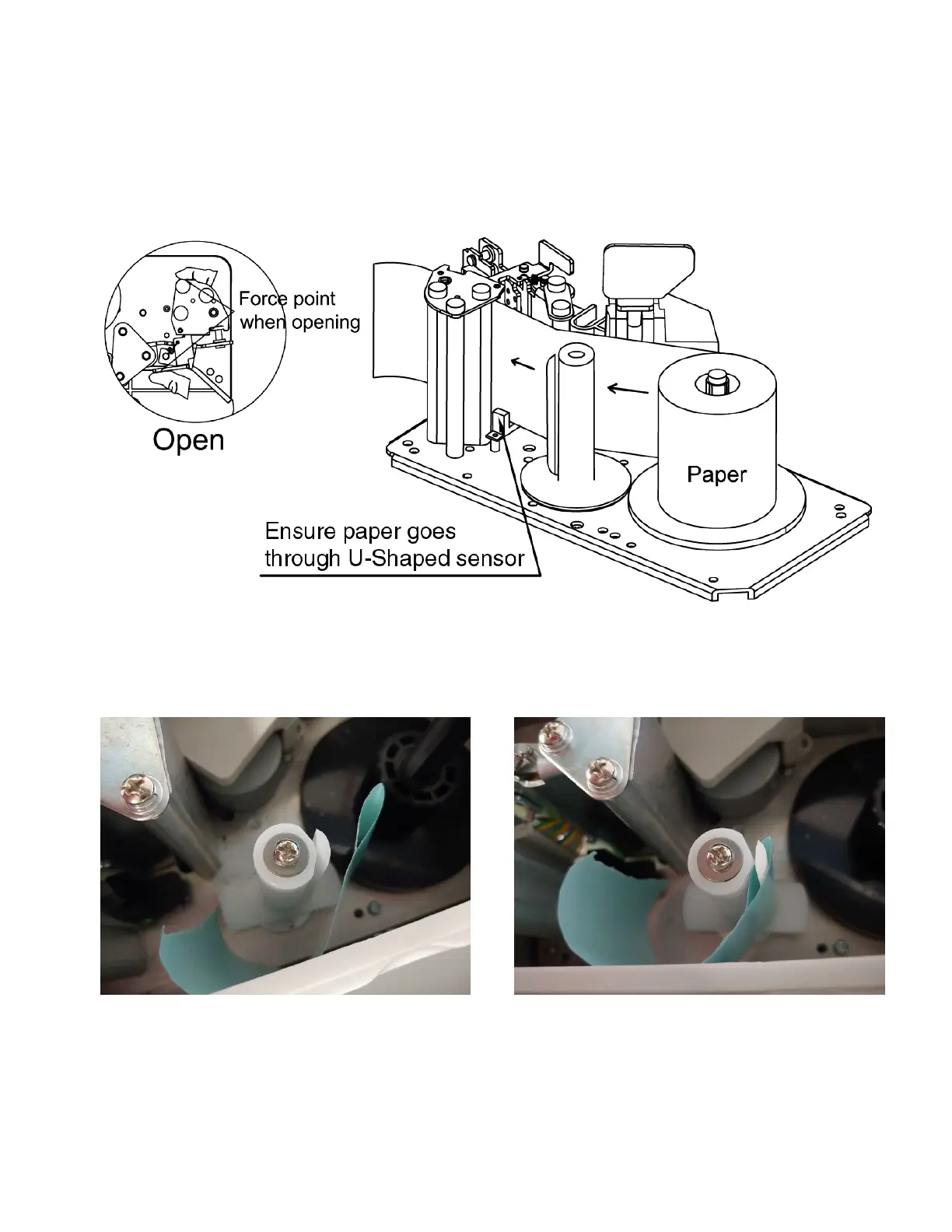

Step 3 – Install Paper Ensuring It Is Through Sensor
Open the printhead. Peel off some labels so that there is about 12” (30 cm) of blank paper.
Install the roll and loosely run the paper around the printhead and then around the thin chrome
bar in front of the printhead and finally back toward the return spool shaft.
Step 4 – Attach Paper to Return Spool Shaft
Make a loop at the end of the paper, tape it together, and then slide the loop over the finger of
the return spool.
Now manually turn the return spool shaft counter-clockwise until it wraps around a time or two.
NOTE: The paper should wrap around the return spool shaft enough times so it won’t slip.
To Next Page
