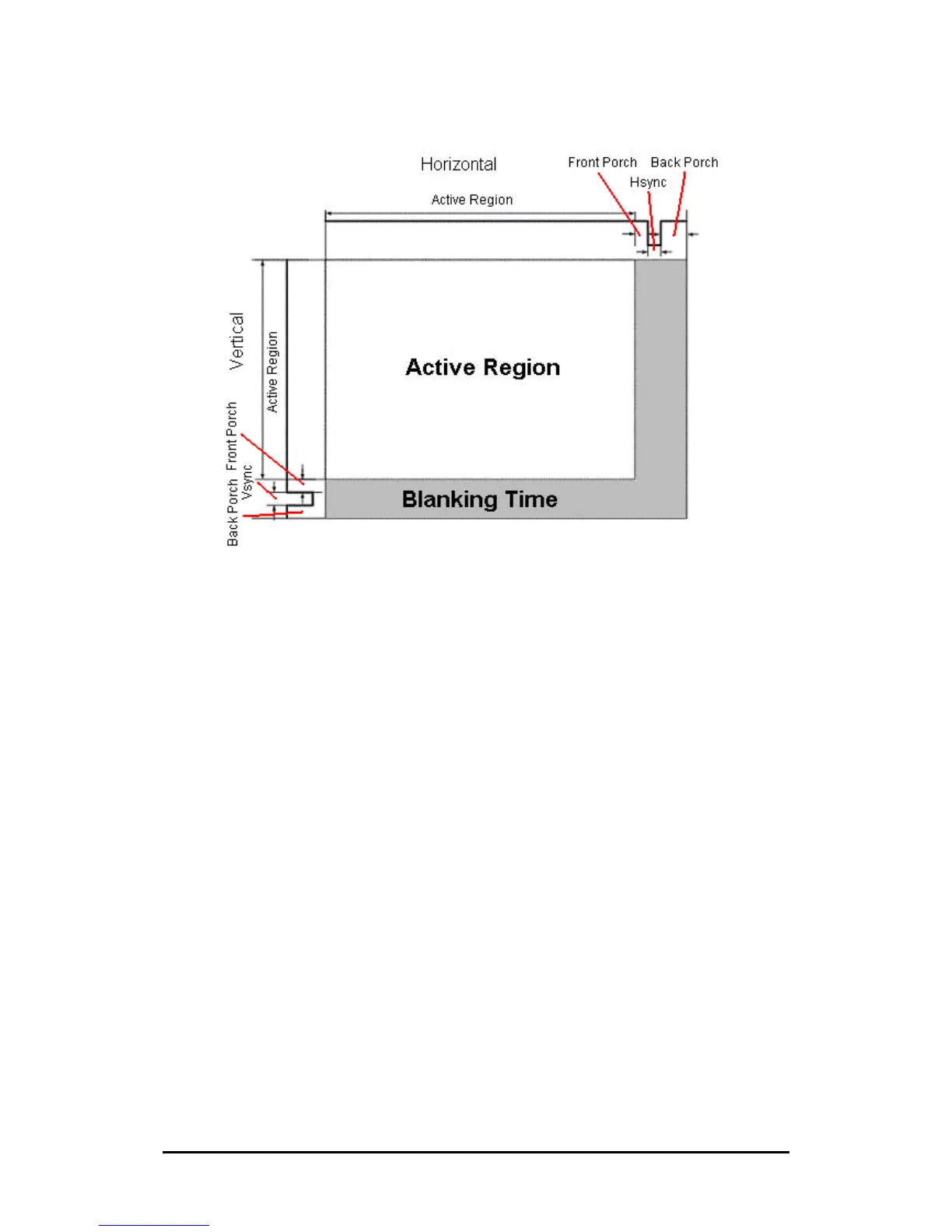

Simple mathematical relationships link the different values together:
• V Blanking Interval = V sync + V Back Porch + V Front Porch
• H Blanking Interval = H sync + H Back Porch + H Front Porch
• V Total Size = V Blanking Interval + Active Area Height
• H Total Size = H Blanking Interval + Active Area Width
• Line Frequency = Frame Rate x V Total Size
Pixel Frequency = Line Frequency x H Total Size = Frame Rate x V Total Size x H Total Size
