DIMAX804KC User’s Manual
4 DEXON Systems
2 INTERFACES AND OPERATION
2.1 General Overview
Input Signals Processed
• DVI
DVI 1.0
from 640x480 up to 1920x1200@60Hz
• HDMI
HDMI 2.0 and HDCP 2.2 specifications
from 640x480 up to 4096x2160@30Hz
Output Signals
• HDMI
HDMI 2.0 and HDCP 2.2 specifications
from 640x480 up to 4096x2160@30 Hz
• HDBaseT outputs
Cat5/6 cable up to 100m (330 feet)
from 640x480 up to 4096x2160@30Hz
Audio handling
• R, L analogue audio input
• R, L analogue audio output
• HDMI embedded audio output
2.2 Front Panel

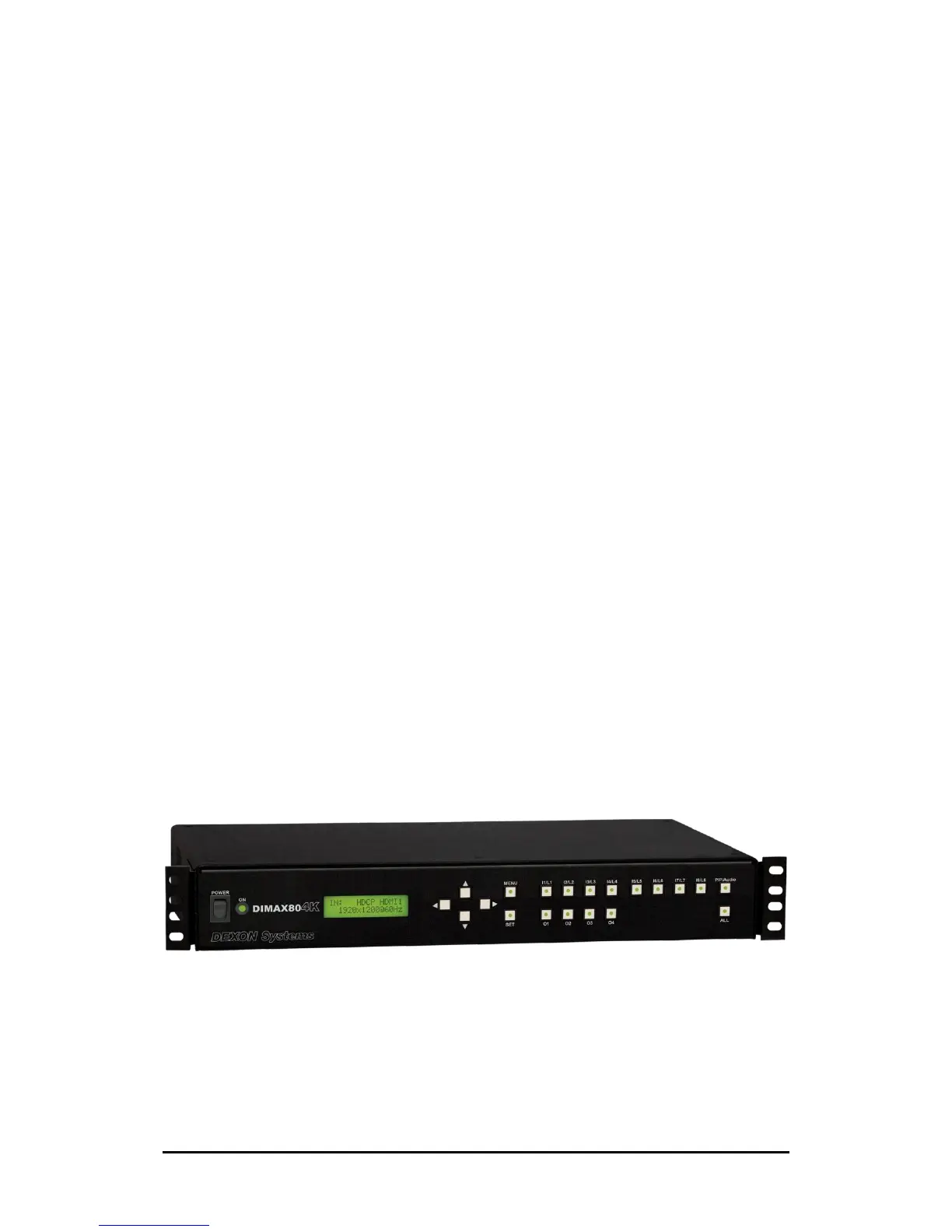

Figure 2-1. Front Panel
