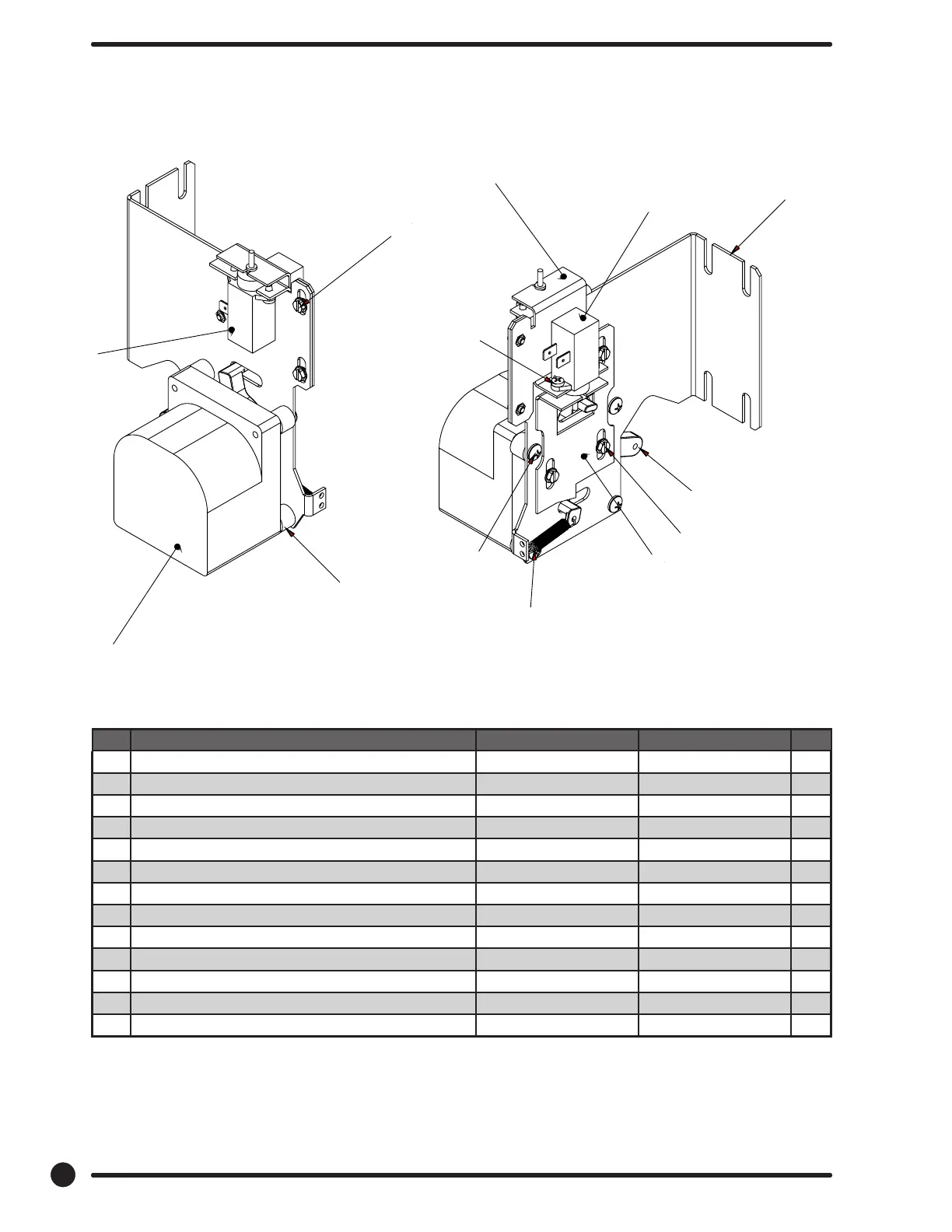

Gear Motor Door Lock Assembly 24V AC
1
6
2
9
5
9
3
7
11
4
8
6
10
Key Description T900 T1200 QTY
* Actuator Assembly (Includes 1-10, Rod NOT included) 9892-015-002 9892-015-002 1
1 Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 1
2 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 1
3 Bracket Slide Lock 9029-204-001 9029-204-001 1
4 Spacer, Plastic 9538-157- 021 9538-157-021 4
5 Arm - Door Lock 9001-063-001 9001-063-001 1
6 Thermoactuator - Door Lock Relay 24VAC 9586-001-003 9586-001-003 2
7 Spring - Extension 9534-350-001 9534-350-001 1
8 Motor & Gear Assembly 24VAC 9914-137-009 9914-137-009 1
9 Screw -Hxwshrhdslsems, 6-32 x 3/16 9545-044-003 9545-044-003 6
10 Cross Recessed PAn Hd Tapping screw 9545-031-011 9545-031-011 4
11 Screw Pnhdcr, 10-32 UNFx0 .75 9545-012-029 9545-012-029 4
* Rod, Door Lock 9497-225-015 9497-225-015 1
106
Part # 8533-083-001 1/18
