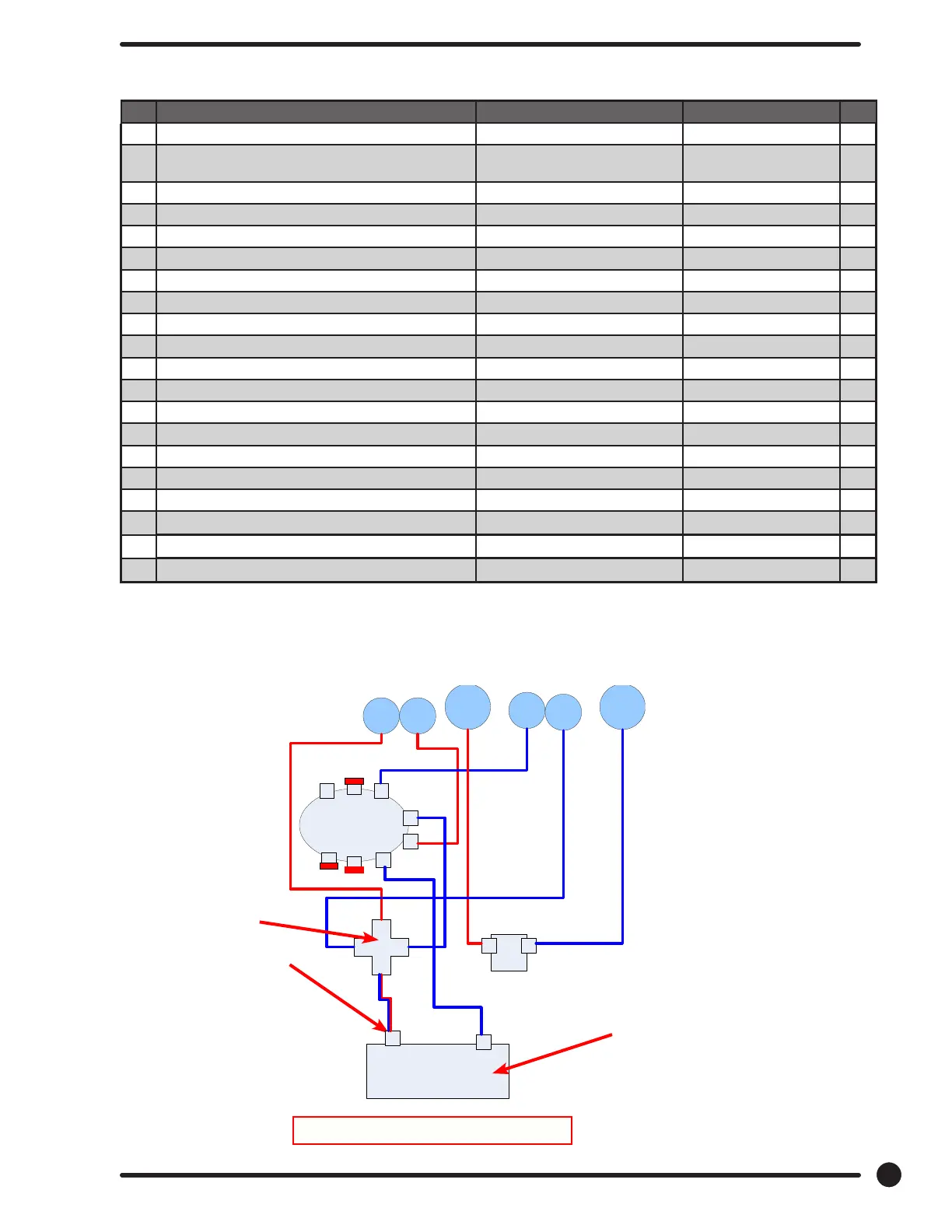

Water Inlet Part # by Model
Key Description T900 T1200 QTY
A Injector Assembly 9883-012-001 9885-012-001 1
1 Valve, Water Inlet (dual outlet) (see Water Inlet Valve
Breakdown for individual parts)
9379-183-012 9379-183-012 2
* Screw, Valve Mtg 9545-008-026 9545-008-026 2
2 Valve Water Inlet (single outlet) 9379-194-001 9379-194 -001 2
* Screw, Valve M4x0.7x8mm 9495-064-001 9545-064-001 8
3 Clamp-Water Valves 8654-117- 008 8654-117-008 AR
* Shield over Water Valves Plastic 9550-195-001 9550-195-001 1
*
Clip-Push 9083-121- 001 9083-121-001 4
4 Vacuum Breaker 9610-001-001 9610-001-001 1
5 Bracket, Vacuum Breaker 9029-077-001 9029-077-001 1
* Screw 9545-008-026 9545-008-026 4
6 New Front Mount Soap Box, 2 port 9732-290-001 1
7 Fitting, Cross (new soap bhox) 8615-118-001
* Clamp, Vacuum Breaker End 8654 -117-014 8654-117-014 1
9 Hose, Vacuum Breaker to Tub Injection Tube 9242-461-001 9242-461-001 1
10 Flow restrictor 9475-002-002 9475-002-002 2
13 Flow restrictor 9475-002-002 9475-002-003 3
* Tub Fill Inlet Cap 0935-135-001 2
14 Plate-Water Valves, Mounting 9452-814-001 9452-814-001 1
15 Nut, #10-32UNF, 2B 8460-413-002 8460-413-002 4
6
7
13
New Front Soap Box Design
89
Part # 8533-083-001 1/18
