Dexter Laundry A Series Service Manual

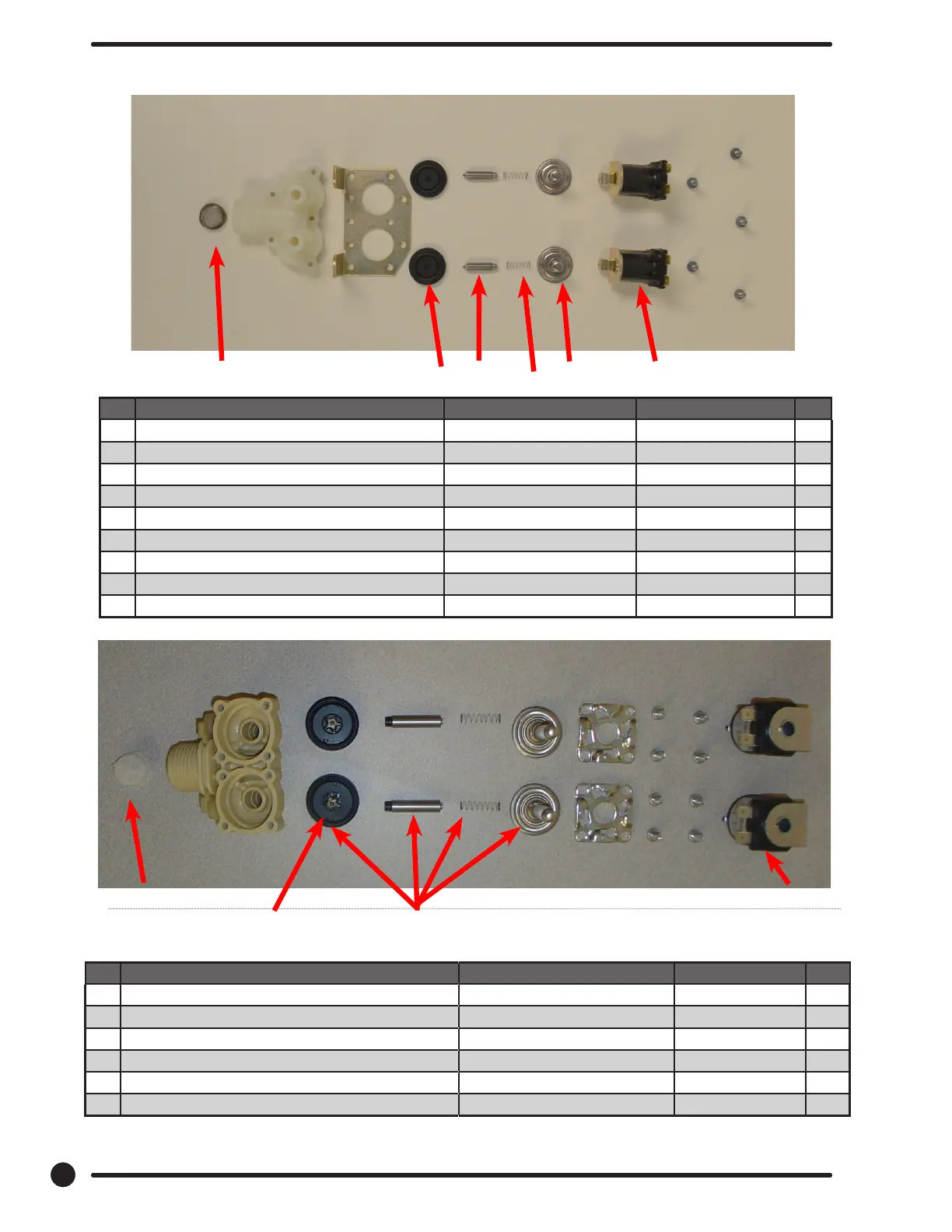

Water Inlet Valve Breakdown Part # by Model
Key Description T900 T1200 QTY
* Dual Coil Water Valve Mueller 9379-192-001 9379-192-001 1
7 Valve Water Body Complete(no coil) 9379-192-002 9379-192-002 1
8 Diaphragm Mueller 9118-054-001 9118-054-001 2
9 Filter Mueller 9183-046-001 9183-046-001 2
10 Coil Mueller 9089-051-001 9089-051-001 2
11 Diaphragm Assembly Mueller Includes 9785-001-001 9785-001-001 2
Optional Water Valve
11
9
8
10
1
6
5
3
24
Key Description T900 T1200 QTY
* Valve, Water Inlet (includes 1 thru 6) 9379-183-012 9379-183-012 2
1 Screen, Inlet end of valve 9555-056-001 9555-056-001 2
2 Coil Assy., 120 V Invensys 9089-017-001 9089-017-001 2
* Diaphragm Invensys (EPDM) 9118-049-001 9118-049-001 2
* Diaphragm Invensys (Viton) 9118-049-002 9118-049-002 2
3 Diaphragm Invensys (EPDM NSF) 9118-049-003 9118-049-003 2
4 Guide, Solenoid Invensys 9211-021-002 9211-021-002 2
5 Armature Invensys 9015-008-001 9015-008-001 2
6 Spring, Armature Invensys 9534-298-001 9534-298-001 2
90
Part # 8533-083-001 1/18
