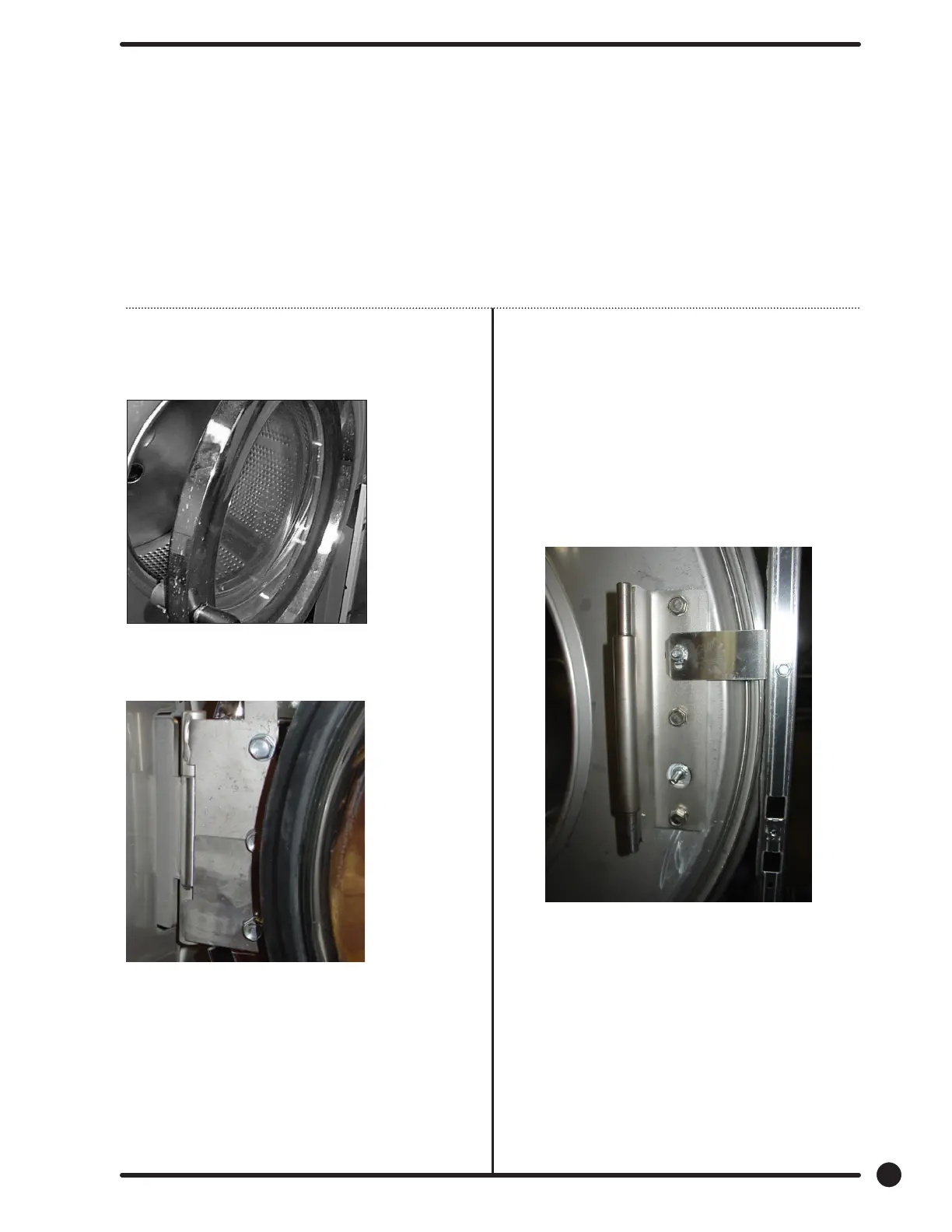

Adjusting the Loading Door

The door can be adjusted by changing the number of shims behind the door hinge and the door lock

assembly. The vertical t of the door to the tub can be altered by loosening the door hinge bolts and

raising or lowering the door before retightening. It is important for the door to be centered on the tub

front. By chalking the front of the tub and closing the door to transfer that line to the gasket, the centering

can be evaluated. It is also important for door pressure to be similar around the door perimeter. Door

pressure can be evaluated by inserting a dollar bill in several positions and tugging on it. See Parts Section

for kit to increase door sealing pressure.

Loading Door Removal

Step 1: Support door to prevent

dropping.

Step 2: Remove 2 bolts holding the

lower leaf hinge and set

door o.

Loading Door Hinge Removal

Step 1: First remove loading door, front panel,

and trim ring.

Step 2: Remove 3 screws holding door hinge.

Shims may be present between hinge

and tub front. The number may be

increased or decreased to adjust right

side door pressure.

NOTE:

Door hinge mounting bolts penetrate tub

front and require silicone sealer applied to

holes when reinstalling.

Part # 8533-083-001 1/18

Dexter Laundry A Series Service Manual
