Key Description T900 T1200 QTY

1 Door Hinge Assembly (mounts to tub front) 9955-031-001 9955-031-001 1

* Door Assembly Complete 9960-310-001 9960-310-001 1

2 Door Ring 180 degree large hnge 9487-275-001 9487-275-001 1

3 Door Gasket 9206-431-001 9206-431-001 1

4 Door Glass Window 9635-020-001 9635-020-001 1

* Red Wire (Door Close Switch) 8220-063-028 8220-063-028 1

Black Wire (Door Close Switch) 8220-063-029 8220-063-029 1

5 Switch, Door Hinge Close (Plunger) 9539-492-001 9539-492-001 1

6 Top Door Hinge Leaf (No pin) 9845-006-001 9845-006-001 1

7 Bottom Door Hinge Leaf 9845-007-001 9845-007-001 1

8 Thrd Form Screw, Door Mtg 5/16” x 5/8” 9545-056-002 9545-056-002 4

9 Screw, Loading Door Hinge Mtg

(5/16” x9/16” ss)

9545-014-013 9545-014-013 3

10 Bracket Retainer support side panel 9046-085-001 9046-085-001 1

* Shim Large door 9552-043-001 9552-043-001 1

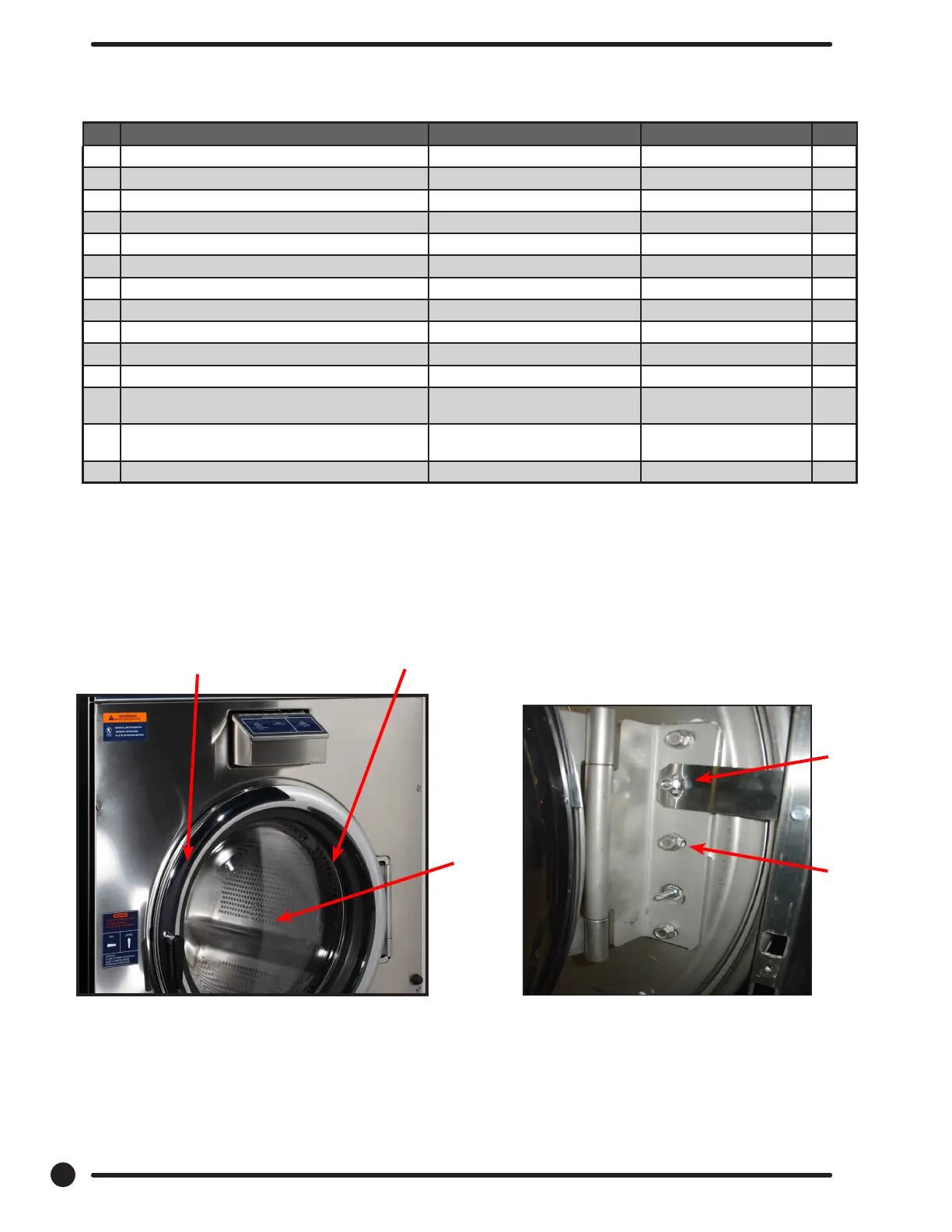

Large Door & Hinge Group

(After #514975)

Part # 8533-083-001 1/18
