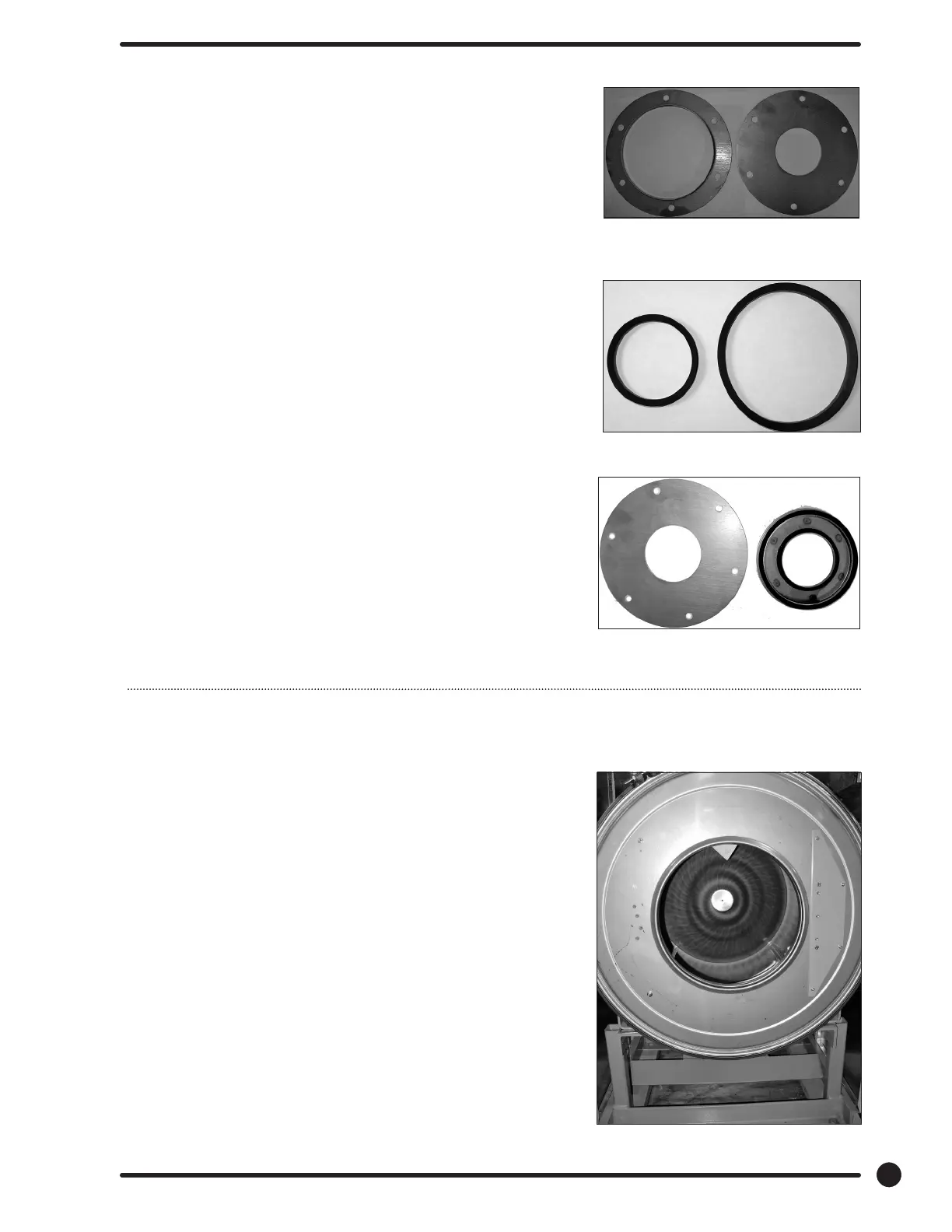

Water Seals
Replacement
Step 1: Remove cylinder from washer (see Cylinder (basket)
removal).
Step 2: Remove water seals from the seal mounting plate on
the cylinder shaft. These are removed with your ngers.
Step 3: The primary and secondary seals that mount on the
sealing ring may be slid over the shaft and seated on
the metal sealing ring with your ngers. In the unlikely
event that the metal ring that mounts these sealing
rings were to be damaged or moved, a new one would
need to be pressed on. The seal mounting ring must be
pushed against the stop on the shaft. After installing
the seals, lubricate the faces of the seals with silicone
grease.
Step 4: Install cylinder (see Cylinder (basket) reassembly).
Guard Ring & Mating Ring
Seals
Mating Ring & Mounting Ring
Outer Tub
Removal
Step 1: The outer tub can easily be removed when the tub front,
cylinder and bearing housing has been removed as
outlined previously.
Step 2: At that point the only attachments to the chassis are the
two front strap mounting bolts.
49
Part # 8533-083-001 1/18
