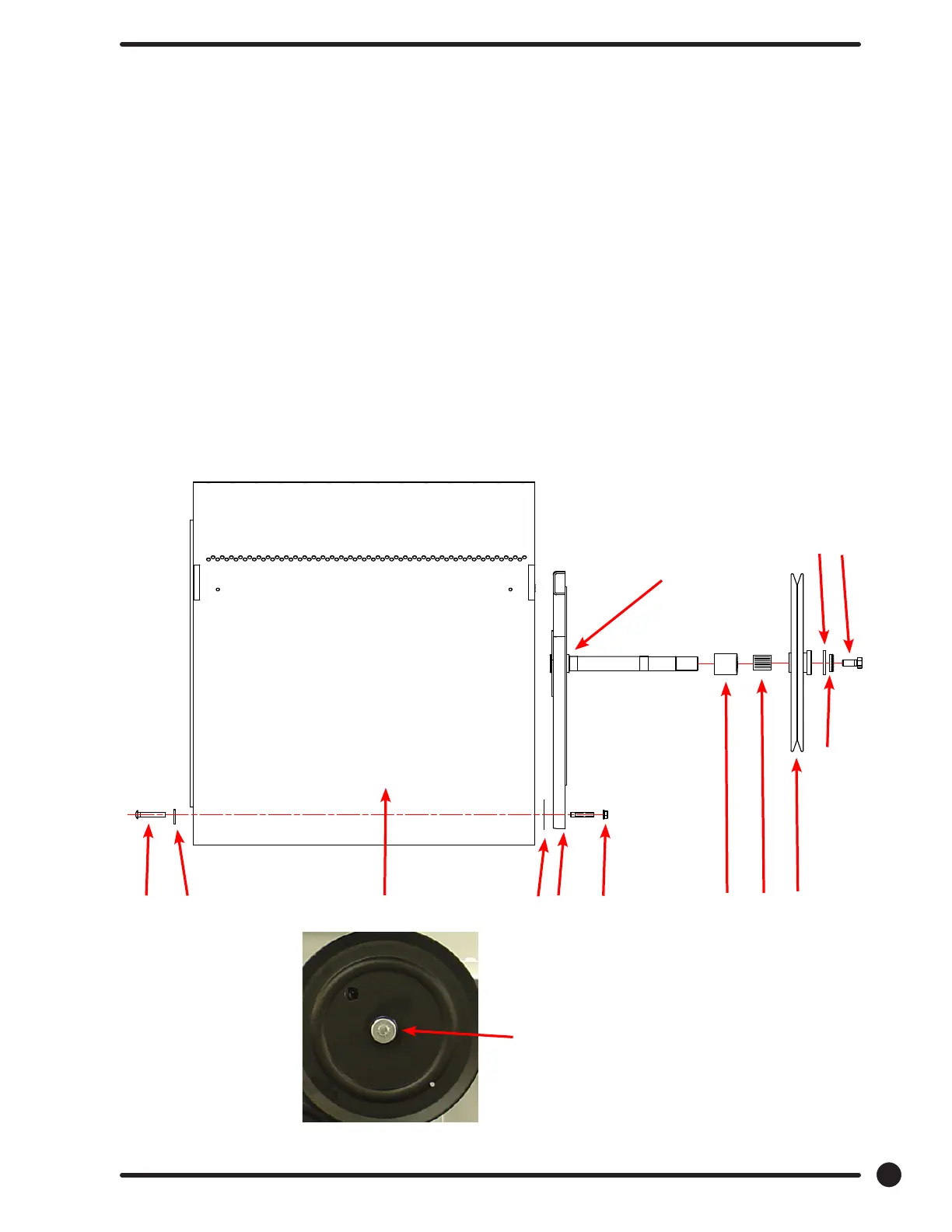

Tumbler Group
Key Part Number Description Quantity
* 9848-147-001 Tumbler Assy Complete W/Spider (GALV) ..................................... 1
* 9848-142-002 Tumbler Assy Complete W/Spider (SS & Galv front) ......................1
1 9848-146-001 Tumbler Assy (Galvinized) ...........................................................1
1 9848-146-002 Tumbler Assy (Stainless Galvinized front) .....................................1
2 9497-019-003 Rod, Tumbler .............................................................................3
3 8641-554-001 Washer, Special ..........................................................................3
4 9552-013-003 Shim ...................................................................................... AR
5 9568-015-001 Spider Assy ................................................................................ 1
6 8640-415-004 Nut, Wiz Lock ............................................................................3
7 9538-164-002 Spacer-Shaft ..............................................................................1
8 9487-234-005 Tolerence Ring ...........................................................................1
9 9908-049-002 Pulley, Driven .............................................................................1
10 8641-581-026 Washer -Flat ..............................................................................1
11 8641-582-016 LockWasher - IntTooth, 1” ..........................................................1
12 9545-017-009 Screw, 1/2-13x1 1/4 ...................................................................1
10, 11, 12
87
Part # 8533-090-001 7/21
