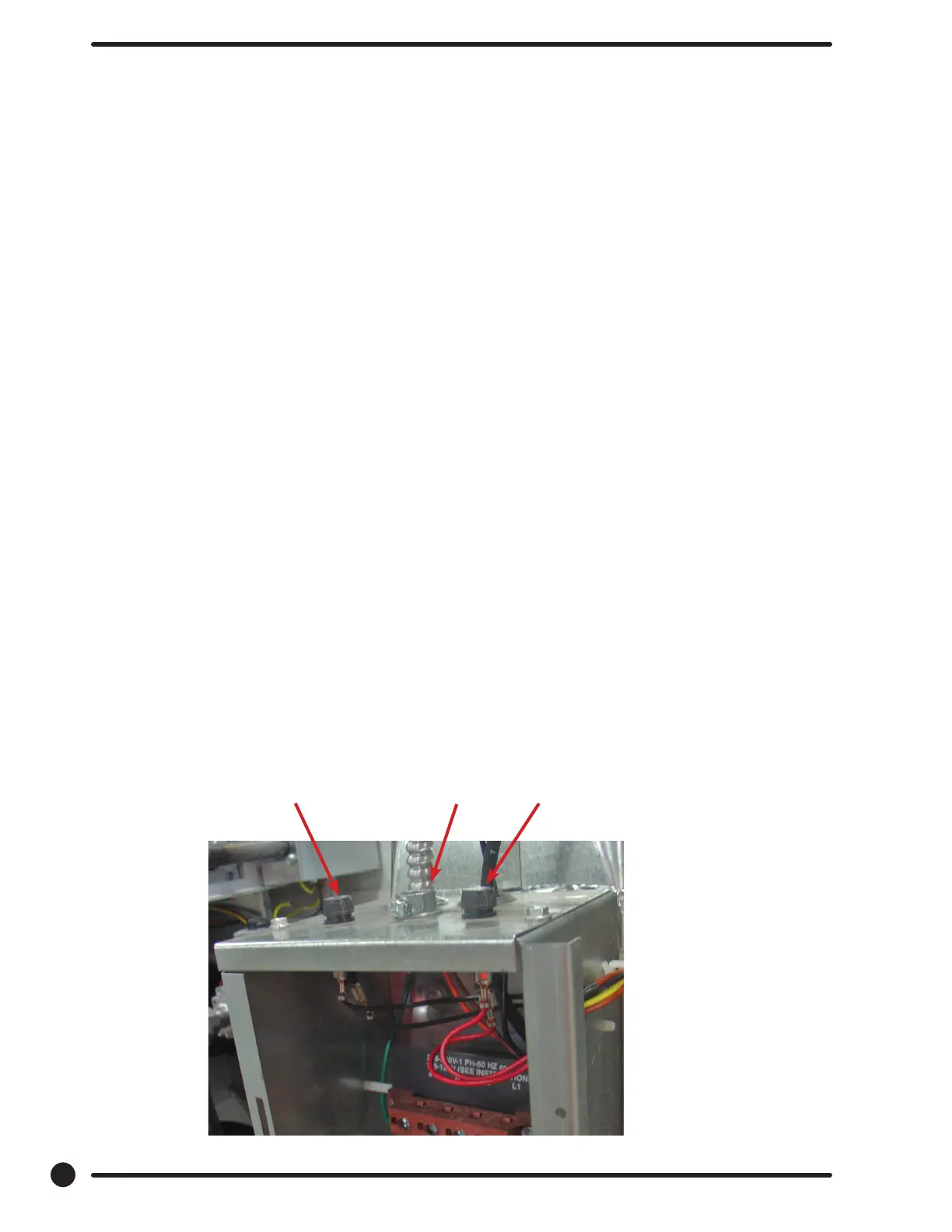

Control Protection Fuse
2.5 Amp
Ignition Upper Pocket
Protection Fuse 1.5 Amp
Not Shown:
24VAC Ignition Lower
Pocket Protection
Fuse
Control Assembly Group
Key Part Number Description Quantity
* 9857-169-011 Control Assmbly Complete (all below included) ............................. 1
* 9074-317-001 Control Box Cover ...................................................................... 1
1 8653-068-003 Connector Conduit 3/8” STR ........................................................ 1
2 9558-031-001 Strip Terminal Marker (Behind Input Power) to above #3 ............... 1
3 9897-035-001 Terminal Block Assembly Main Power Inlet ................................... 1
* 9545-008-024 Screws 10AB x 3/8” .................................................................... 4
* 9627-859-003 Wire Harness - Power Main ......................................................... 1
4 8220-001-478 Wire Assembly Green 7” ............................................................. 1
5 9545-008-027 Screw # 10-32 x 12 Green .......................................................... 1
* 8641-582-006 Lockwasher Ext Tooth #10 .......................................................... 1
6 9897-026-002 Terminal Block Main Power Middle ............................................... 1
7 9897-026-001 Terminal Block ............................................................................ 2
* 9545-045-012 Screw #8 ABxl 2 for terminal block .............................................. 6
8 8711-013-001 Transformer Control............................................................................1
* 9545-008-024 Screws 10AB x 3/8” .................................................................... 4
9 9857-182-001 Ignition Control ......................................................................... 2
* 9545-008-018 Screws 10AB x 3/4” .................................................................... 4
10 9631-403-009 Wire Assembly High Voltage Upper .............................................. 1
11 9627-867-005 Wire Harness Ignition Control Upper ............................................. I
12 9631-403-008 Wire Assembly High Voltage Lower .............................................. 1
13 9627-867-006 Wire Harness Ignition Control Lower ............................................. I
* 9053-067-002 Bushing Wire 7/8” ....................................................................... 4
14 9200-001-002 Fuseholder Assembly .................................................................. 3
* 8636-018-001 Fuse 1.5 Amp ............................................................................. 2
* 8636-018-004 Fuee 2.5 Amp......................................................................................1
15 5192-299-002 Relay Power ............................................................................... 2
* 9545-045-012 Screws Power #8 AB x 1/2” ......................................................... 4
* 8220-062-036 Wire Assembly Red/Black 14” ...................................................... 1
* 8220-062-037 Wire Assembly Red/White 14” ..................................................... 1
16 9627-864-006 Wire Harness Motor Extension ..................................................... 2
17 9527-007-001 Stand O - Wire Saddle / Arrowhead ........................................... 5
18 9627-863-001 Wire Harness Main Extension Access Under Burner Housing .......... 4
* 9083-124-001 Clip, Cable Edge (w/wiretie) (After Serial D1.19219.026) ................. 4
114 14
94
Part # 8533-090-001 7/21
