Dexter Laundry DC30X2NC-39AC1X User Manual

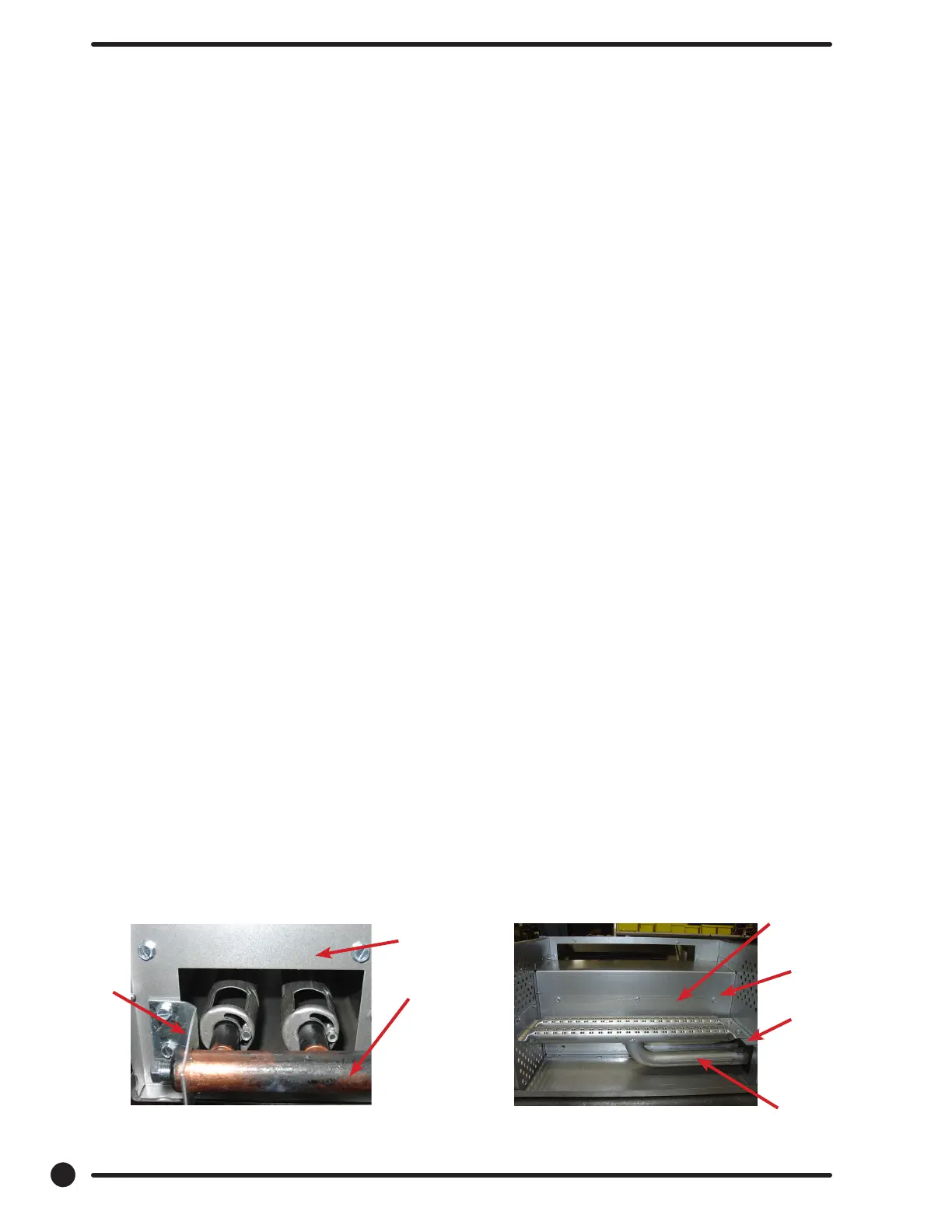

Burner Housing Group
Key Part Number Description Quantity
* 9803-220-001 Housing Assembly, Burner (1 thru 7) (Before Serial D1.19219.026) ............................2
* 9803-229-001 Houseing Assembly, Burner (4a,7a,8a,11,14-20,22) (After Serial D1.19219.026) ..........2
1 9454-831-001 Panel-Burner Front & Bottom ......................................... ......................................... 2
2 9454-826-001 Panel-Burner, Side LH .............................................................................................2
3 9454-790-001 Panel-Burner, Side RH ............................................................................................2
4 9049-080-001 Bael-Burner (Before Serial D1.19219.026) ..............................................................2
4a 9049-123-001 Bae-Burner (After Serial D1.19219.026) .................................................................1
5 9454-791-001 Panel-Burner, Top ...................................................................................................2
6 9074-307-001 Cover-Burner, Top ..................................................................................................2
7 9828-015-001 Connector Assembly-Burner (Before Serial D1.19219.026) ........................................2
* 9545-008-001 Screws-#10B X 1/4 .................................................................................................8
* 9545-008-006 Screws-#10AB x 3/8 .............................................................................................46
7a 9070-046-001 Connector, Burner (After Serial D1.19219.026) .........................................................1
* 9545-008-024 Screw-#10ABx3/8 .................................................................................................44
8 9452-729-001 Service Plate, Bae (Before Serial D1.19219.026) ...................................................2
8a 9452-850-001 Service Plate, Bae (After Serial D1.19219.026) .......................................................1
* 9636-241-001 Wrapper, Burner Housing - Inside (After Serial D1.19219.026) ..................................1
* 9636-242-001 Wrapper, Burner Housing - Outside (After Serial D1.19219.026) ................................1
* 9454-991-001 Panel-Burner, Back (After Serial D1.19219.026) ........................................................1
9 9545-008-001 Screw-#10B X 1/4 ...............................................................................................16
10 9003-220-001 Angle, Burner Support ...........................................................................................2
11 9048-020-001 Burner, Main .........................................................................................................2
* 9545-008-001 Screw 10B x1/4” ....................................................................................................8
12 9452-991-001 Service Burner Plate Front (New style)… ..................................................................2
13 9545-008-001 Screw 10B x1/4” ....................................................................................................8
14 9029-192-001 Bracket-High Limit ..................................................................................................1
* 9538-142-001 Spacer, Hi-Limit .....................................................................................................2
* 9545-045-007 Screw 8B x 3/4” ......................................................................................................2
15 9576-203-002 Thermostat, Hi-Limit .............................................................................................1
16 9074-336-001 Cover, Hi-Limit Stat (Before Serial D1.19219.026) .....................................................2
16a 9074-329-001 Cover, Hi-Limit (After Serial D1.19219.026) ...............................................................1
17 9875-002-003 Electrode Assy, Ignition .........................................................................................1
* 9545-045-001 Screw, Electrode Mtg 8B x 1/4” ...............................................................................2
18 9857-134-001 Control Assy, Gas, Honeywell .................................................................................2
18a 9857-192-001 Control Assy, Gas,White Rodgers (After Serial D1.19217.025) ....................................2
19 9381-012-001 Manifold, Assy .......................................................................................................1
* 9425-069-023 Orice, Burner-Natural #125 ...................................................................................2
* 9425-069-024 Orice, Burner-LP #49 ............................................................................................4
20 9029-175-001 Bracket, Manifold ...................................................................................................2
21 8615-104-038 Pipe Plug in end of Burner Manifold ........................................................................2
22 9576-207-008 Thermostat, Safety Shuto ....................................................................................1
* 9545-008-006 Screw ...................................................................................................................4
* 8665-073-045 Nipple 1/2” x 2 Black (Before Serial D1.19219.026) .............................................2
* 8655-073-041 Nipple 1/2” Black (After Serial D1.19219.026) ......................................................1
23 9825-061-001 Cover, Safety Stat .................................................................................................2
* 9732-102-011 Kit, LP Conversion Honeywell Kit .............................................................................2
* 9732-102-044 Kit, LP Conversion White Rogers Kit .......................................................................2
24 9838-018-001 Welded One Piece Gas Pipe Assembly .....................................................................1
25 9379-196-001 Valve, Gas Shut O (Optional) .................................................................................1
26 9452-730-001 Burner tube service plate (Old Style Burner) ............................................................2
9
10
8
11
2
20
19
88
Part # 8533-090-001 7/21
