15.2. COMMUNICATION CONNECTORS

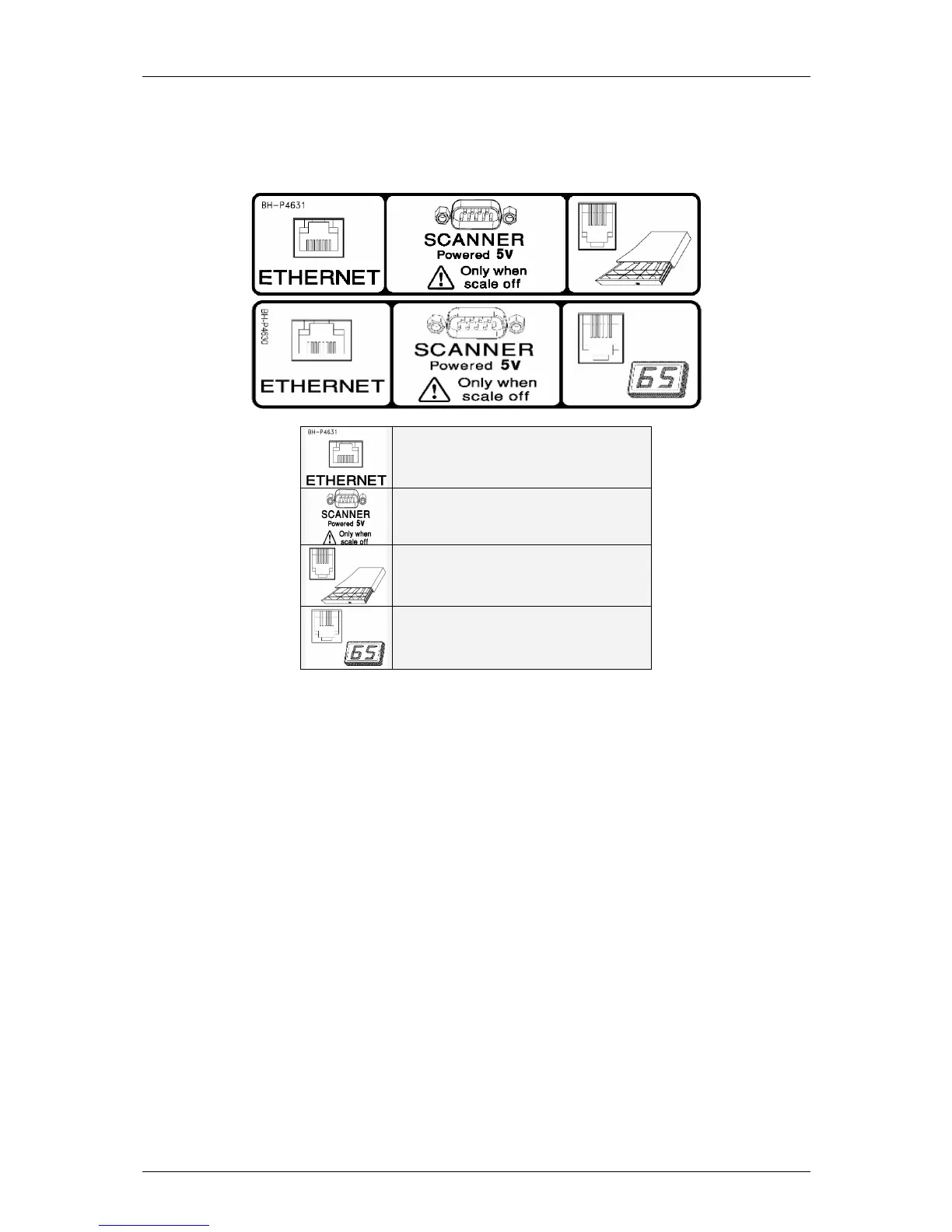

The communication connectors are located on the lower part of the scale. The arrangement and
characteristics of the connectors are as follows.
Connector marked as: ETHERNET
Ethernet Communication
Scanner connection*
Powered 5v
*Models: W-020, W-025, M-520 & M-525
Connector marked as: Drawer/Turnomatic
depending model.
Cash drawer
Turnomatic (in hanging models)
Conenctor marked as: Turnomatic
Turnomatic (in hanging models)
15.3. TURNOMATIC
The 500 Range hanging scales have the Turnomatic option.The scales connection is carried out by a RJJ
connector (telephone connector). The cable used will be three-way shielded,having into account the
following schematic connection.
Connector RJ11:
PIN Number
1------------------------------------------UP
5------------------------------------------DOWN
6------------------------------------------COMMON
2 & 4-------------------------------------N.C.
15.4. CASH DRAWER OPENING CABLE
As the same way as the turnomatic hanging scales, the opening drawer cable, the other modelos, use the
same RJ11 connector. Pin assignment is the following:
ConNector RJ11:
Pin Number
2----------------- GND (negative end of the electromagnet)
3----------------- Indication signal of open cash drawer.
4----------------- +24V (positive end of the electromagnet)
6----------------- Ground connection(
Indication signal of closed cash drawer .)
1 & 5---------------- N.C.
