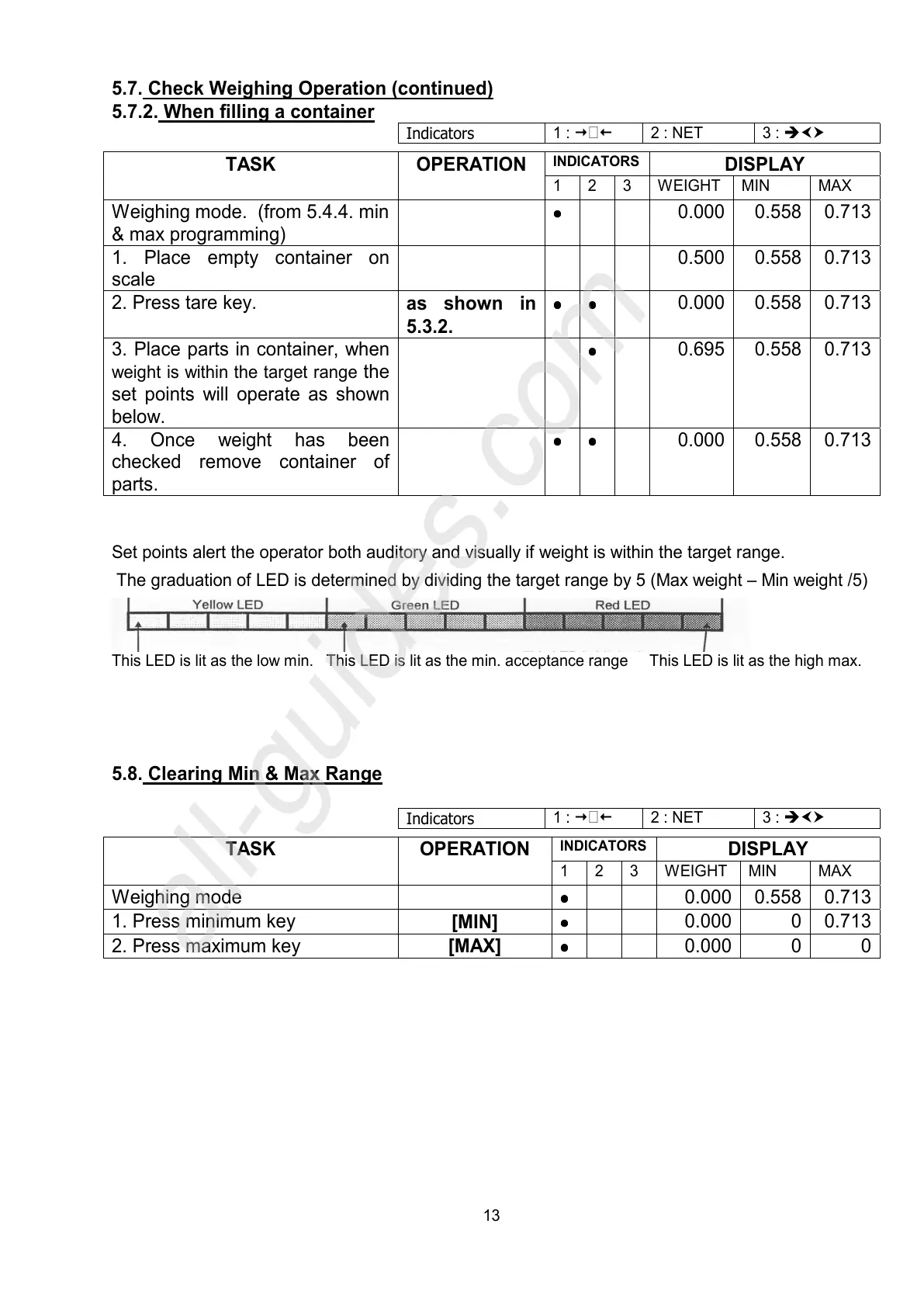

5.7. Check Weighing Operation (continued)
5.7.2. When filling a container
Indicators
1 : 2 : NET 3 : Îgh
INDICATORS
DISPLAY TASK OPERATION
1 2 3 WEIGHT MIN MAX
Weighing mode. (from 5.4.4. min
& max programming)
•
••
•
0.000 0.558 0.713
1. Place empty container on
scale
0.500 0.558 0.713
2. Press tare key.
as shown in
5.3.2.
•
••
• •
••
•
0.000 0.558 0.713
3. Place parts in container, when
weight is within the target range
the
set points will operate as shown
below.
•
••
•
0.695 0.558 0.713
4. Once weight has been
checked remove container of
parts.
•
••
• •
••
•
0.000 0.558 0.713
Set points alert the operator both auditory and visually if weight is within the target range.
The graduation of LED is determined by dividing the target range by 5 (Max weight – Min weight /5)
This LED is lit as the low min. This LED is lit as the min. acceptance range This LED is lit as the high max.
5.8. Clearing Min & Max Range
Indicators
1 : 2 : NET 3 : Îgh
INDICATORS
DISPLAY TASK OPERATION
1 2 3 WEIGHT MIN MAX
Weighing mode
•
••
•
0.000 0.558 0.713
1. Press minimum key
[MIN]
•
••
•
0.000 0 0.713
2. Press maximum key
[MAX]
•
••
•
0.000 0 0
