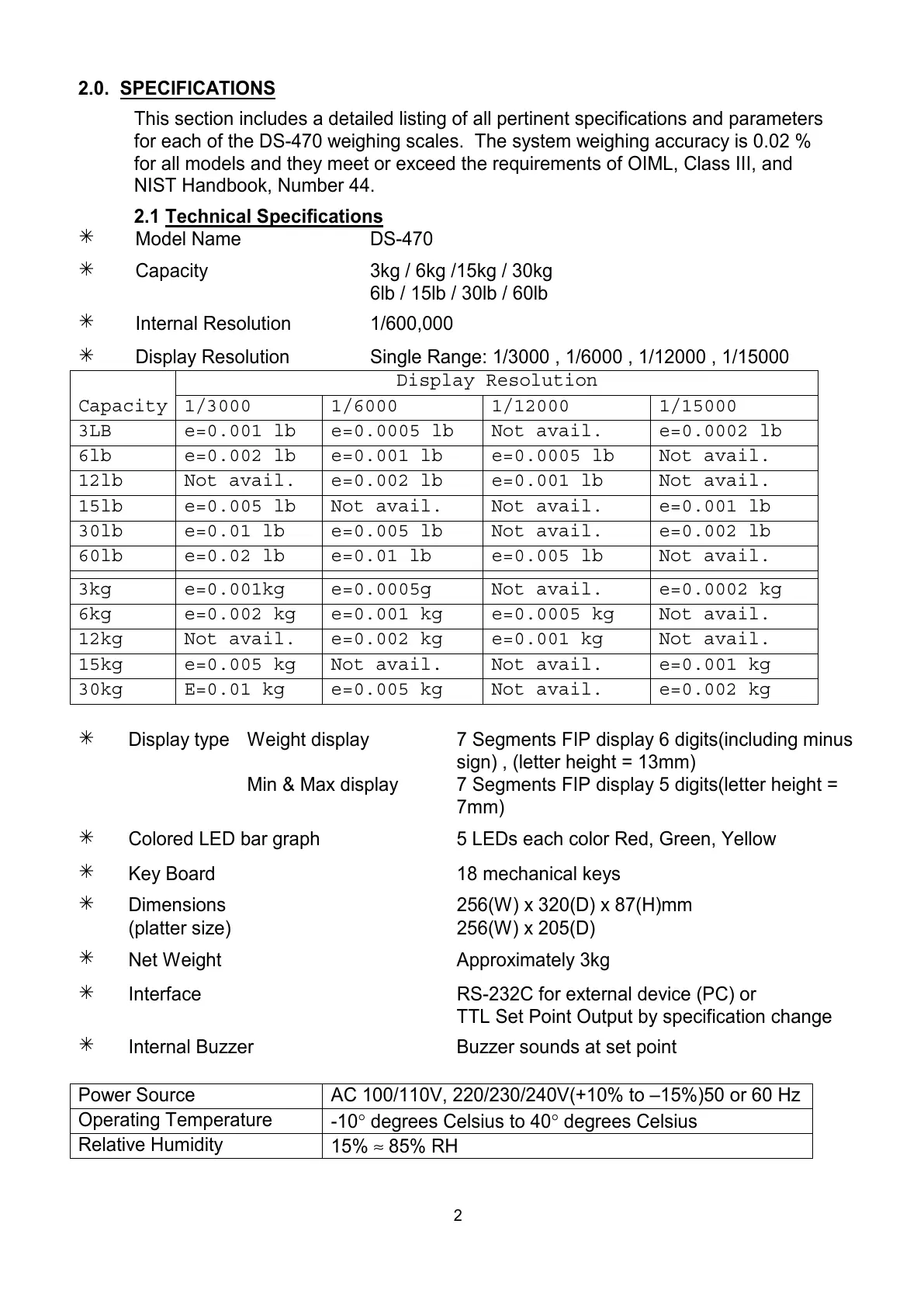

2.0. SPECIFICATIONS
This section includes a detailed listing of all pertinent specifications and parameters
for each of the DS-470 weighing scales. The system weighing accuracy is 0.02 %
for all models and they meet or exceed the requirements of OIML, Class III, and
NIST Handbook, Number 44.
2.1 Technical Specifications
Â
Model Name DS-470
Â
Capacity 3kg / 6kg /15kg / 30kg
6lb / 15lb / 30lb / 60lb
Â
Internal Resolution 1/600,000
Â
Display Resolution Single Range: 1/3000 , 1/6000 , 1/12000 , 1/15000
Display Resolution
Capacity 1/3000 1/6000 1/12000 1/15000
3LB e=0.001 lb e=0.0005 lb Not avail. e=0.0002 lb
6lb e=0.002 lb e=0.001 lb e=0.0005 lb Not avail.
12lb Not avail. e=0.002 lb e=0.001 lb Not avail.
15lb e=0.005 lb Not avail. Not avail. e=0.001 lb
30lb e=0.01 lb e=0.005 lb Not avail. e=0.002 lb
60lb e=0.02 lb e=0.01 lb e=0.005 lb Not avail.
3kg e=0.001kg e=0.0005g Not avail. e=0.0002 kg
6kg e=0.002 kg e=0.001 kg e=0.0005 kg Not avail.
12kg Not avail. e=0.002 kg e=0.001 kg Not avail.
15kg e=0.005 kg Not avail. Not avail. e=0.001 kg
30kg E=0.01 kg e=0.005 kg Not avail. e=0.002 kg
Â
Display type Weight display 7 Segments FIP display 6 digits(including minus
sign) , (letter height = 13mm)
Min & Max display 7 Segments FIP display 5 digits(letter height =
7mm)
Â
Colored LED bar graph 5 LEDs each color Red, Green, Yellow
Â
Key Board 18 mechanical keys
Â
Dimensions 256(W) x 320(D) x 87(H)mm
(platter size) 256(W) x 205(D)
Â
Net Weight Approximately 3kg
Â
Interface RS-232C for external device (PC) or
TTL Set Point Output by specification change
Â
Internal Buzzer Buzzer sounds at set point
Power Source AC 100/110V, 220/230/240V(+10% to –15%)50 or 60 Hz
Operating Temperature
-10° degrees Celsius to 40° degrees Celsius
Relative Humidity
15% ≈ 85% RH
