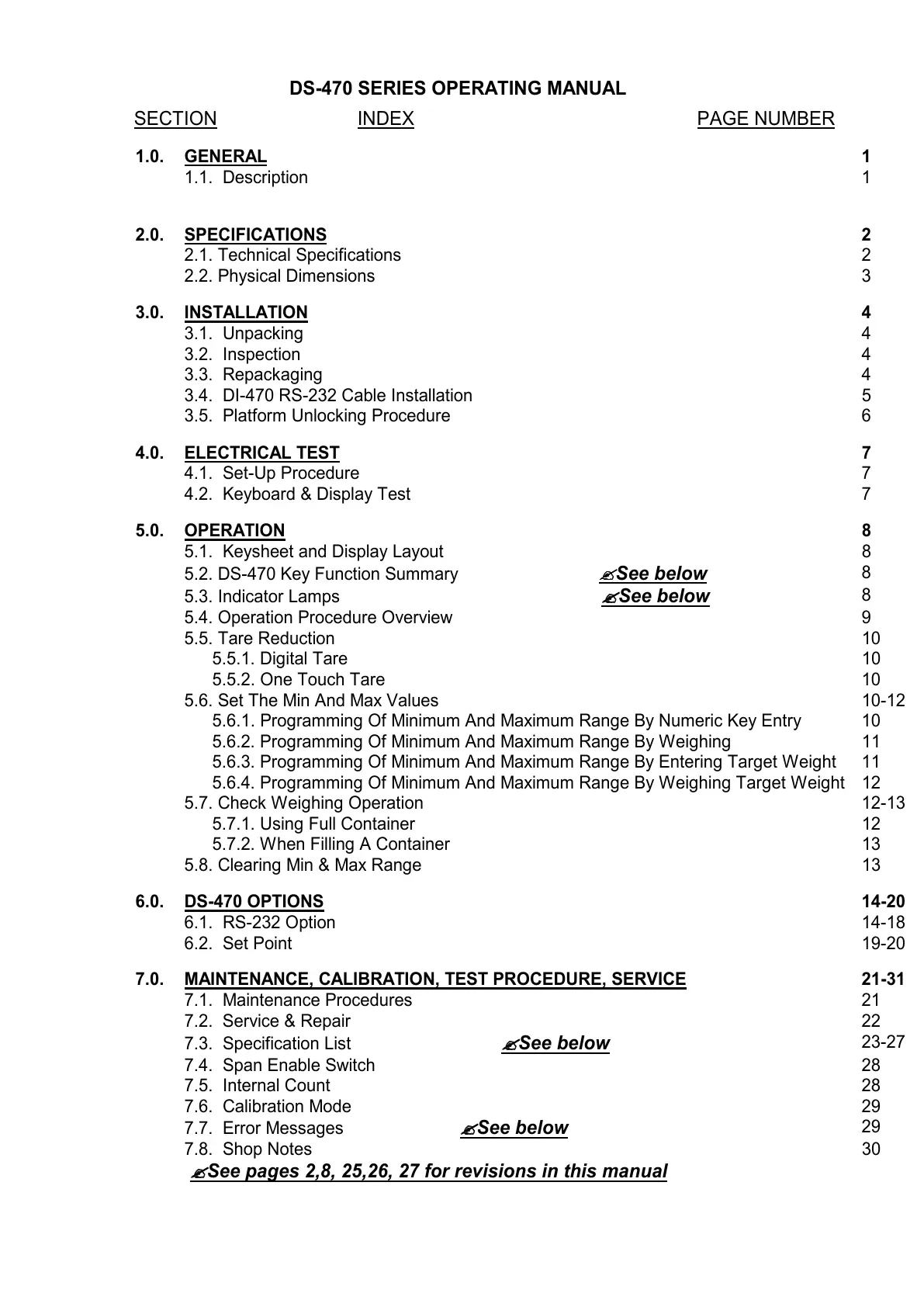

DS-470 SERIES OPERATING MANUAL
SECTION INDEX PAGE NUMBER
1.0. GENERAL 1
1.1. Description 1
2.0. SPECIFICATIONS 2
2.1. Technical Specifications 2
2.2. Physical Dimensions 3
3.0. INSTALLATION 4
3.1. Unpacking 4
3.2. Inspection 4
3.3. Repackaging 4
3.4. DI-470 RS-232 Cable Installation 5
3.5. Platform Unlocking Procedure 6
4.0. ELECTRICAL TEST 7
4.1. Set-Up Procedure 7
4.2. Keyboard & Display Test 7
5.0. OPERATION 8
5.1. Keysheet and Display Layout 8
5.2. DS-470 Key Function Summary
"
""
"
See below
8
5.3. Indicator Lamps
"
""
"
See below
8
5.4. Operation Procedure Overview 9
5.5. Tare Reduction 10
5.5.1. Digital Tare 10
5.5.2. One Touch Tare 10
5.6. Set The Min And Max Values 10-12
5.6.1. Programming Of Minimum And Maximum Range By Numeric Key Entry 10
5.6.2. Programming Of Minimum And Maximum Range By Weighing 11
5.6.3. Programming Of Minimum And Maximum Range By Entering Target Weight 11
5.6.4. Programming Of Minimum And Maximum Range By Weighing Target Weight 12
5.7. Check Weighing Operation 12-13
5.7.1. Using Full Container 12
5.7.2. When Filling A Container 13
5.8. Clearing Min & Max Range 13
6.0. DS-470 OPTIONS 14-20
6.1. RS-232 Option 14-18
6.2. Set Point 19-20
7.0. MAINTENANCE, CALIBRATION, TEST PROCEDURE, SERVICE 21-31
7.1. Maintenance Procedures 21
7.2. Service & Repair 22
7.3. Specification List
"
""
"
See below
23-27
7.4. Span Enable Switch 28
7.5. Internal Count 28
7.6. Calibration Mode 29
7.7. Error Messages
"
""
"
See below
29
7.8. Shop Notes 30
"
""
"
See pages 2,8, 25,26, 27 for revisions in this manual
