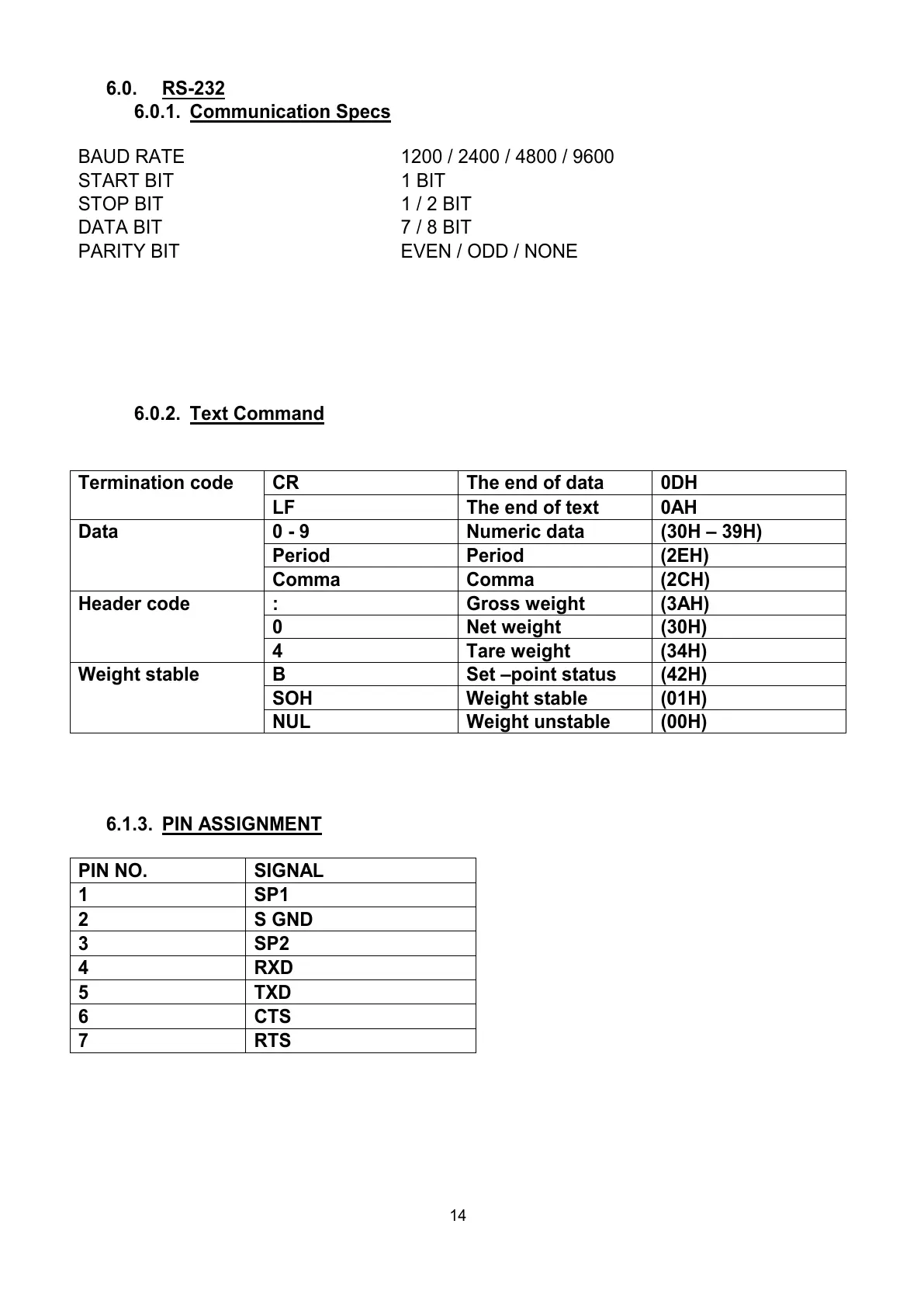

6.0. RS-232
6.0.1. Communication Specs
BAUD RATE 1200 / 2400 / 4800 / 9600
START BIT 1 BIT
STOP BIT 1 / 2 BIT
DATA BIT 7 / 8 BIT
PARITY BIT EVEN / ODD / NONE
6.0.2. Text Command
CR The end of data 0DH Termination code
LF The end of text 0AH
0 - 9 Numeric data (30H – 39H)
Period Period (2EH)
Data
Comma Comma (2CH)
: Gross weight (3AH)
0 Net weight (30H)
Header code
4 Tare weight (34H)
B Set –point status (42H)
SOH Weight stable (01H)
Weight stable
NUL Weight unstable (00H)
6.1.3. PIN ASSIGNMENT
PIN NO. SIGNAL
1 SP1
2 S GND
3 SP2
4 RXD
5 TXD
6 CTS
7 RTS
